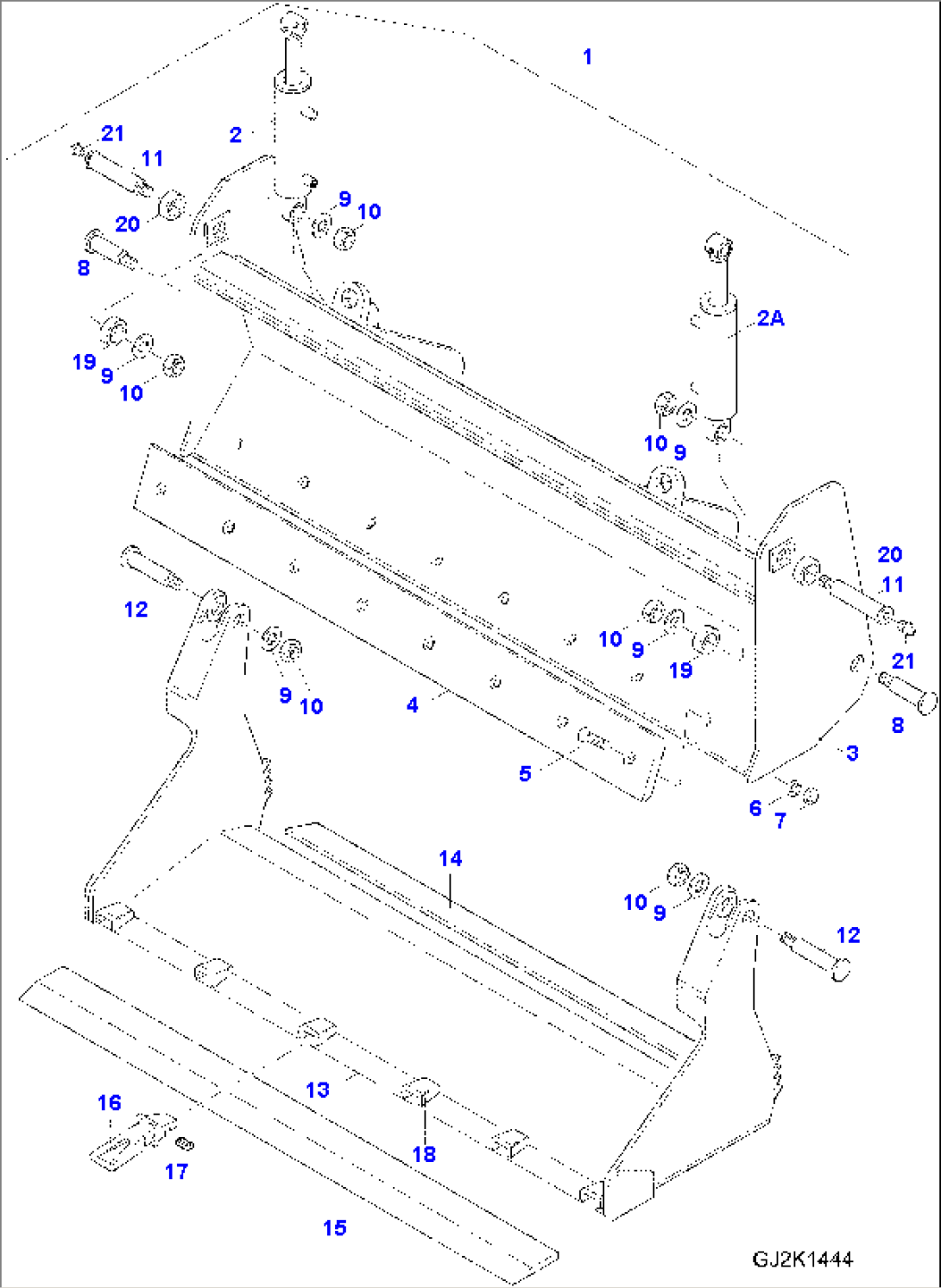

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42T-70-22080 | GRAB BUCKET | ||
| 2 | 42U-70-H0R17 | HYDR. CYLINDER | ||
| 2A | 42U-70-H0R17 | HYDR. CYLINDER | ||
| 3 | 42U-70-H0R33 | BACKPLATE | ||
| 4 | 42U-70-H0R23 | CUTTING EDGE | ||
| 5 | 42U-70-H0P03 | SCREW | ||
| 6 | 42Y-00-H0530 | SPRING WASHER | ||
| 7 | 01580-11613 | NUT | ||
| 8 | 42U-70-H0P05 | PIN | ||
| 9 | 42U-70-H0P06 | PLAIN WASHER | ||
| 10 | 42U-70-H0R21 | NUT | ||
| 11 | 42U-70-H0P08 | PIN | ||
| 12 | 42U-70-H0P09 | PIN | ||
| 13 | 42U-70-H0R32 | GRAB JAW | ||
| 14 | 42U-70-H0R34 | CUTTING EDGE | ||
| 15 | 42U-70-H0R29 | CUTTING EDGE | ||
| 16 | 42U-70-H0P13 | RIPPER TOOTH | ||
| 17 | 42U-70-H0P14 | SAFETY PLUG | ||
| 18 | 42U-70-H0P15 | SLEEVE | ||
| 19 | 42U-70-H0P16 | BUSHING | ||
| 20 | 42U-70-H0P16 | BUSHING | ||
| 21 | 42U-70-H0P18 | LUBRICATION NIPPLE |
