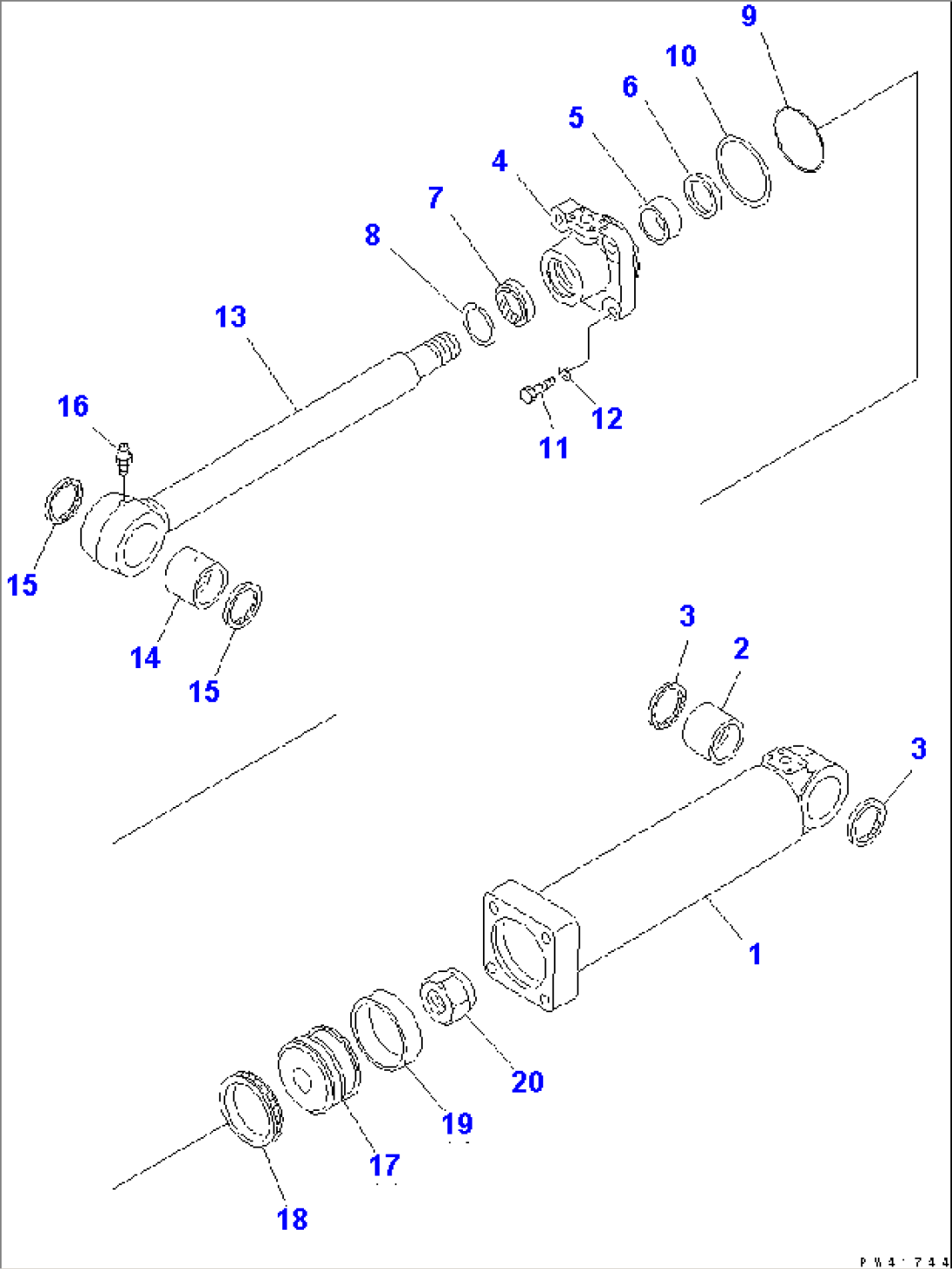

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-14011 | CYLINDER ASS'Y | 10001- | ||
| 1 | 707-13-14020 | CYLINDER | 10001- | |
| 2 | 07143-10707 | BUSHING | 10001- | |
| 3 | 07145-00075 | SEAL,DUST | 10001- | |
| 4 | 707-27-14290 | HEAD,CYLINDER | 10001- | |
| 5 | 07177-07030 | BUSHING | 10001- | |
| 6 | 707-51-70030 | PACKING,ROD | 10001- | |
| 7 | 144-63-95170 | SEAL,DUST | 10001- | |
| 8 | 707-75-70010 | RING,SNAP | 10001- | |
| 9 | 07000-12135 | O-RING | 10001- | |
| 10 | 07146-02136 | RING,BACK-UP | 10001- | |
| 11 | 01010-82475 | BOLT | 10001- | |
| 12 | 01602-22472 | WASHER,SPRING | 10001- | |
| 13 | 707-58-70030 | ROD,PISTON | 10001- | |
| 14 | 07144-10707 | BUSHING | 10001- | |
| 15 | 07145-00075 | SEAL,DUST | 10001- | |
| 16 | 07020-00000 | FITTING,GREASE | 10001- | |
| 17 | 707-36-14180 | PISTON | 10001- | |
| 18 | 707-44-14180 | RING,PISTON | .- | |
| \1\707-44-14080 | RING,PISTON | 10001-. | ||
| 19 | 07155-01435 | RING,WEAR | 10001- | |
| 20 | 07165-15252 | NUT,NYLON | 10001- |
