| Item | Part No. | Part Name | Qty | Serial No. |

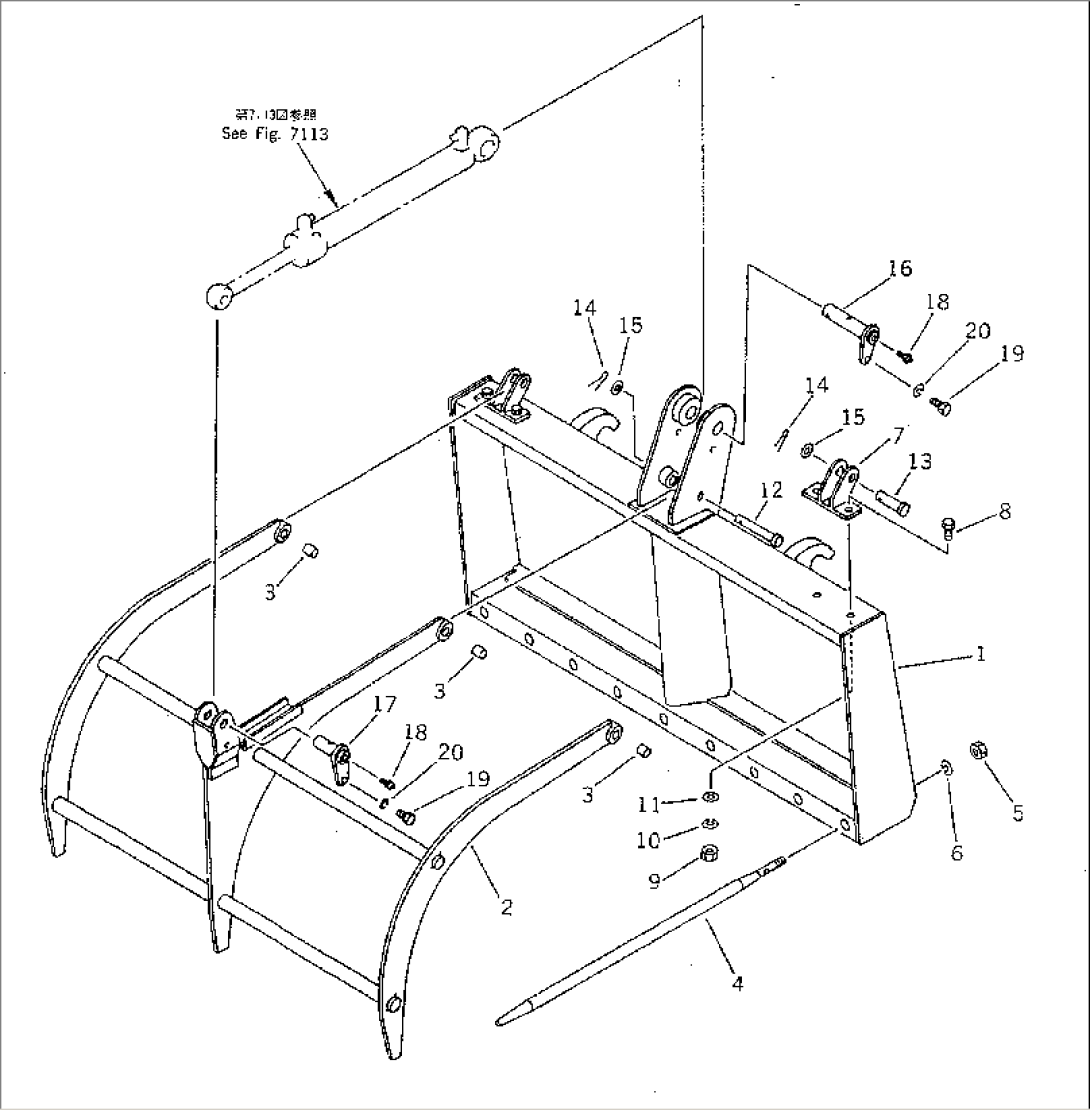

| FF7829-13100 | FORK ASS'Y,GRAPPLE | 3001- | ||
| 1 | FF7829-13110 | BODY | 3001- | |
| 2 | FF7829-13120 | ARM,GRAPPLE | 3001- | |
| 3 | WB8710-46220 | BUSHING | 3001- | |
| 4 | FF7829-13130 | FORK | 3001- | |
| 5 | 01580-12016 | NUT | 3001- | |
| 6 | 01602-22060 | WASHER,SPRING | 3001- | |
| 7 | FF7829-13140 | BRACKET | 3001- | |
| 8 | 01010-51230 | BOLT | 3001- | |
| 9 | 01580-11210 | NUT | 3001- | |
| 10 | 01602-21236 | WASHER,SPRING | 3001- | |
| 11 | 01640-21223 | WASHER | 3001- | |
| 12 | FF7829-13150 | PIN | 3001- | |
| 13 | 04205-11650 | PIN | 3001- | |
| 14 | 04050-14025 | PIN,COTTER | 3001- | |
| 15 | 01641-21626 | WASHER | 3001- | |
| 16 | FF7820-70320 | PIN | 3001- | |
| 17 | FF7820-70310 | PIN | 3001- | |
| 18 | 07020-00000 | FITTING,GREASE | 3001- | |
| 19 | 01010-50816 | BOLT | 3001- | |
| 20 | 01602-20825 | WASHER,SPRING | 3001- |
