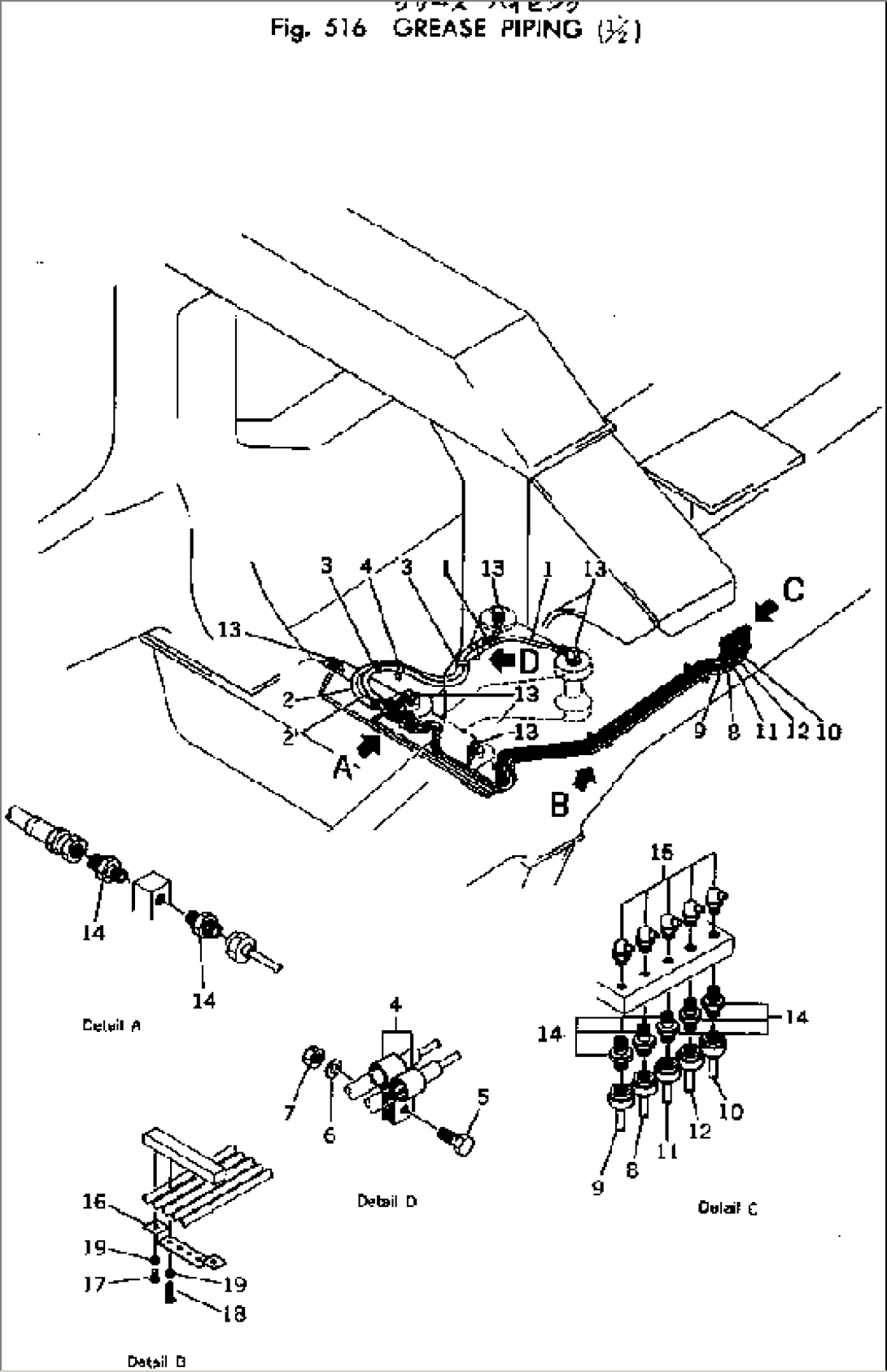

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-52-13110 | HOSE | 1101- | |
| 2 | 281-35-18250 | TUBE | 1101- | |
| 3 | 08034-00414 | BAND | 1101- | |
| 4 | 08036-01414 | CLIP | 1101- | |
| 5 | 01010-51020 | BOLT | 1101- | |
| 6 | 01602-21030 | WASHER | 1101- | |
| 7 | 01580-01008 | NUT | 1101- | |
| 8 | 561-52-32230 | TUBE | 1101- | |
| 9 | 561-52-32240 | TUBE | 1101- | |
| 10 | 561-52-32250 | TUBE | 1101- | |
| 11 | 561-52-32260 | TUBE | 1101- | |
| 12 | 561-52-32270 | TUBE | 1101- | |
| 13 | 566-35-12260 | ELBOW | 1101- | |
| 14 | 07213-50610 | CONNECTOR | 1101- | |
| 15 | 07020-00675 | FITTING | 1101- | |
| 16 | 07066-00605 | CLIP | 1101- | |
| 17 | 01220-40408 | SCREW | 1101- | |
| 18 | 01220-40416 | SCREW | 1101- | |
| 19 | 01601-00410 | WASHER | 1101- |
