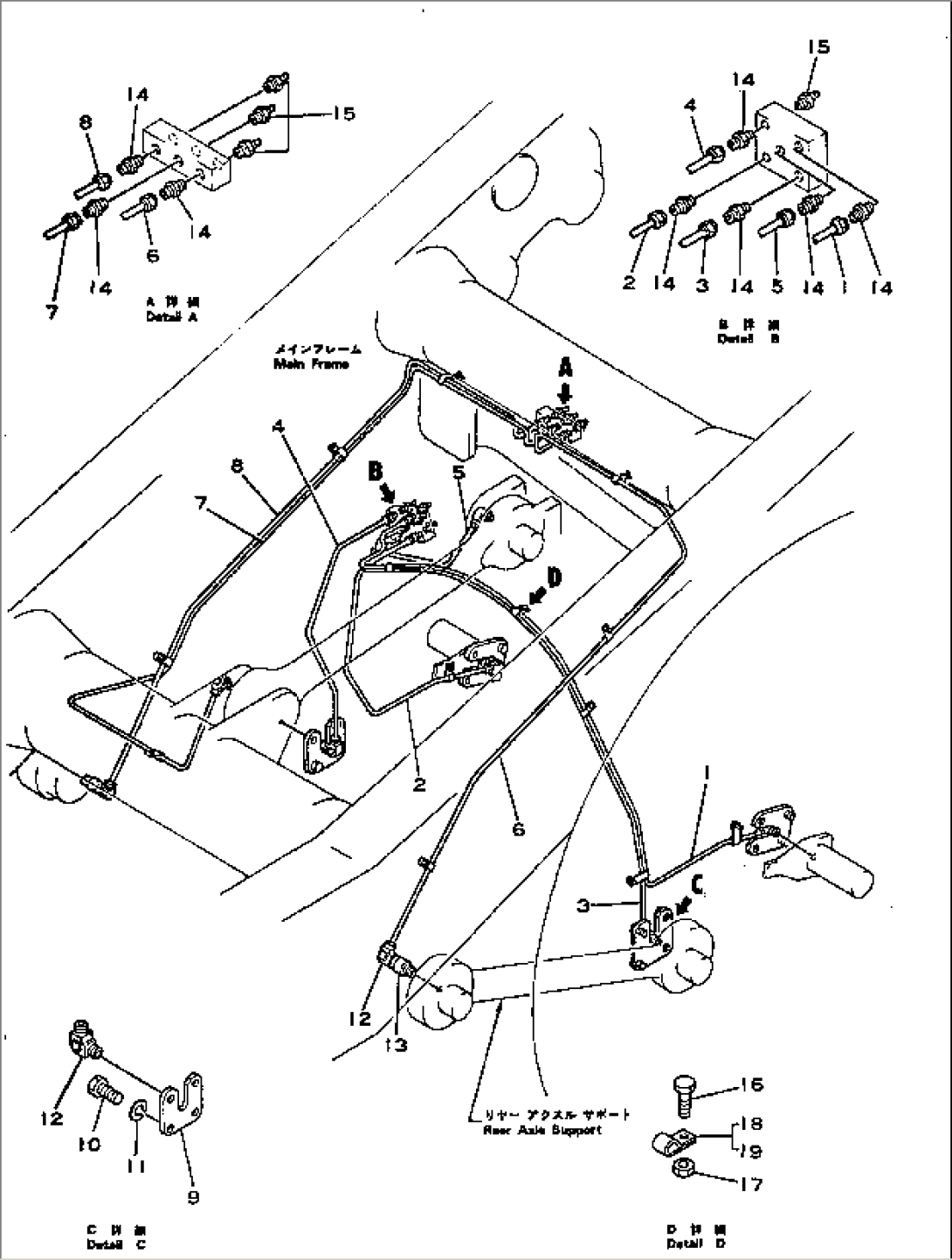

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-52-12110 | TUBE | 1002- | |
| 2 | 566-52-12120 | TUBE | 1002- | |
| 3 | 566-52-12130 | TUBE | 1002- | |
| 4 | 566-52-12140 | TUBE | 1002- | |
| 5 | 566-52-12150 | TUBE | 1002- | |
| 6 | 566-52-12160 | TUBE | 1002- | |
| 7 | 566-52-12170 | TUBE | 1002- | |
| 8 | 566-52-12180 | TUBE | 1002- | |
| 9 | 566-52-12190 | PLATE | 1002- | |
| 10 | 01010-51245 | BOLT | 1002- | |
| 11 | 01602-21242 | WASHER | 1002- | |
| 12 | 566-35-12260 | ELBOW | 1002- | |
| 13 | 566-52-12210 | NIPPLE | 1002- | |
| 14 | 07213-50610 | CONNECTOR | 1002- | |
| 15 | 07020-00000 | FITTING | 1002- | |
| 16 | 01010-51020 | BOLT | 1002- | |
| 17 | 01602-21030 | WASHER | 1002- | |
| 18 | 08036-10610 | CLIP | 1002- | |
| 19 | 08036-11214 | CLIP | 1002- |
