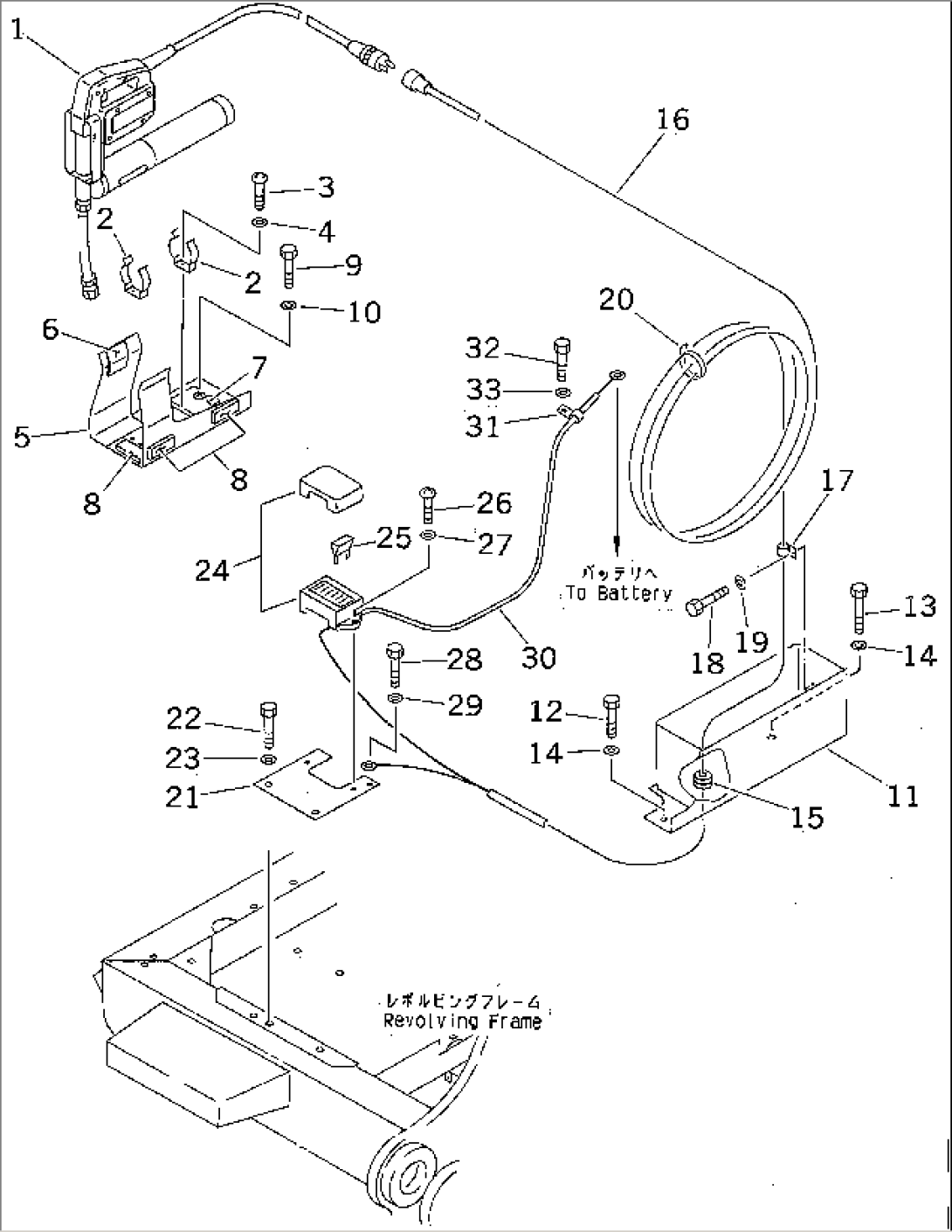

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (208-98-31211) | PUMP ASS'Y,(SEE FIG.Y1980-01A0) | 10001- | |
| 2 | 208-54-31280 | CLAMP | 10001- | |
| 3 | 01220-40612 | SCREW | 10001- | |
| 4 | 01641-20608 | WASHER | 10001- | |
| 5 | 207-54-61811 | BRACKET | 10228- | |
| 5 | 207-54-61810 | BRACKET | 10001-10227 | |
| 6 | 207-54-52440 | SHEET | 10001- | |
| 7 | 207-54-61830 | SHEET | 10001- | |
| 8 | 207-54-61840 | SHEET | 10001- | |
| 9 | 01010-81225 | BOLT | 10384- | |
| 9 | 01010-51225 | BOLT | 10001-10383 | |
| 10 | 01643-31232 | WASHER | 10001- | |
| 11 | 207-54-61820 | CASE | 10001- | |
| 12 | 01010-81225 | BOLT | 10384- | |
| 12 | 01010-51225 | BOLT | 10001-10383 | |
| 13 | 01010-81250 | BOLT | 10384- | |
| 13 | 01010-51250 | BOLT | 10001-10383 | |
| 14 | 01643-31232 | WASHER | 10001- | |
| 15 | 08037-02512 | GROMMET | 10001- | |
| 16 | 208-06-31140 | WIRING HARNESS | 10001- | |
| 17 | 08036-01014 | CLIP | 10001- | |
| 18 | 01010-81225 | BOLT | 10384- | |
| 18 | 01010-51225 | BOLT | 10001-10383 | |
| 19 | 01643-31232 | WASHER | 10001- | |
| 20 | 20Y-06-24320 | BAND | 10001- | |
| 21 | 207-06-61710 | BRACKET | 10001- | |
| 22 | 01010-81225 | BOLT | 10384- | |
| 22 | 01010-51225 | BOLT | 10001-10383 | |
| 23 | 01643-31232 | WASHER | 10001- | |
| 24 | 205-06-71480 | FUSE BOX | 10001- | |
| 25 | 22W-06-13160 | FUSE, 20A | 10001- | |
| 26 | 01220-40620 | SCREW | 10001- | |
| 27 | 01643-30623 | WASHER | 10001- | |
| 28 | 01010-80610 | BOLT | 10384- | |
| 28 | 01010-50610 | BOLT | 10001-10383 | |
| 29 | 01643-30623 | WASHER | 10001- | |
| 30 | 207-06-61720 | WIRING HARNESS | 10001- | |
| 31 | 08036-00814 | CLIP | 10001- | |
| 32 | 01010-81225 | BOLT | 10384- | |
| 32 | 01010-51225 | BOLT | 10001-10383 | |
| 33 | 01643-31232 | WASHER | 10001- |
