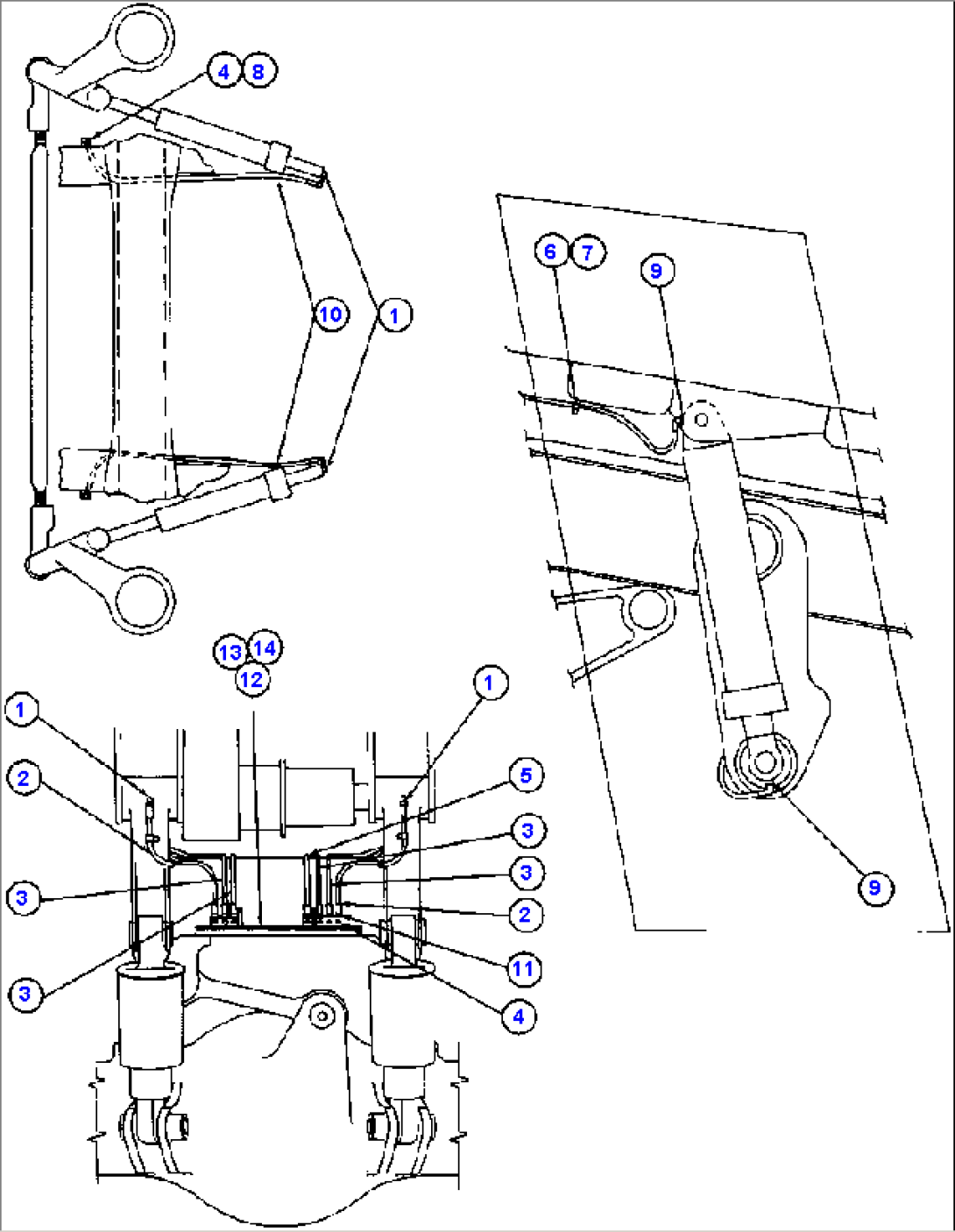

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB0032 | FITTING - 90 DEG | ||
| 2 | HA6070 | HOSE | ||
| 3 | HA6067 | HOSE | ||
| 4 | C0315 | FITTING, GREASE | ||
| 5 | HA6072 | HOSE | ||
| 6 | VN9907 | CLAMP | ||
| 7 | TG9225 | LOCKNUT - 3/8" - 16NC | ||
| 8 | WB0003 | FITTING, STRAIGHT | ||
| 9 | WB0001 | FITTING, STRAIGHT | ||
| 10 | HA6068 | HOSE | ||
| 11 | WB0031 | FITTING - 90 DEG | ||
| 12 | TZ9844 | BRACKET | ||
| 13 | C1612 | CAPSCREW - 1/2" - 13NC X 1" | ||
| 14 | C1540 | LOCKWASHER - 1/2" |
