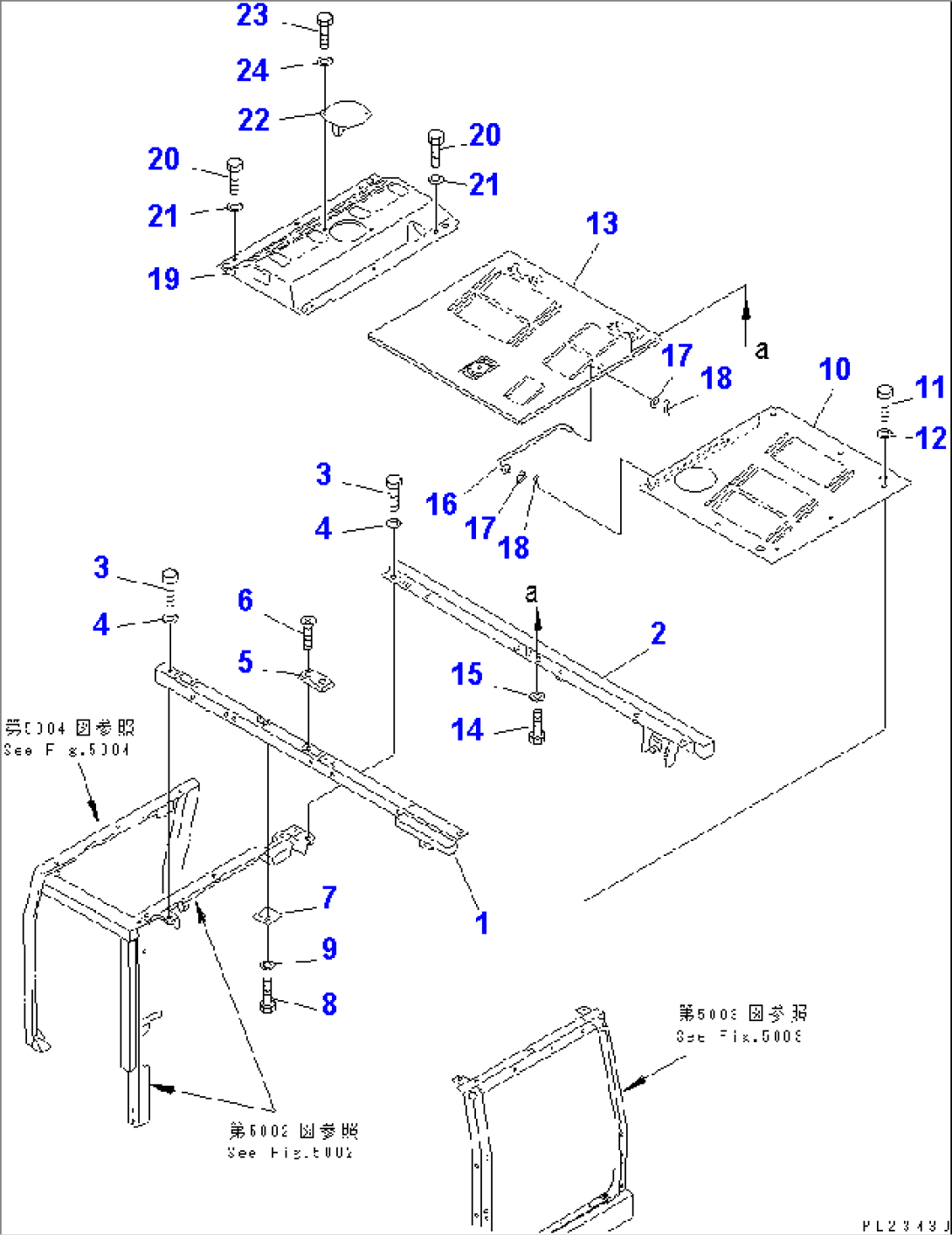

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-54-19660 | FRAME | 1002- | |
| 2 | 20Y-54-21620 | FRAME | 1002- | |
| 3 | 01010-51230 | BOLT | 1002- | |
| 4 | 01643-31232 | WASHER | 1002- | |
| 5 | 205-54-68440 | PLATE | 1002- | |
| 6 | 01224-40616 | SCREW | 1002- | |
| 7 | 205-54-75860 | BRACKET | 1002- | |
| 8 | 01010-51030 | BOLT | 1002- | |
| 9 | 01643-31032 | WASHER | 1002- | |
| 10 | 8232-54-1640 | COVER | 1034- | |
| 20Y-54-12163 | COVER | 1002-1033 | ||
| 11 | 01010-51230 | BOLT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- | |
| 13 | 20Y-54-12133 | COVER | 1002- | |
| 14 | 01010-51225 | BOLT | 1002- | |
| 15 | 01643-31232 | WASHER | 1002- | |
| 16 | 20Y-54-12152 | BAR | 1002- | |
| 17 | 04050-13018 | PIN,COTTER | 1002- | |
| 18 | 01643-31032 | WASHER | 1002- | |
| 19 | 206-54-51114 | COVER | 1002- | |
| 20 | 01010-51230 | BOLT | 1002- | |
| 21 | 01643-31232 | WASHER | 1002- | |
| 22 | 206-54-51181 | PLATE | 1002- | |
| 23 | 01010-51220 | BOLT | 1002- | |
| 24 | 01643-31232 | WASHER | 1002- |
