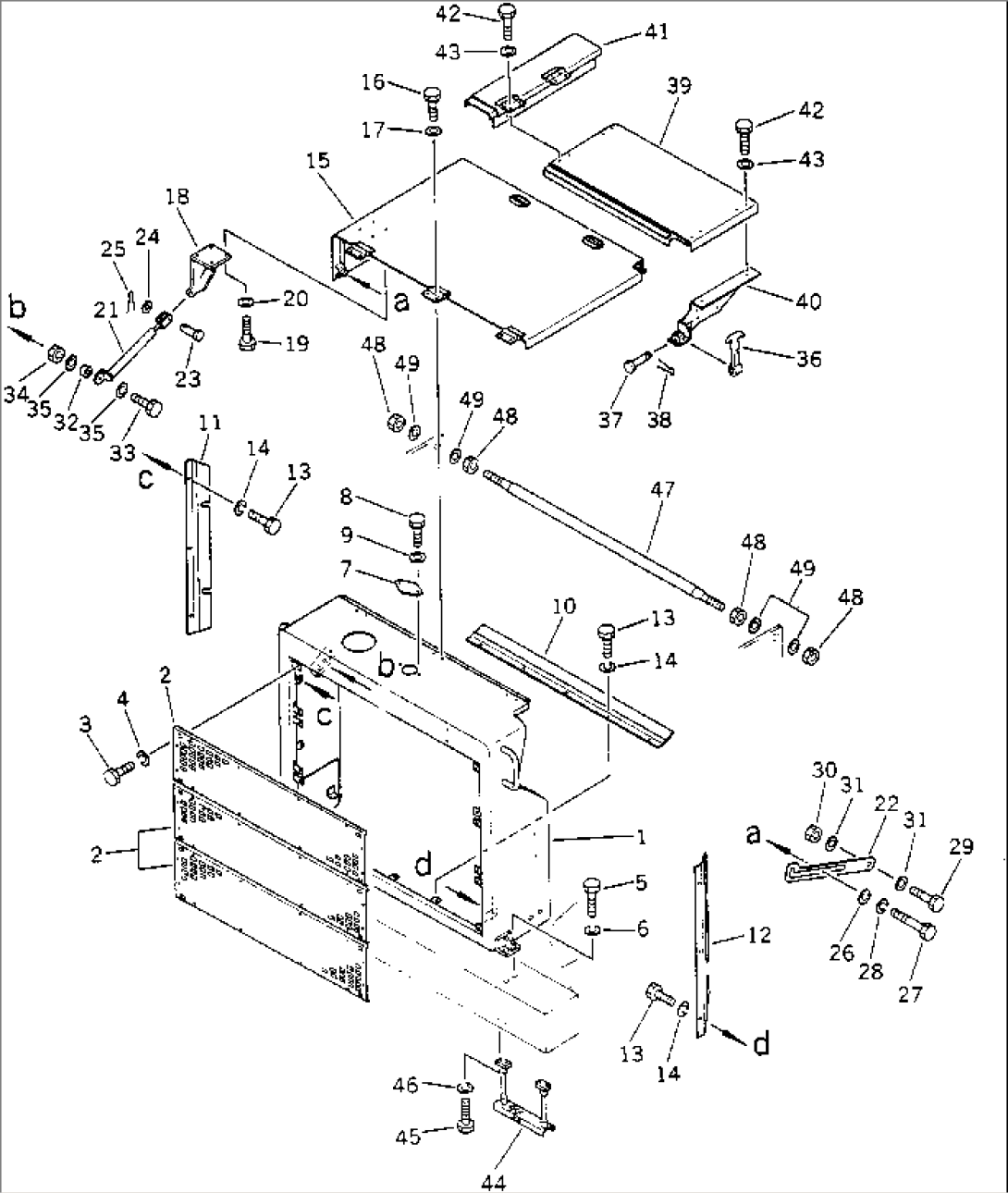

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-41111 | GUARD | 1501- | |
| 2 | 566-54-41123 | GRILLE | 1501- | |
| 3 | 01010-51225 | BOLT | 1501- | |
| 4 | 01643-31232 | WASHER | 1501- | |
| 4 | 01643-31645 | WASHER | 1500-1500 | |
| 5 | 01010-51635 | BOLT | 1501- | |
| 6 | 01643-31645 | WASHER | 1501- | |
| 7 | 566-54-41190 | COVER | 1501- | |
| 8 | 01010-51020 | BOLT | 1501- | |
| 9 | 01643-31032 | WASHER | 1501- | |
| 10 | 566-54-41851 | BAFFLE | 1501- | |
| 11 | 566-54-41861 | BAFFLE | 1501- | |
| 12 | 566-54-41871 | BAFFLE | 1501- | |
| 13 | 01010-51225 | BOLT | 1501- | |
| 14 | 01602-21236 | WASHER,SPRING | 1501- | |
| 15 | 566-54-41132 | HOOD,FRONT | 1501- | |
| 16 | 01010-51025 | BOLT | 1501- | |
| 17 | 01643-31032 | WASHER | 1501- | |
| 18 | 569-54-41150 | BRACKET | 1501- | |
| 19 | 01010-51025 | BOLT | 1501- | |
| 20 | 01643-31032 | WASHER | 1501- | |
| 21 | 437-54-12240 | SPRING | 1501- | |
| 22 | 566-54-41690 | STAY | 1501- | |
| 23 | 04205-10620 | PIN | 1501- | |
| 24 | 01641-20608 | WASHER | 1501- | |
| 25 | 04050-11612 | PIN,COTTER | 1501- | |
| 26 | 281-40-13570 | WASHER | 1501- | |
| 27 | 01010-50820 | BOLT | 1501- | |
| 28 | 01602-20825 | WASHER,SPRING | 1501- | |
| 29 | 01010-51450 | BOLT | 1501- | |
| 30 | 01580-11411 | NUT | 1501- | |
| 31 | 01643-31445 | WASHER | 1501- | |
| 32 | 569-54-41180 | COLLAR | 1501- | |
| 33 | 01010-50820 | BOLT | 1501- | |
| 34 | 01580-10806 | NUT | 1501- | |
| 35 | 01643-30823 | WASHER | 1501- | |
| 36 | 09450-00000 | CATCH | 1501- | |
| 37 | 09450-00002 | PIN | 1501- | |
| 38 | 04050-11610 | PIN,COTTER | 1501- | |
| 39 | 566-54-41141 | HOOD,REAR | 1501- | |
| 40 | 566-54-41153 | BRACKET | 1501- | |
| 41 | 566-54-41280 | BRACKET | 1501- | |
| 42 | 01010-51025 | BOLT | 1501- | |
| 43 | 01643-31032 | WASHER | 1501- | |
| 44 | 566-54-11372 | STEP | 1501- | |
| 45 | 01010-51030 | BOLT | 1501- | |
| 46 | 01643-31032 | WASHER | 1501- | |
| 47 | 569-54-41490 | ROD | 1501- | |
| 48 | 01580-12016 | NUT | 1501- | |
| 49 | 01643-32060 | WASHER | 1501- |
