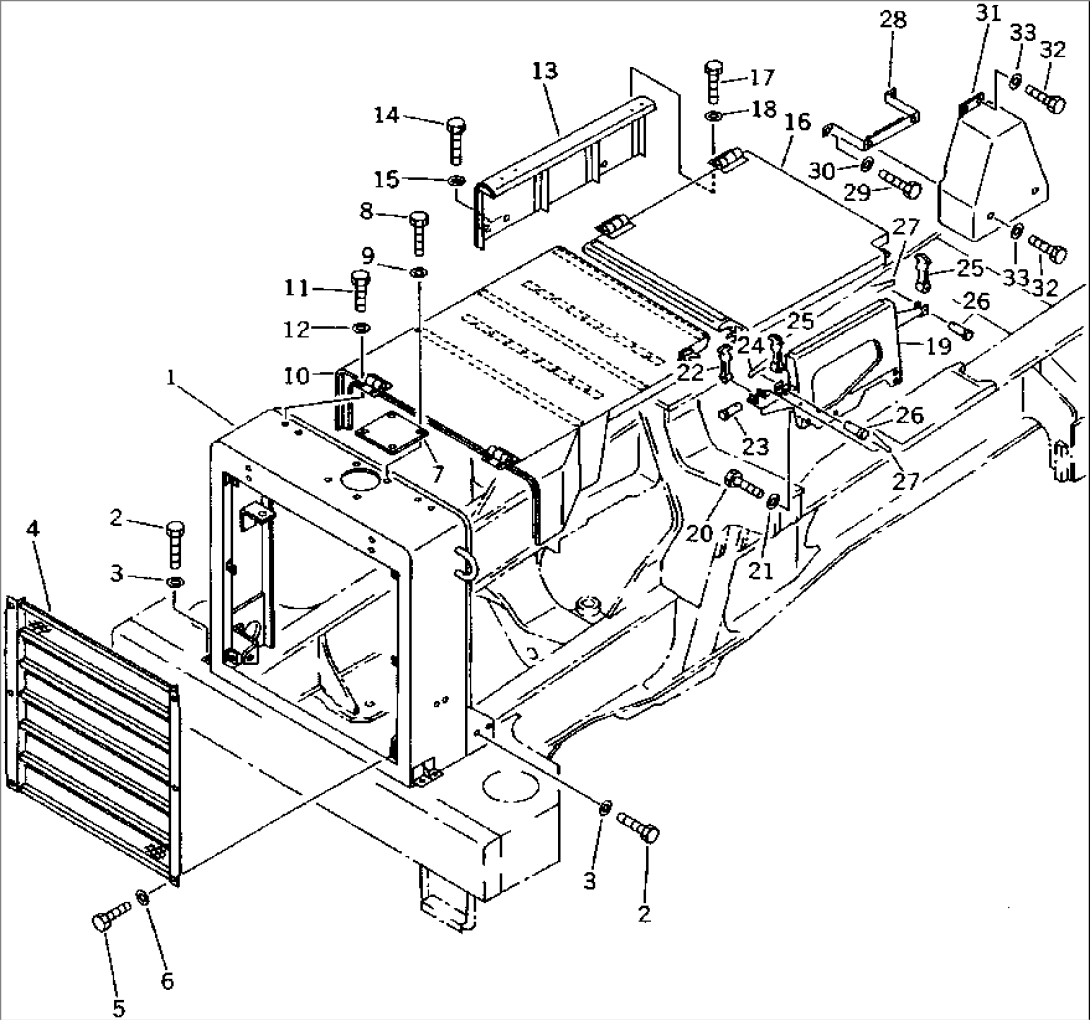

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-54-41114 | GUARD | 1266- | |
| 2 | 01010-51630 | BOLT | 1003- | |
| 3 | 01643-31645 | WASHER | 1003- | |
| 4 | 567-54-41131 | GRILLE | 1003- | |
| 5 | 01010-51225 | BOLT | 1003- | |
| 6 | 01643-31232 | WASHER | 1003- | |
| 7 | 581-54-12790 | PLATE | 1003- | |
| 8 | 01010-51025 | BOLT | 1003- | |
| 9 | 01643-31032 | WASHER | 1003- | |
| 10 | 567-54-41213 | HOOD,FRONT | 1266- | |
| 11 | 01010-51025 | BOLT | 1003- | |
| 12 | 01643-31032 | WASHER | 1003- | |
| 13 | 567-54-41231 | BRACKET | 1266- | |
| 14 | 01010-51225 | BOLT | 1003- | |
| 15 | 01643-31232 | WASHER | 1003- | |
| 16 | 567-54-41222 | HOOD,REAR | 1266- | |
| 17 | 01010-51025 | BOLT | 1003- | |
| 18 | 01643-31032 | WASHER | 1003- | |
| 19 | 567-54-61242 | BRACKET | 1266- | |
| 20 | 01010-51225 | BOLT | 1003- | |
| 21 | 01643-31232 | WASHER | 1003- | |
| 22 | 09450-00000 | CATCH | 1003- | |
| 23 | 09450-00002 | PIN | 1003- | |
| 24 | 04050-01610 | PIN,COTTER | 1003- | |
| 25 | 09450-00000 | CATCH | 1003- | |
| 26 | 09450-00002 | PIN | 1003- | |
| 27 | 04050-01610 | PIN,COTTER | 1003- | |
| 28 | 566-54-41741 | BRACKET | 1003- | |
| 29 | 01010-51020 | BOLT | 1003- | |
| 30 | 01643-31032 | WASHER | 1003- | |
| 31 | 566-54-41760 | COVER | 1003- | |
| 32 | 01010-51020 | BOLT | 1003- | |
| 33 | 01643-31032 | WASHER | 1003- |
