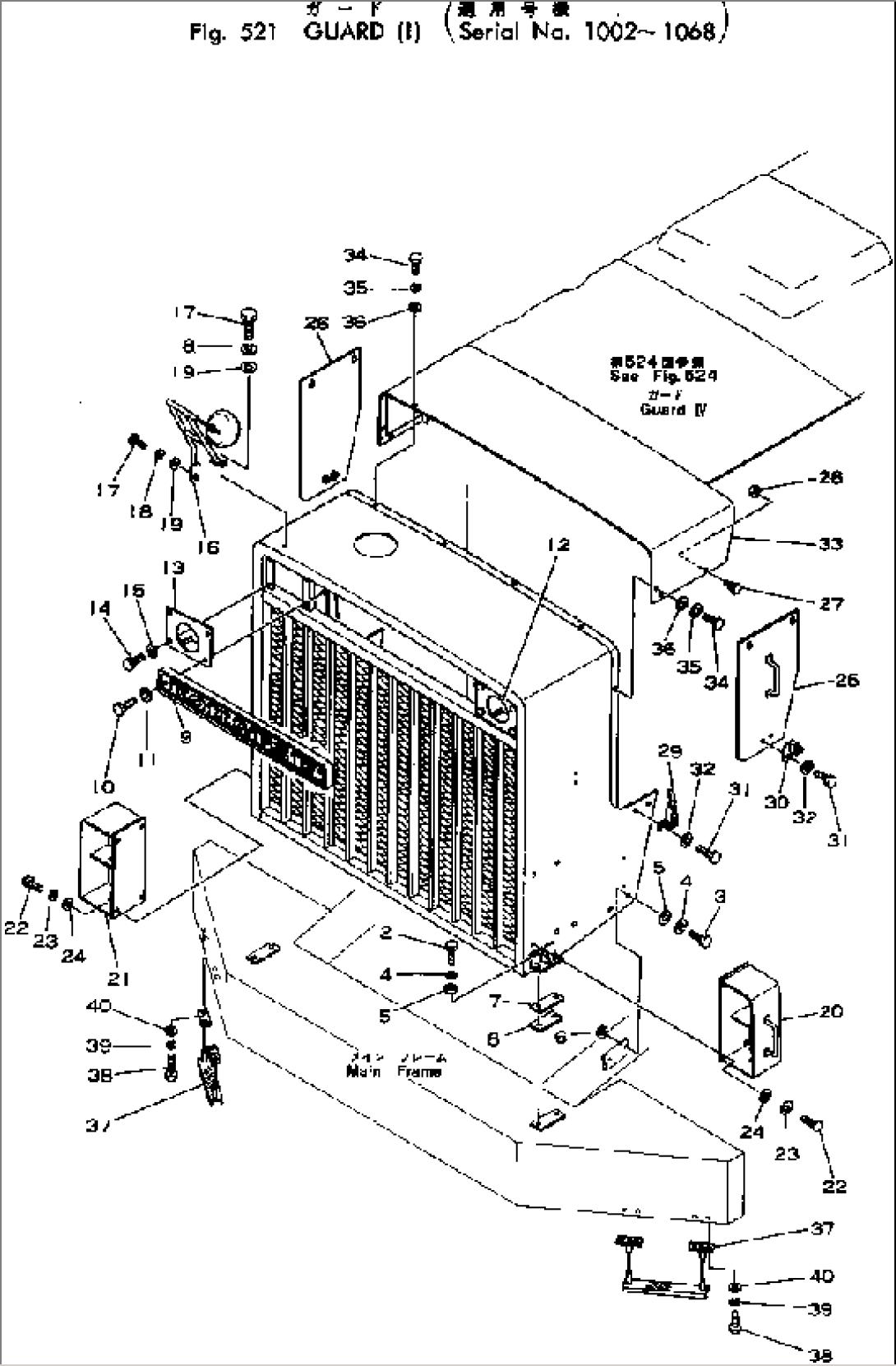

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-11210 | GUARD | 1002-1068 | |
| 2 | 01010-51635 | BOLT | 1002-1068 | |
| 3 | 01010-51640 | BOLT | 1002-1068 | |
| 4 | 01602-21648 | WASHER | 1002-1068 | |
| 5 | 01643-31645 | WASHER | 1002-@ | |
| 6 | 01580-11613 | NUT | 1002-@ | |
| 7 | 566-54-11890 | SHIM, 2.3MM | 1002-@ | |
| 8 | 281-20-15411 | SHIM, 1.0MM | 1002-@ | |
| 9 | 154-54-14290 | PLATE, NAME | 1002-1068 | |
| 10 | 01010-51640 | BOLT | 1002-1068 | |
| 11 | 01602-21648 | WASHER | 1002-1068 | |
| 12 | 569-54-11240 | BRACKET | 1002-1068 | |
| 13 | 569-54-11250 | BRACKET | 1002-1068 | |
| 14 | 01010-50820 | BOLT | 1002-1068 | |
| 15 | 01602-20825 | WASHER | 1002-1068 | |
| 16 | 566-54-12492 | STAY | 1002-@ | |
| 17 | 01010-51025 | BOLT | 1002-@ | |
| 18 | 01602-21030 | WASHER | 1002-1068 | |
| 19 | 01643-31032 | WASHER | 1002-@ | |
| 20 | 566-54-11413 | BRACKET | 1002-1068 | |
| 21 | 566-54-11422 | BRACKET | 1002-1068 | |
| 22 | 01010-51025 | BOLT | 1002-1068 | |
| 23 | 01602-21030 | WASHER | 1002-1068 | |
| 24 | 01643-31032 | WASHER | 1002-1068 | |
| 25 | 569-54-11280 | COVER | 1002-1068 | |
| 26 | 569-54-11290 | COVER | 1002-1068 | |
| 27 | 566-54-11170 | PIN | 1002-1068 | |
| 28 | 01580-10605 | NUT | 1002-1068 | |
| 29 | 581-22-12410 | CATCHER | 1002-1068 | |
| 30 | 581-22-12420 | SUPPORT | 1002-1068 | |
| 31 | 01010-50820 | BOLT | 1002-1068 | |
| 32 | 01602-20825 | WASHER | 1002-1068 | |
| 33 | 566-54-11283 | HOOD | 1002-@ | |
| 34 | 01010-51025 | BOLT | 1002-@ | |
| 35 | 01602-21030 | WASHER | 1002-1068 | |
| 36 | 01643-31032 | WASHER | 1002-@ | |
| 37 | 566-54-11372 | STEP | 1002-@ | |
| 38 | 01010-51040 | BOLT | 1002-@ | |
| 39 | 01602-21030 | WASHER | 1002-1068 | |
| 40 | 01643-31032 | WASHER | 1002-@ |
