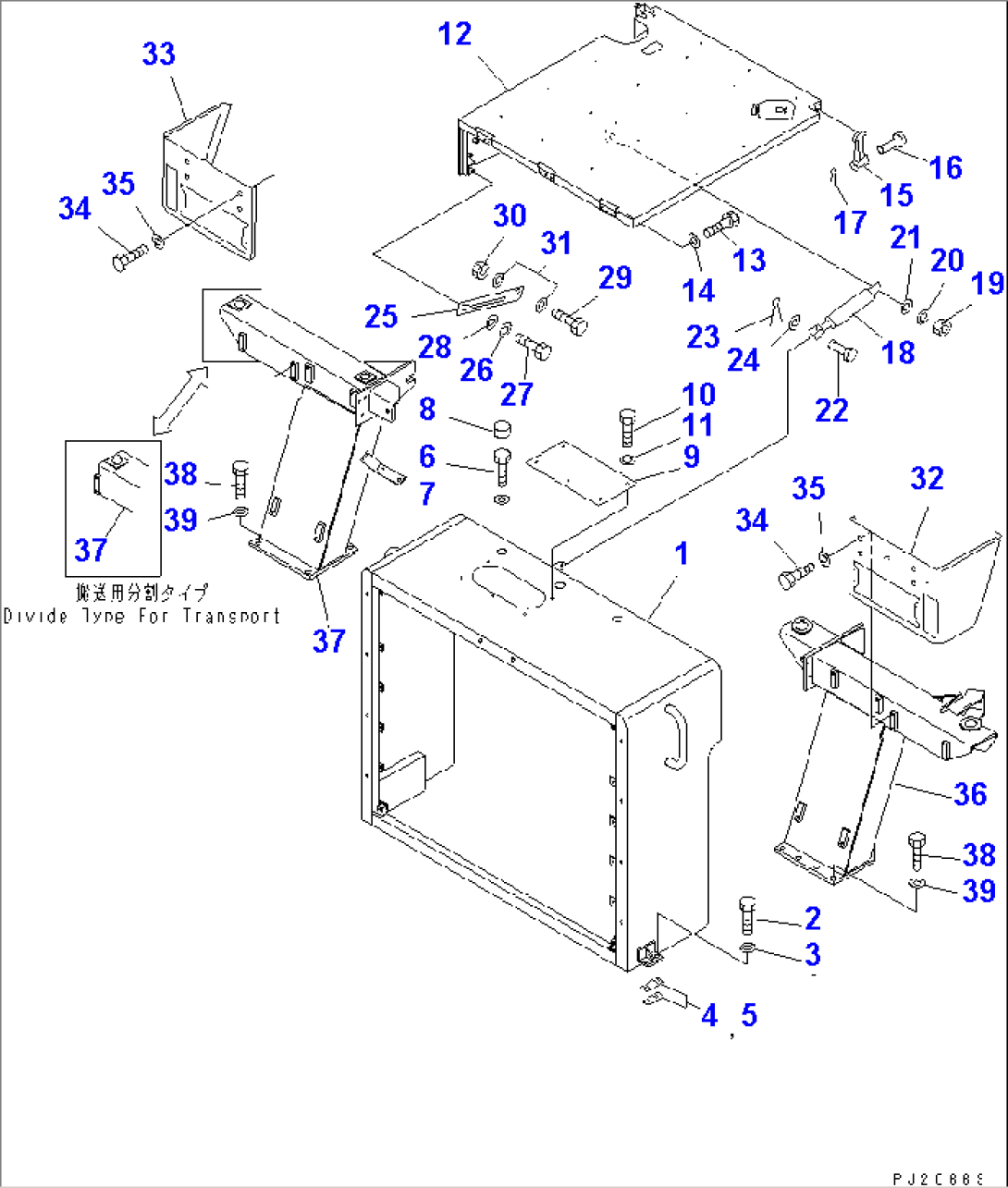

GUARD (1/7) (LOW NOISE SPEC.)(#2029-)

Item	Part No.	Part Name	Qty	Serial No.
1	566-89-6F810	GUARD,(LOW NOISE SPEC.)		2029-
2	01010-81635	BOLT		1001-
3	01643-31645	WASHER		1001-
4	566-54-6A130	SHIMÂ¤ 1.0MM		1001-
5	566-54-6A140	SHIMÂ¤ 2.3MM		1001-
6	01010-81240	BOLT		1001-
7	01643-31232	WASHER		1001-
8	09415-03614	CAP		1001-
9	566-54-6A180	COVER		1001-
10	01010-81220	BOLT		1001-
11	01643-31232	WASHER		1001-
12	566-89-6H110	HOOD		2029-
13	01010-81020	BOLT		1001-
14	01643-31032	WASHER		1001-
15	09450-00000	CATCH		1001-
16	09450-00002	PIN		1001-
17	04050-11610	PIN,COTTER		1001-
18	438-54-11580	SPRING		1001-
19	01580-10605	NUT		1001-
20	01643-30623	WASHER		1001-
21	01643-30823	WASHER		1001-
22	04205-10622	PIN		1001-
23	04050-11612	PIN,COTTER		1001-
24	01641-20608	WASHER		1001-
25	566-54-41690	STAY		1001-
26	281-40-13570	WASHER		1001-
27	01010-80820	BOLT		1001-
28	01643-30823	WASHER		1001-
29	01010-81455	BOLT		1001-
30	01580-11411	NUT		1001-
31	01643-31445	WASHER		1001-
32	566-54-6A340	COVER		1001-
33	566-54-6A350	COVER		1001-
34	01010-51020	BOLT		1001-
35	01643-31032	WASHER		1001-
36	566-54-6A313	SUPPORT		2001-
37	566-89-6G940	SUPPORT,(LOW NOISE SPEC.)		2029-
	566-89-6G970	SUPPORT,(LOW NOISE SPEC.)(DIVIDE TYPE)		2029-
38	01010-82045	BOLT		2001-
39	01643-32060	WASHER		2001-
