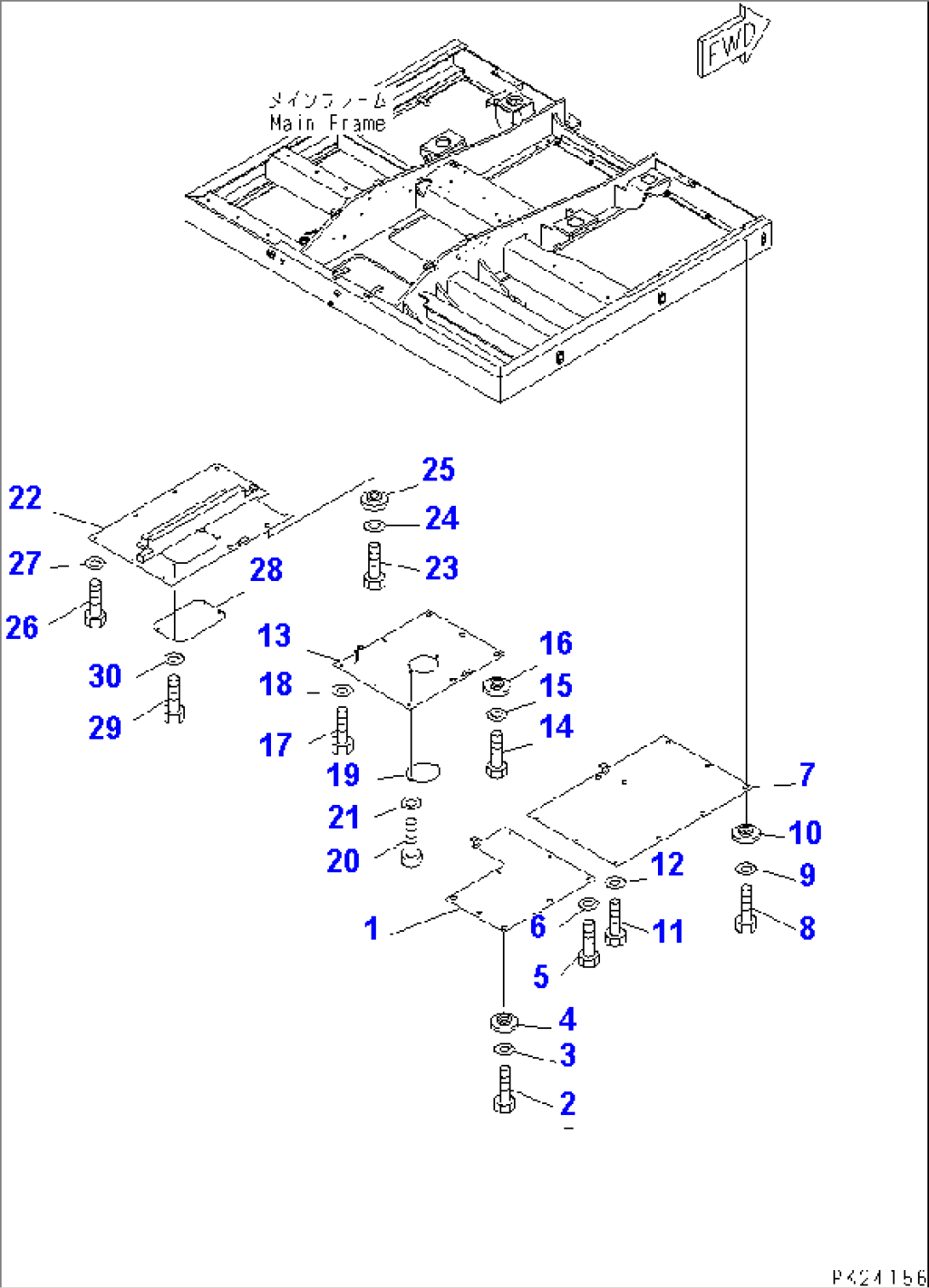

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-54-1250 | COVER | 1002- | |
| 2 | 01010-81230 | BOLT | 1002- | |
| 3 | 01643-31232 | WASHER | 1002- | |
| 4 | 20Y-54-12550 | COLLAR | 1002- | |
| 5 | 01010-81230 | BOLT | 1002- | |
| 6 | 01643-31232 | WASHER | 1002- | |
| 7 | 208-54-63131 | COVER | 1002- | |
| 8 | 01010-81230 | BOLT | 1002- | |
| 9 | 01643-31232 | WASHER | 1002- | |
| 10 | 20Y-54-12550 | COLLAR | 1002- | |
| 11 | 01010-81230 | BOLT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- | |
| 13 | 8248-54-2121 | COVER | 1201- | |
| 13 | 8248-54-2120 | COVER | 1002-1200 | |
| 14 | 01010-81230 | BOLT | 1002- | |
| 15 | 01643-31232 | WASHER | 1002- | |
| 16 | 20Y-54-12550 | COLLAR | 1002- | |
| 17 | 01010-81230 | BOLT | 1002- | |
| 18 | 01643-31232 | WASHER | 1002- | |
| 19 | 207-54-51440 | PLATE | 1002- | |
| 20 | 01010-81230 | BOLT | 1002- | |
| 21 | 01643-31232 | WASHER | 1002- | |
| 22 | 8248-54-1661 | COVER | 1201- | |
| 22 | 8248-54-1660 | COVER | 1002-1200 | |
| 23 | 01010-81230 | BOLT | 1002- | |
| 24 | 01643-31232 | WASHER | 1002- | |
| 25 | 20Y-54-12550 | COLLAR | 1002- | |
| 26 | 01010-81230 | BOLT | 1002- | |
| 27 | 01643-31232 | WASHER | 1002- | |
| 28 | 8248-54-2160 | COVER | 1002- | |
| 29 | 01010-81230 | BOLT | 1002- | |
| 30 | 01643-31232 | WASHER | 1002- |
