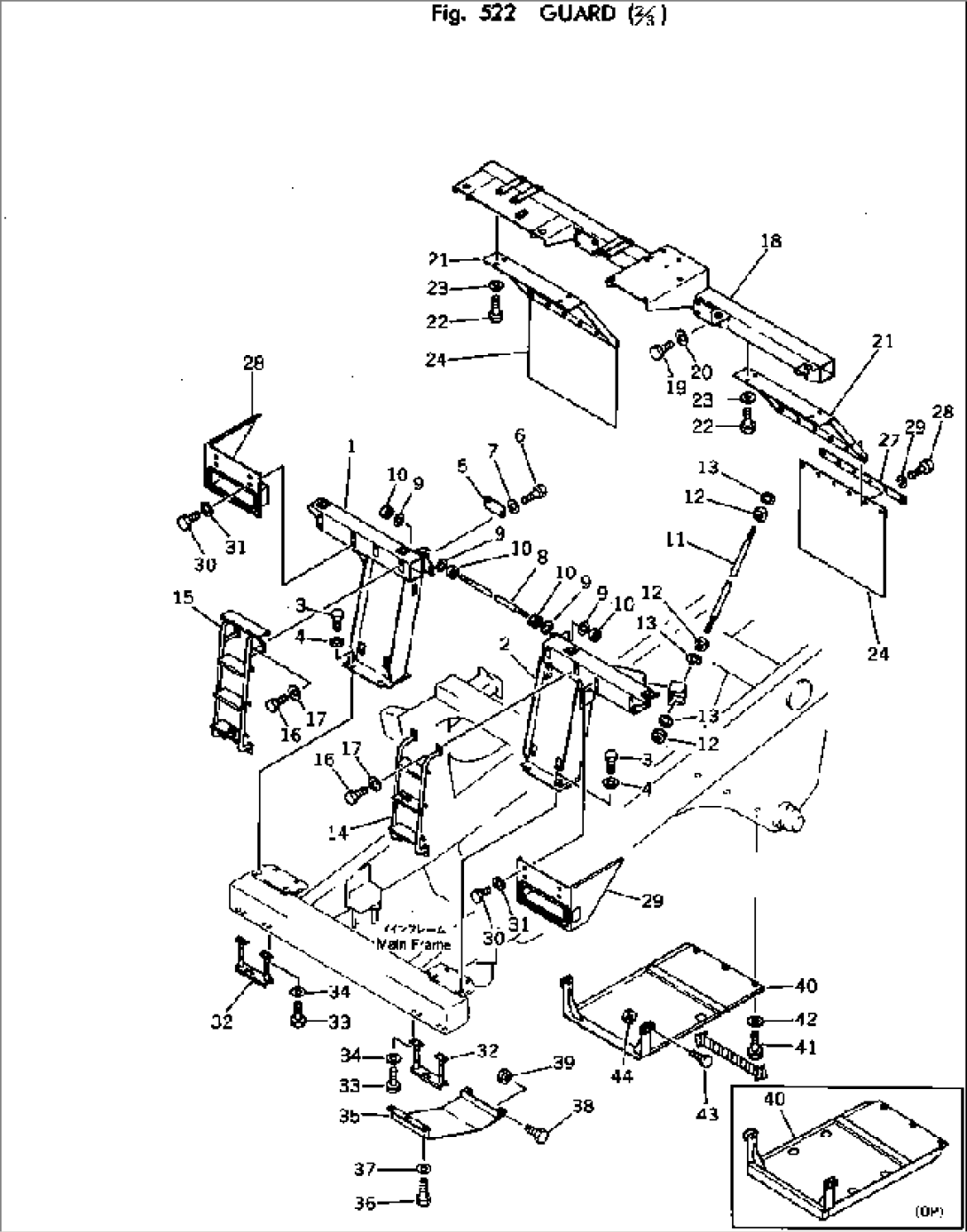

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-41411 | SUPPORT,R.H. FRONT | 1102- | |
| 2 | 569-54-41421 | SUPPORT,L.H. FRONT | 1102- | |
| 3 | 01010-52045 | BOLT | 1102- | |
| 4 | 01643-32060 | WASHER | 1102- | |
| 5 | 566-54-41571 | COVER | 1102- | |
| 6 | 01010-51020 | BOLT | 1102- | |
| 7 | 01643-31032 | WASHER | 1102- | |
| 8 | 569-54-41490 | ROD | 1102- | |
| 9 | 01643-31645 | WASHER | 1102- | |
| 10 | 01580-11613 | NUT | 1102- | |
| 11 | 569-54-41480 | ROD | 1102- | |
| 12 | 01580-12218 | NUT | 1102- | |
| 13 | 01643-32260 | WASHER | 1102- | |
| 14 | 569-54-41431 | STEP,L.H. | 1102- | |
| 15 | 569-54-41830 | STEP,R.H. | 1102- | |
| 16 | 01010-51225 | BOLT | 1102- | |
| 17 | 01643-31232 | WASHER | 1102- | |
| 18 | 569-54-41451 | SUPPORT,REAR | 1102- | |
| 19 | 01010-52040 | BOLT | 1102- | |
| 20 | 01643-32060 | WASHER | 1102- | |
| 21 | 569-54-41511 | FENDER | 1102- | |
| 22 | 01010-51225 | BOLT | 1102- | |
| 23 | 01643-31232 | WASHER | 1102- | |
| 24 | 569-54-41540 | GUARD | 1102- | |
| 25 | 569-54-41550 | PLATE | 1102- | |
| 26 | 01010-51225 | BOLT | 1102- | |
| 27 | 01602-21236 | WASHER | 1102- | |
| 28 | 566-54-41251 | COVER,R.H. | 1102- | |
| 29 | 566-54-41261 | COVER,L.H. | 1102- | |
| 30 | 01010-51020 | BOLT | 1102- | |
| 31 | 01643-31032 | WASHER | 1102- | |
| 32 | 569-54-41840 | STEP | 1102- | |
| 33 | 01010-51030 | BOLT | 1102- | |
| 34 | 01643-31032 | WASHER | 1102- | |
| 35 | 569-54-41611 | GUARD | 1102- | |
| 36 | 01010-51635 | BOLT | 1102- | |
| 37 | 01643-31645 | WASHER | 1102- | |
| 38 | 01010-52470 | BOLT | 1102- | |
| 39 | 01598-12425 | NUT | 1102- | |
| 40 | 569-54-41622 | GUARD,REAR | 1102- | |
| 40 | 569-95-46310 | GUARD,REAR (REINFORCED TYPE) | 1102- | |
| 41 | 01010-52065 | BOLT | 1226- | |
| 41 | 01010-52055 | BOLT | 1102-1225 | |
| 41 | 01010-52075 | BOLT,(REINFORCED TYPE) | 1102- | |
| 42 | 01643-32060 | WASHER | 1102- | |
| 43 | 01010-52475 | BOLT | 1102- | |
| 44 | 01598-12425 | NUT | 1102- |
