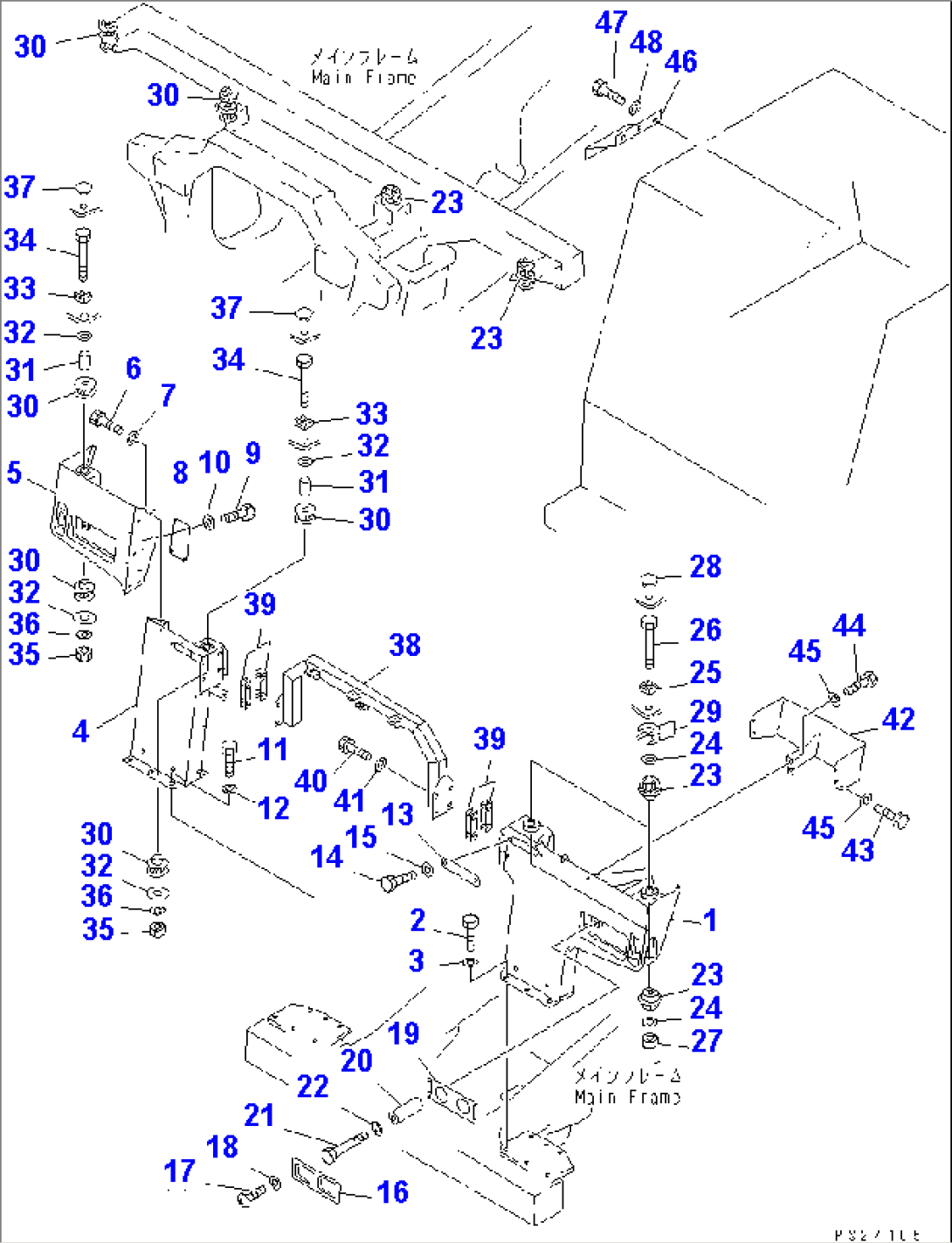

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-61313 | SUPPORT | 1001- | |
| 2 | 01010-82045 | BOLT | 1001- | |
| 3 | 01643-32060 | WASHER | 1001- | |
| 4 | 569-54-61323 | SUPPORT | 1001- | |
| 5 | 569-54-61680 | SUPPORT | 1001- | |
| 6 | 01018-32050 | BOLT | 1001- | |
| 7 | 01643-32060 | WASHER | 1001- | |
| 8 | 569-54-61690 | PLATE | 1001- | |
| 9 | 01010-81025 | BOLT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | 01010-82045 | BOLT | 1001- | |
| 12 | 01643-32060 | WASHER | 1001- | |
| 13 | 569-54-61381 | COVER | 1001- | |
| 14 | 01010-81225 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 569-54-61850 | COVER | 1001- | |
| 17 | 01220-70612 | SCREW | 1001- | |
| 18 | 01642-40608 | WASHER | 1001- | |
| 19 | 569-54-61840 | PLATE | 1001- | |
| 20 | 6130-12-4571 | SPACER | 1001- | |
| 21 | 01011-81000 | BOLT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 561-54-67180 | CUSHION | 1001- | |
| 24 | 135-01-31170 | WASHER | 1001- | |
| 25 | 561-54-61890 | PLATE | 1001- | |
| 26 | 01011-81855 | BOLT | 1001- | |
| 27 | 01580-11815 | NUT | 1001- | |
| 28 | 09414-01053 | CAP | 1001- | |
| 29 | 561-54-61880 | SPACER | 1001- | |
| 30 | 566-54-12212 | CUSHION | 1001- | |
| 31 | 566-54-21910 | BUSHING | 1001- | |
| 32 | 566-54-21920 | PLATE | 1001- | |
| 33 | 566-54-21931 | PLATE | 1001- | |
| 34 | 01011-82020 | BOLT | 1001- | |
| 35 | 01580-12016 | NUT | 1001- | |
| 36 | 01643-32060 | WASHER | 1001- | |
| 37 | 09414-01053 | CAP | 1001- | |
| 38 | 569-54-61332 | STAY | 1001- | |
| 39 | 569-54-61170 | SHIM | 1001- | |
| 40 | 01010-81640 | BOLT | 1001- | |
| 41 | 01643-31645 | WASHER | 1001- | |
| 42 | 569-54-61582 | COVER | 1001- | |
| 43 | 01010-81230 | BOLT | 1001- | |
| 44 | 01010-81225 | BOLT | 1001- | |
| 45 | 01643-31232 | WASHER | 1001- | |
| 46 | 569-54-61291 | COVER | 1001- | |
| 47 | 01010-80820 | BOLT | 1001- | |
| 48 | 01643-30823 | WASHER | 1001- |
