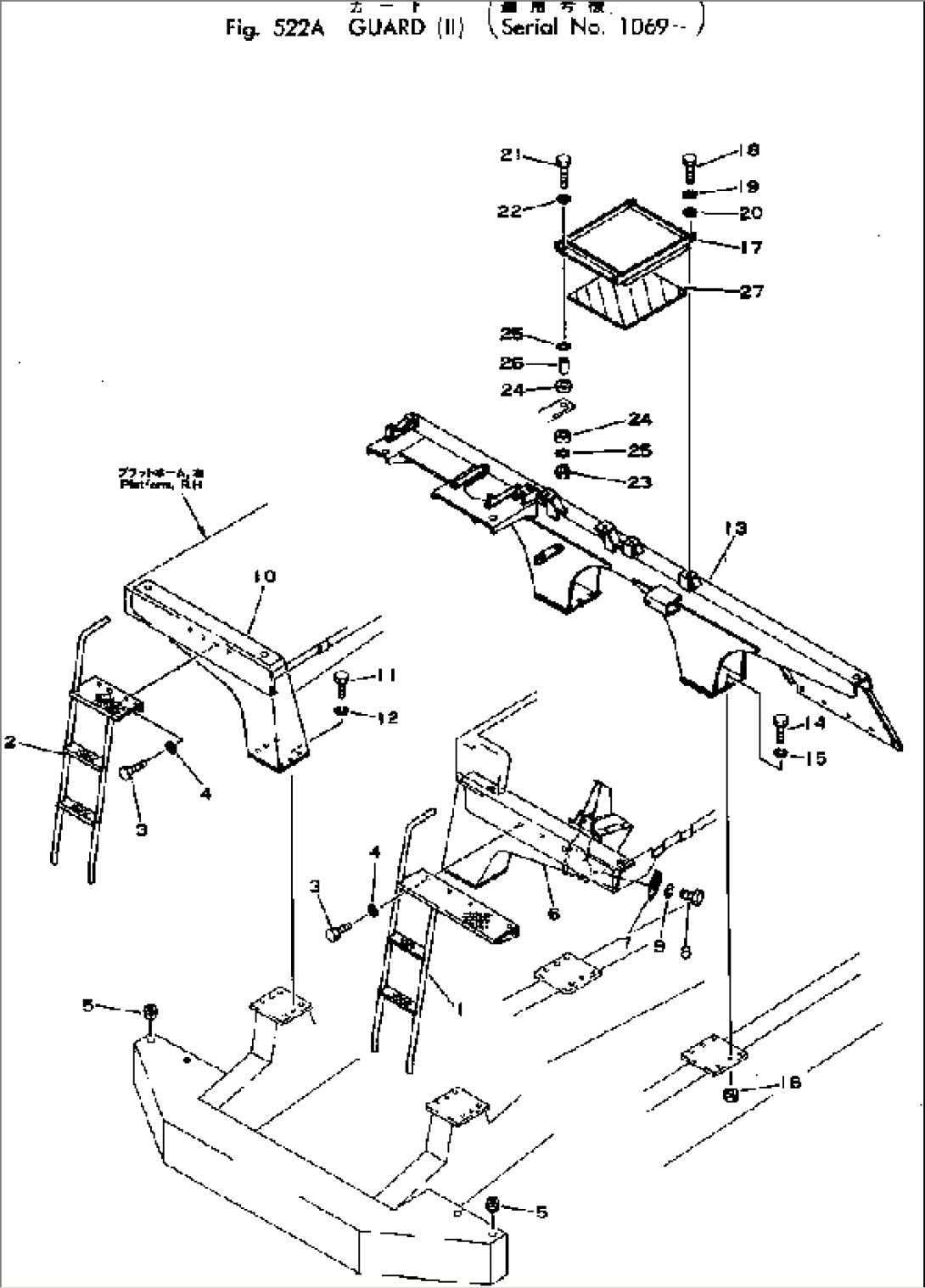

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-11650 | STEP | 1002- | |
| 2 | 569-54-11661 | STEP | 1069- | |
| 3 | 01010-51025 | BOLT | 1002- | |
| 4 | 01643-31032 | WASHER | 1002- | |
| 5 | 566-54-11340 | GROMMET | 1002- | |
| 6 | 569-54-12112 | SUPPORT | 1069- | |
| 7 | 566-54-12442 | STOPPER | 1002- | |
| 8 | 01010-51440 | BOLT | 1002- | |
| 9 | 01602-21442 | WASHER | 1002- | |
| 10 | 569-54-12122 | SUPPORT | 1069- | |
| 11 | 01010-52270 | BOLT | 1002- | |
| 12 | 01602-22268 | WASHER | 1002- | |
| 13 | 569-54-12132 | SUPPORT | 1069- | |
| 14 | 01010-52270 | BOLT | 1002- | |
| 15 | 01602-22268 | WASHER | 1002- | |
| 16 | 01580-12218 | NUT | 1002- | |
| 17 | 569-54-12730 | BRACKET | 1069- | |
| 18 | 01010-51440 | BOLT | 1002- | |
| 19 | 01602-21442 | WASHER | 1002- | |
| 20 | 01643-31445 | WASHER | 1002- | |
| 21 | 01010-51475 | BOLT | 1002- | |
| 22 | 01643-31445 | WASHER | 1002- | |
| 23 | 01598-01415 | NUT | 1002- | |
| 24 | 411-03-11340 | CUSHION | 1002- | |
| 25 | 581-61-11430 | WASHER | 1002- | |
| 26 | 569-54-12220 | BUSHING | 1002- | |
| 27 | 566-54-11760 | SEAT | 1069- |
