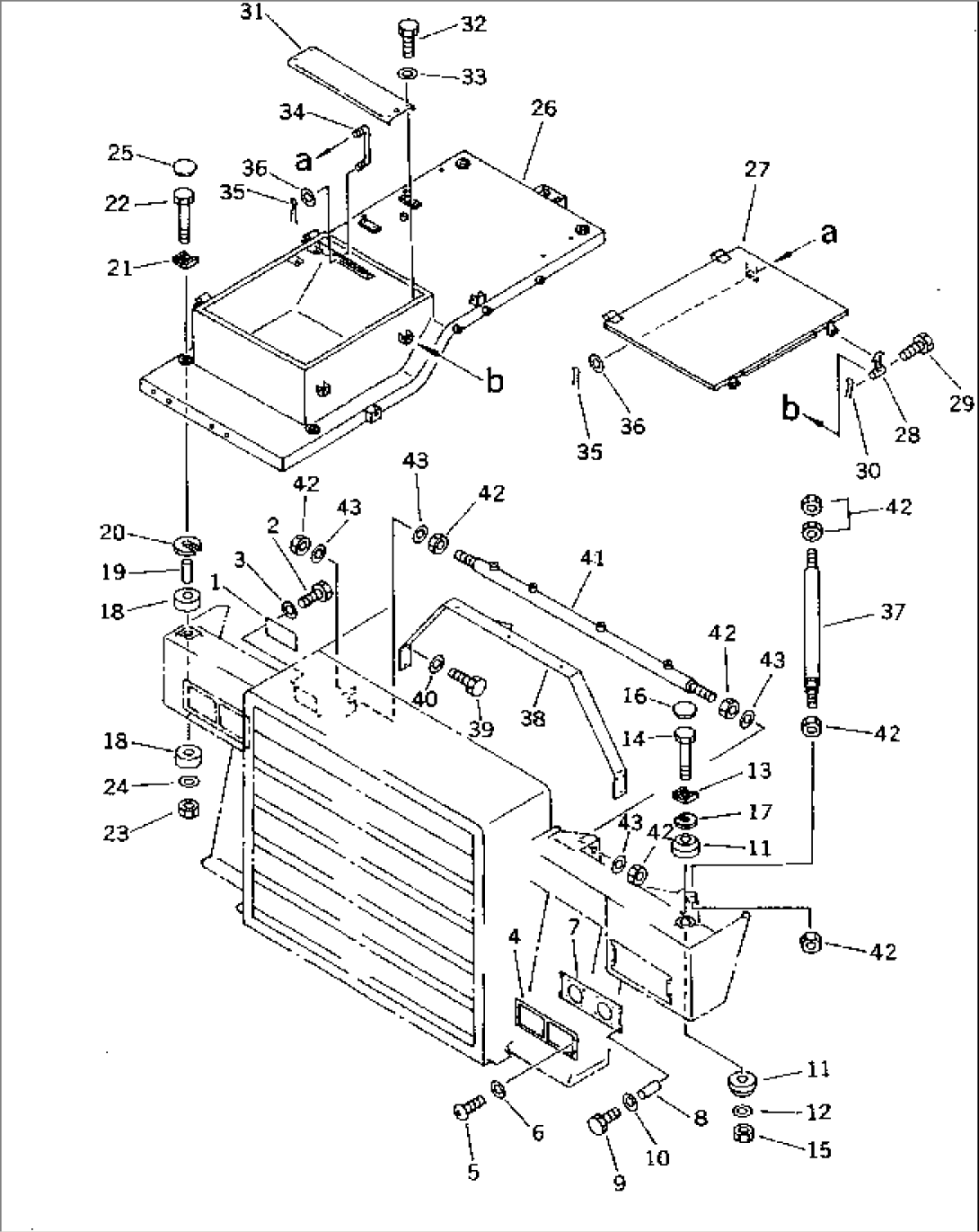

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-41571 | COVER | 5001-@ | |
| 2 | 01010-81020 | BOLT | 5001-@ | |
| 3 | 01643-31032 | WASHER | 5001-@ | |
| 4 | 569-54-61850 | COVER | 5001-@ | |
| 5 | 01220-70612 | SCREW | 5001-@ | |
| 6 | 01642-40608 | WASHER | 5001-@ | |
| 7 | 569-54-61840 | PLATE | 5001-@ | |
| 8 | 6130-12-4571 | SPACER | 5001-@ | |
| 9 | 01011-81000 | BOLT | 5001-@ | |
| 10 | 01643-31032 | WASHER | 5001-@ | |
| 11 | 566-54-6A610 | CUSHION | 5001-@ | |
| 12 | 135-01-31170 | WASHER | 5001-@ | |
| 13 | 561-54-61890 | PLATE | 5001-@ | |
| 14 | 01011-81855 | BOLT | 5001-@ | |
| 15 | 01580-11815 | NUT | 5001-@ | |
| 16 | 09414-01053 | CAP | 5001-@ | |
| 17 | 561-54-61880 | SPACER | 5001-@ | |
| 18 | 566-54-12211 | CUSHION | 5001-@ | |
| 19 | 566-54-21910 | BUSHING | 5001-@ | |
| 20 | 566-54-21920 | PLATE | 5001-@ | |
| 21 | 566-54-21931 | PLATE | 5001-@ | |
| 22 | 01011-82020 | BOLT | 5001-@ | |
| 23 | 01580-12016 | NUT | 5001-@ | |
| 24 | 01643-32060 | WASHER | 5001-@ | |
| 25 | 09414-01053 | CAP | 5001-@ | |
| 26 | 566-54-6A410 | PLATFORM | 5001-5484 | |
| 27 | 569-54-61424 | COVER | 5001-5484 | |
| 28 | 09450-00000 | CATCH | 5001-@ | |
| 29 | 09450-00002 | PIN | 5001-@ | |
| 30 | 04050-11610 | PIN,COTTER | 5001-@ | |
| 31 | 569-54-61471 | COVER | 5001-@ | |
| 32 | 01010-81230 | BOLT | 5001-@ | |
| 33 | 01643-31232 | WASHER | 5001-@ | |
| 34 | 569-54-61480 | ROD | 5001-@ | |
| 35 | 04050-13020 | PIN,COTTER | 5001-@ | |
| 36 | 01643-31032 | WASHER | 5001-@ | |
| 37 | 566-54-41930 | ROD | 5001-@ | |
| 38 | 566-54-6A330 | STAY | 5001-5484 | |
| 39 | 01010-81235 | BOLT | 5001-@ | |
| 40 | 01643-31232 | WASHER | 5001-@ | |
| 41 | 569-54-41491 | ROD | 5001-5484 | |
| 42 | 01580-13024 | NUT | 5001-@ | |
| 43 | 01643-33080 | WASHER | 5001-@ |
