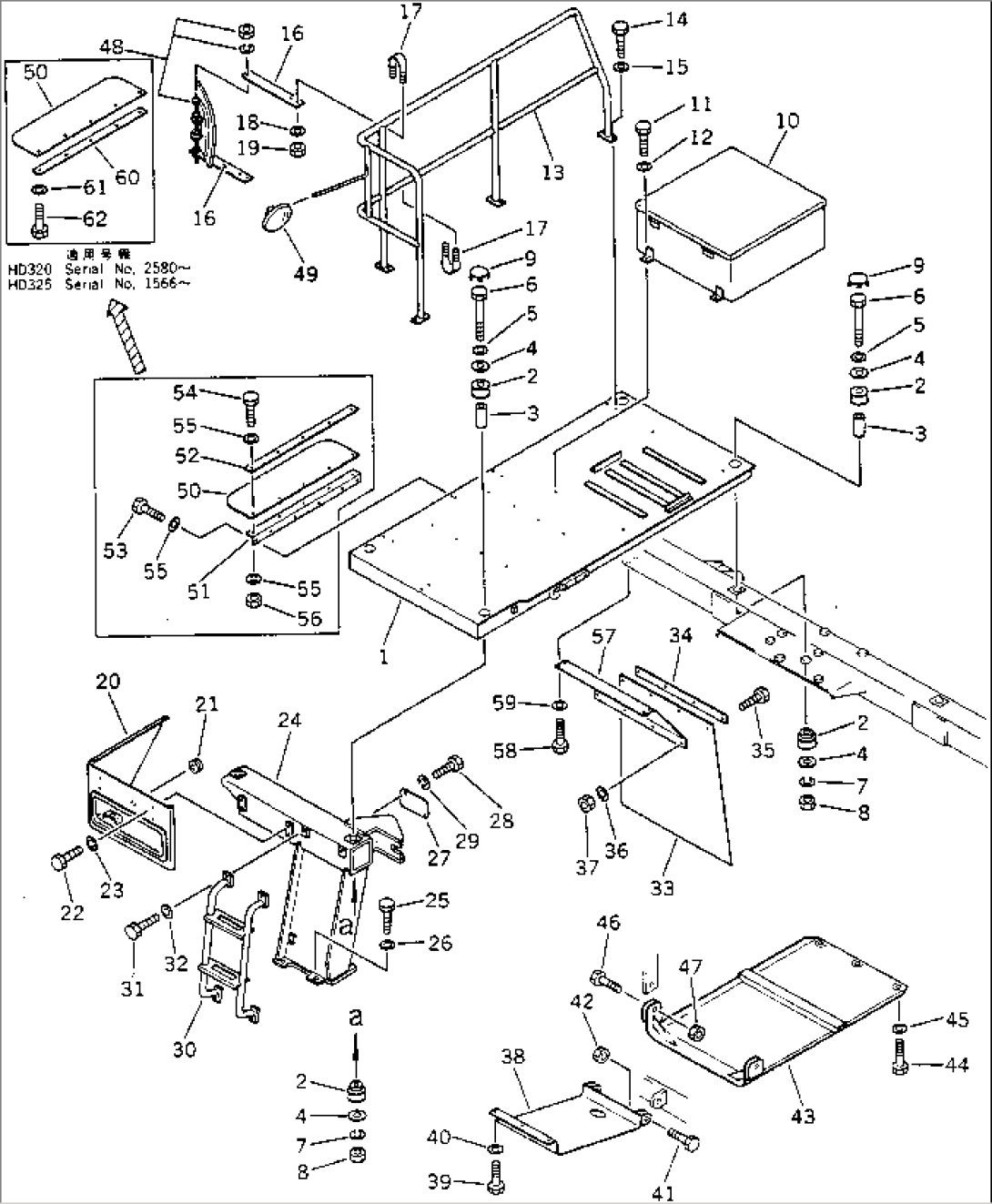

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-41211 | PLATFORM,R.H. | 1501- | |
| 2 | 566-54-41271 | CUSHION | 1501- | |
| 3 | 566-54-21910 | BUSHING | 1501- | |
| 4 | 566-54-21920 | PLATE | 1501- | |
| 5 | 566-54-21930 | PLATE | 1501- | |
| 6 | 01011-82020 | BOLT | 1501- | |
| 7 | 01602-22060 | WASHER,SPRING | 1501- | |
| 8 | 01580-12016 | NUT | 1501- | |
| 9 | 09414-00053 | CAP | 1501- | |
| 10 | 566-54-41221 | BOX | 1501- | |
| 11 | 01010-51025 | BOLT | 1566- | |
| 11 | 01010-51225 | BOLT | 1501-1565 | |
| 12 | 01643-31032 | WASHER | 1566- | |
| 12 | 01643-31232 | WASHER | 1501-1565 | |
| 13 | 566-54-41232 | STAY,R.H. | 1501- | |
| 14 | 01010-51025 | BOLT | 1501- | |
| 15 | 01643-31032 | WASHER | 1501- | |
| 16 | 566-54-41650 | PLATE | 1501- | |
| 17 | 07283-13442 | CLIP | 1501- | |
| 18 | 01643-31032 | WASHER | 1501- | |
| 19 | 01599-01011 | NUT | 1501- | |
| 20 | 566-54-41251 | COVER,R.H. | 1501- | |
| 21 | 08037-01008 | GROMMET | 1501- | |
| 22 | 01010-51020 | BOLT | 1501- | |
| 23 | 01643-31032 | WASHER | 1501- | |
| 24 | 566-54-41412 | SUPPORT,R.H. | 1501- | |
| 25 | 01010-52045 | BOLT | 1501- | |
| 26 | 01643-32060 | WASHER | 1501- | |
| 27 | 566-54-41571 | COVER | 1501- | |
| 28 | 01010-51020 | BOLT | 1501- | |
| 29 | 01643-31032 | WASHER | 1566- | |
| 29 | 01602-21030 | WASHER,SPRING | 1501-1565 | |
| 30 | 566-54-41432 | STEP | 1501- | |
| 31 | 01010-51225 | BOLT | 1501- | |
| 32 | 01643-31232 | WASHER | 1501- | |
| 33 | 566-54-41531 | GUARD | 1501- | |
| 34 | 566-54-41541 | PLATE | 1501- | |
| 35 | 01010-51230 | BOLT | 1501- | |
| 36 | 01643-31232 | WASHER | 1501- | |
| 37 | 01580-11210 | NUT | 1501- | |
| 38 | 566-54-41511 | GUARD,UNDER | 1501- | |
| 39 | 01010-51635 | BOLT | 1501- | |
| 40 | 01643-31645 | WASHER | 1501- | |
| 41 | 01010-52470 | BOLT | 1501- | |
| 42 | 01598-12425 | NUT | 1501- | |
| 43 | 566-54-41521 | GUARD,UNDER | 1501- | |
| 44 | 01010-52045 | BOLT | 1501- | |
| 45 | 01643-32060 | WASHER | 1501- | |
| 46 | 01010-52470 | BOLT | 1501- | |
| 47 | 01598-12425 | NUT | 1501- | |
| 48 | 581-06-16420 | MIRROR ASS'Y,BACK | 1501- | |
| 49 | 568-06-15910 | MIRROR,UNDER | 1501- | |
| 50 | 566-54-18141 | SEAT | 1501- | |
| 51 | 566-54-18410 | BRACKET | 1501- | |
| 52 | 566-74-11310 | PLATE | 1501-1565 | |
| 53 | 01010-51225 | BOLT | 1501-1565 | |
| 54 | 01010-51240 | BOLT | 1501-1565 | |
| 55 | 01643-31232 | WASHER | 1501-1265 | |
| 56 | 01580-11210 | NUT | 1501-1565 | |
| 57 | 566-54-41461 | FENDER | 1501- | |
| 58 | 01010-51225 | BOLT | 1501- | |
| 59 | 01643-31232 | WASHER | 1501- | |
| 60 | 566-54-41750 | PLATE | 1566- | |
| 61 | 01010-51230 | BOLT | 1566- | |
| 62 | 01643-31232 | WASHER | 1566- |
