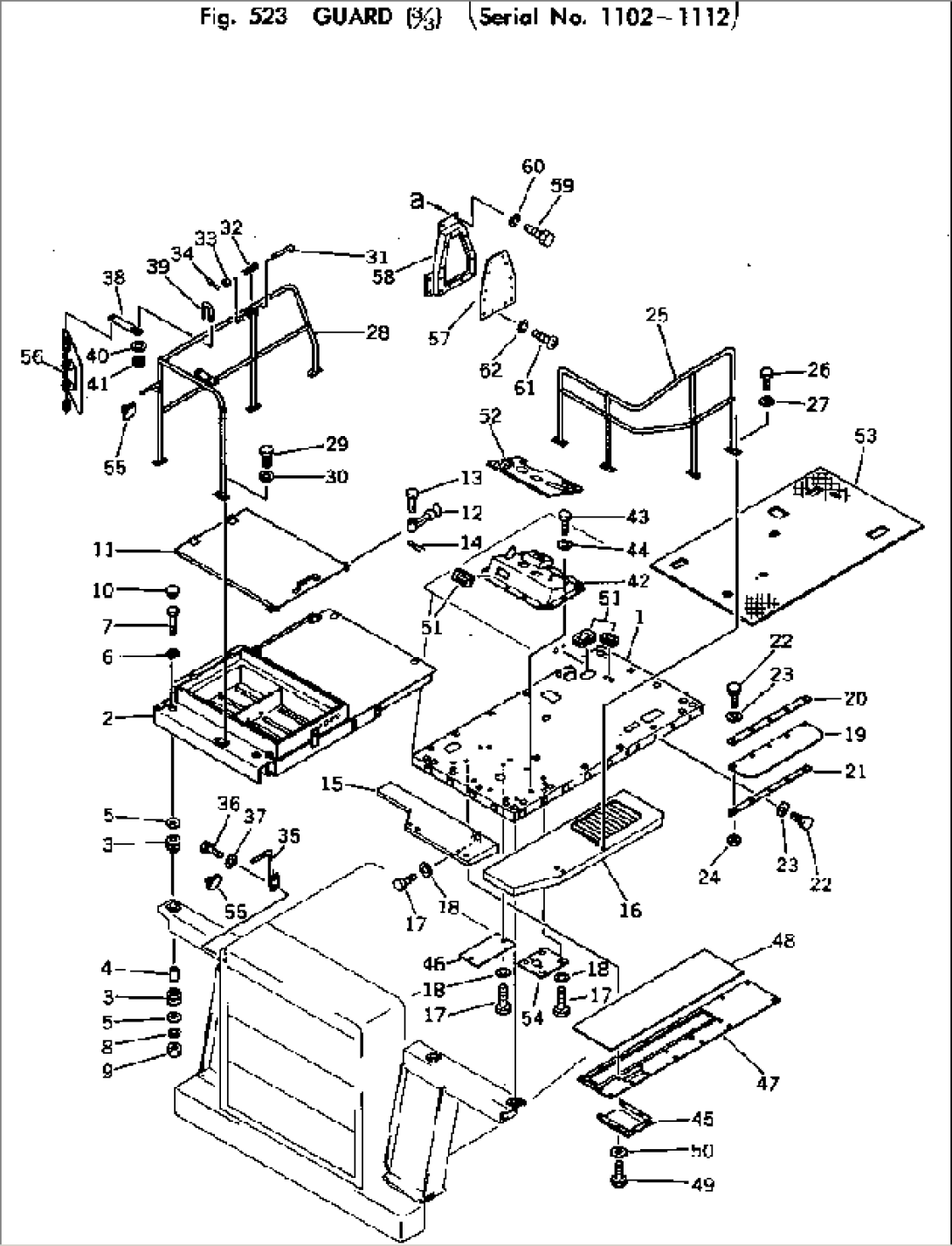

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-41312 | PLATFORM,L.H. | 1102-1112 | |
| 2 | 569-54-41211 | PLATFORM,R.H. | 1102-@ | |
| 3 | 566-54-41271 | CUSHION | 1102-@ | |
| 4 | 566-54-21910 | BUSHING | 1102-@ | |
| 5 | 566-54-21920 | PLATE | 1102-@ | |
| 6 | 566-54-21930 | PLATE | 1102-@ | |
| 7 | 01011-82020 | BOLT | 1102-@ | |
| 8 | 01602-22060 | WASHER | 1102-@ | |
| 9 | 01580-12016 | NUT | 1102-@ | |
| 10 | 09415-03614 | CAP | .-@ | |
| 10 | \0\09414-00053 | CAP | 1102-. | |
| 11 | 569-54-41240 | COVER | 1102-@ | |
| 12 | 09450-00000 | CATCH | 1102-@ | |
| 13 | 09450-00002 | PIN | 1102-@ | |
| 14 | 04050-01610 | PIN | 1102-@ | |
| 15 | 569-54-41331 | STEP,FRONT | 1102-@ | |
| 16 | 566-54-41341 | STEP,SIDE | 1102-@ | |
| 17 | 01010-51020 | BOLT | 1102-@ | |
| 18 | 01643-31032 | WASHER | 1102-@ | |
| 19 | 566-54-18141 | SEAT | 1102-@ | |
| 20 | 566-74-11310 | PLATE | 1102-@ | |
| 21 | 566-54-18410 | BRACKET | 1102-1112 | |
| 22 | 01010-51240 | BOLT | 1102-1112 | |
| 23 | 01643-31232 | WASHER | 1102-1112 | |
| 24 | 01580-11210 | NUT | 1102-1112 | |
| 25 | 569-54-41361 | STAY,L.H. | 1102-@ | |
| 26 | 01010-51030 | BOLT | 1102-@ | |
| 27 | 01643-31032 | WASHER | 1102-@ | |
| 28 | 569-54-41231 | STAY,R.H. | 1102-@ | |
| 29 | 01010-51025 | BOLT | 1102-@ | |
| 30 | 01643-31032 | WASHER | 1102-@ | |
| 31 | 568-74-11690 | ROD | 1102-@ | |
| 32 | 562-22-13930 | SPRING | 1102-@ | |
| 33 | 560-43-15220 | WASHER | 1102-@ | |
| 34 | 04050-13018 | PIN | 1102-@ | |
| 35 | 569-54-41370 | STAY | 1107-1112 | |
| 35 | 569-54-41370 | STAY | 1102-1103 | |
| 36 | 01010-51025 | BOLT | 1102-@ | |
| 37 | 01643-31032 | WASHER | 1102-@ | |
| 38 | 566-54-41650 | PLATE | 1102-@ | |
| 39 | 07283-23442 | CLIP | 1102-@ | |
| 40 | 01643-31032 | WASHER | 1102-@ | |
| 41 | 01599-01011 | NUT | 1102-@ | |
| 42 | 566-54-41320 | BOARD | 1102-1112 | |
| 43 | 01010-51025 | BOLT | 1102-@ | |
| 44 | 01643-31032 | WASHER | 1102-@ | |
| 45 | 566-54-41371 | COVER | 1102-1112 | |
| 46 | 566-54-41381 | COVER | 1102-1112 | |
| 47 | 566-54-41640 | COVER | 1102-@ | |
| 48 | 566-07-41940 | URETHANE | 1102-1112 | |
| 49 | 01010-51025 | BOLT | 1102-@ | |
| 50 | 01643-31032 | WASHER | 1102-@ | |
| 51 | 566-54-12790 | CUSHION | 1102-@ | |
| 52 | 566-54-41350 | MAT | 1102-@ | |
| 53 | 566-54-41360 | MAT | 1102-@ | |
| 54 | 566-54-41680 | COVER | 1102-1112 | |
| 55 | 568-06-15910 | MIRROR,UNDER | 1102-@ | |
| 56 | 581-06-16410 | MIRROR,BACK | 1102-@ | |
| 57 | 566-54-43610 | COVER | 1102-1112 | |
| 58 | 566-54-43620 | BRACKET | 1102-1112 | |
| 59 | 01010-51020 | BOLT | 1102-1112 | |
| 60 | 01602-21030 | WASHER | 1102-1112 | |
| 61 | 01225-20512 | SCREW | 1102-1112 | |
| 62 | 01602-20513 | WASHER | 1102-1112 |
