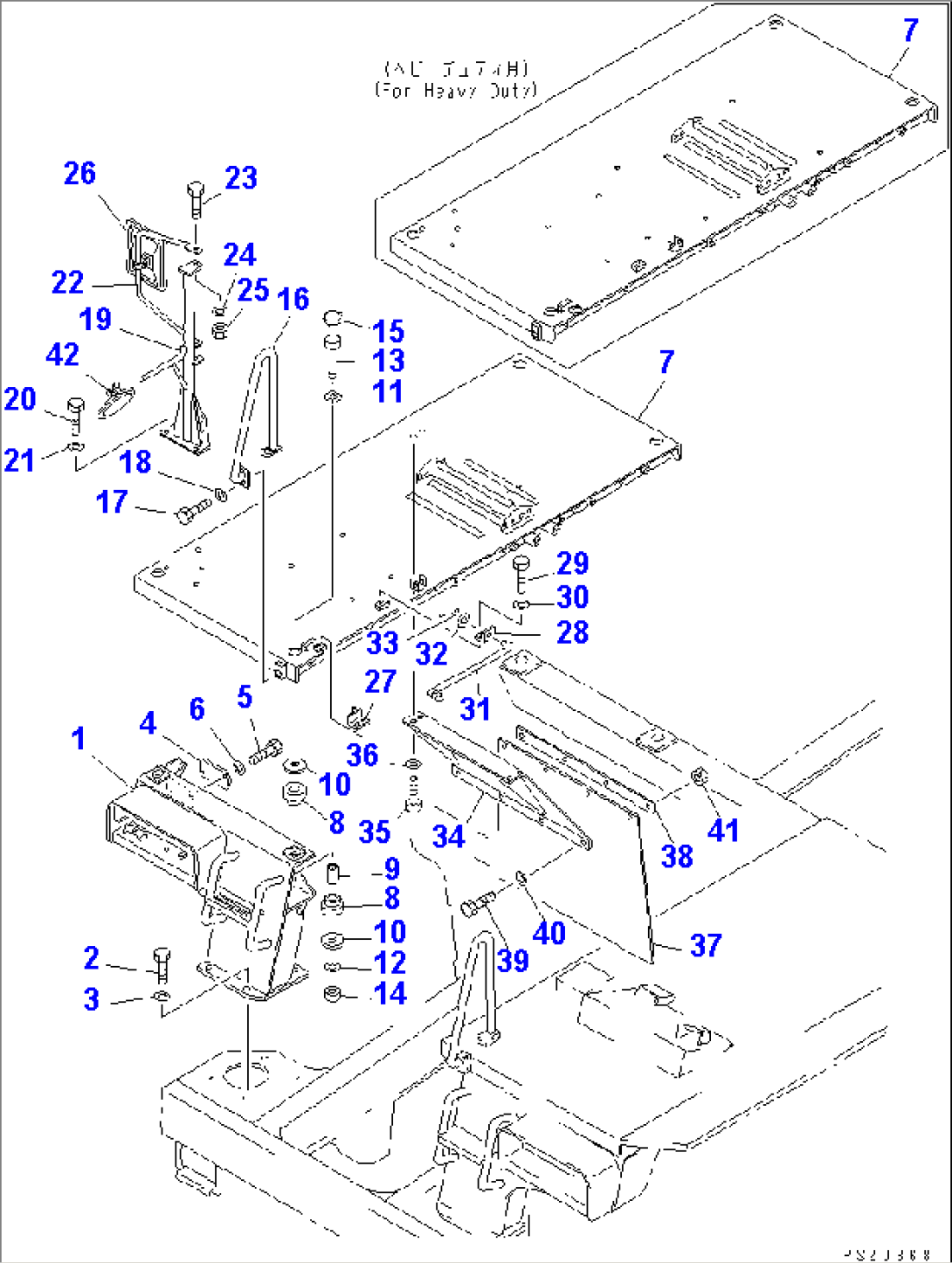

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-54-41432 | SUPPORT,R.H. | 1266- | |
| 1 | 567-54-41431 | SUPPORT,R.H. | 1003-1265 | |
| 2 | 01010-52060 | BOLT | 1003- | |
| 3 | 01643-32060 | WASHER | 1003- | |
| 4 | 566-54-41571 | COVER | 1003- | |
| 5 | 01010-51020 | BOLT | 1003- | |
| 6 | 01643-31032 | WASHER | 1003- | |
| 7 | 567-54-41342 | PLATFORM,R.H. | 1266-2127 | |
| 7 | 567-54-41340 | PLATFORM,R.H. | 1003-1265 | |
| 7 | 567-54-41343 | PLATFORM,R.H. (FOR HEAVY DUTY) | 1819-2127 | |
| 8 | 566-54-41271 | CUSHION | 1003- | |
| 9 | 566-54-21910 | BUSHING | 1003- | |
| 10 | 566-54-21920 | PLATE | 1003- | |
| 11 | 566-54-21930 | PLATE | 1003- | |
| 12 | 01643-32060 | WASHER | 1003- | |
| 13 | 01011-82020 | BOLT | 1003- | |
| 14 | 01580-12016 | NUT | 1003- | |
| 15 | 09414-00053 | CAP | 1003- | |
| 16 | 567-54-41350 | GUARD | 1003-1265 | |
| 17 | 01010-51225 | BOLT | 1003-1265 | |
| 18 | 01643-31232 | WASHER | 1003-1265 | |
| 19 | 566-54-12422 | STAY | 1003- | |
| 20 | 01010-51025 | BOLT | 1003- | |
| 21 | 01643-31032 | WASHER | 1003- | |
| 22 | 565-55-11211 | STAY | 1003- | |
| 23 | 01010-51025 | BOLT | 1003- | |
| 24 | 01643-31032 | WASHER | 1003- | |
| 25 | 01580-11008 | NUT | 1003- | |
| 26 | 566-06-16422 | MIRROR,REAR VIEW | 1003- | |
| 27 | 567-54-41261 | BRACKET | 1003- | |
| 27 | (\2\567-54-41260) | BRACKET | (1003-.) | |
| 28 | 567-54-41270 | BRACKET | 1003- | |
| 29 | 01010-50820 | BOLT | 1003- | |
| 30 | 01643-30823 | WASHER | 1003- | |
| 31 | 567-54-41250 | ROD | 1003- | |
| 32 | 01643-31032 | WASHER | 1003- | |
| 33 | 04050-13020 | PIN,COTTER | 1003- | |
| 34 | 567-54-41720 | FENDER,R.H. | 1003- | |
| 35 | 01010-51225 | BOLT | 1003- | |
| 36 | 01643-31232 | WASHER | 1003- | |
| 37 | 566-54-41532 | GUARD | 1003- | |
| 38 | 566-54-41542 | PLATE | 1003- | |
| 39 | 01010-51230 | BOLT | 1003- | |
| 40 | 01643-31232 | WASHER | 1003- | |
| 41 | 01580-11210 | NUT | 1003- | |
| 42 | 568-06-15910 | MIRROR,UNDER | 1003- |
