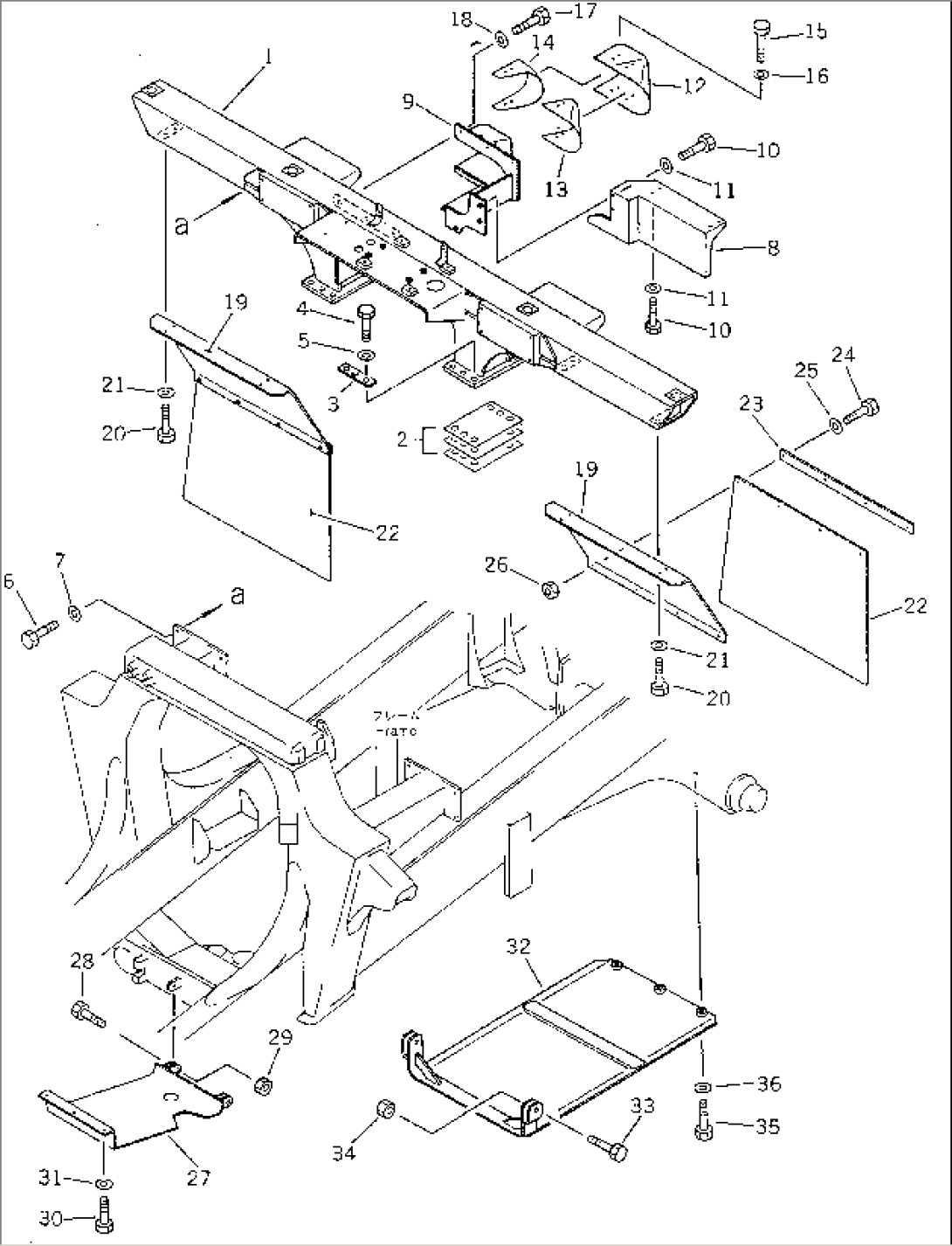

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-41453 | SUPPORT,REAR | 2001- | |
| 2 | 566-54-42250 | SHIM, 1.0MM | 2001- | |
| 3 | 566-54-42260 | SEAT | 2001- | |
| 4 | 01010-52090 | BOLT | 2001- | |
| 5 | 01643-32060 | WASHER | 2001- | |
| 6 | 01010-52045 | BOLT | 2001- | |
| 7 | 01643-32060 | WASHER | 2001- | |
| 8 | 566-54-41951 | COVER | 2001- | |
| 9 | 566-54-41941 | COVER | 2001- | |
| 10 | 01010-51020 | BOLT | 2001- | |
| 11 | 01643-31032 | WASHER | 2001- | |
| 12 | 566-54-42350 | COVER | 2001- | |
| 13 | 566-54-42360 | SEAT | 2001- | |
| 14 | 566-54-42370 | SEAT | 2001- | |
| 15 | 01010-51030 | BOLT | 2001- | |
| 16 | 01643-31032 | WASHER | 2001- | |
| 17 | 01010-51020 | BOLT | 2001- | |
| 18 | 01643-31032 | WASHER | 2001- | |
| 19 | 566-54-41462 | FENDER | 2001- | |
| 20 | 01010-51225 | BOLT | 2001- | |
| 21 | 01643-31232 | WASHER | 2001- | |
| 22 | 566-54-41532 | GUARD | 2001- | |
| 23 | 566-54-41542 | PLATE | 2001- | |
| 24 | 01010-51230 | BOLT | 2001- | |
| 25 | 01643-31232 | WASHER | 2001- | |
| 26 | 01580-11210 | NUT | 2001- | |
| 27 | 566-54-41512 | GUARD,ENGINE | 2001- | |
| 28 | 01010-52470 | BOLT | 2001- | |
| 29 | 01598-12425 | NUT | 2001- | |
| 30 | 01010-51635 | BOLT | 2001- | |
| 31 | 01643-31645 | WASHER | 2001- | |
| 32 | 566-54-41521 | GUARD,TRANSMISSION | 2001- | |
| 33 | 01010-52470 | BOLT | 2001- | |
| 34 | 01598-12425 | NUT | 2001- | |
| 35 | 01010-52065 | BOLT | 2001- | |
| 36 | 01643-32060 | WASHER | 2001- |
