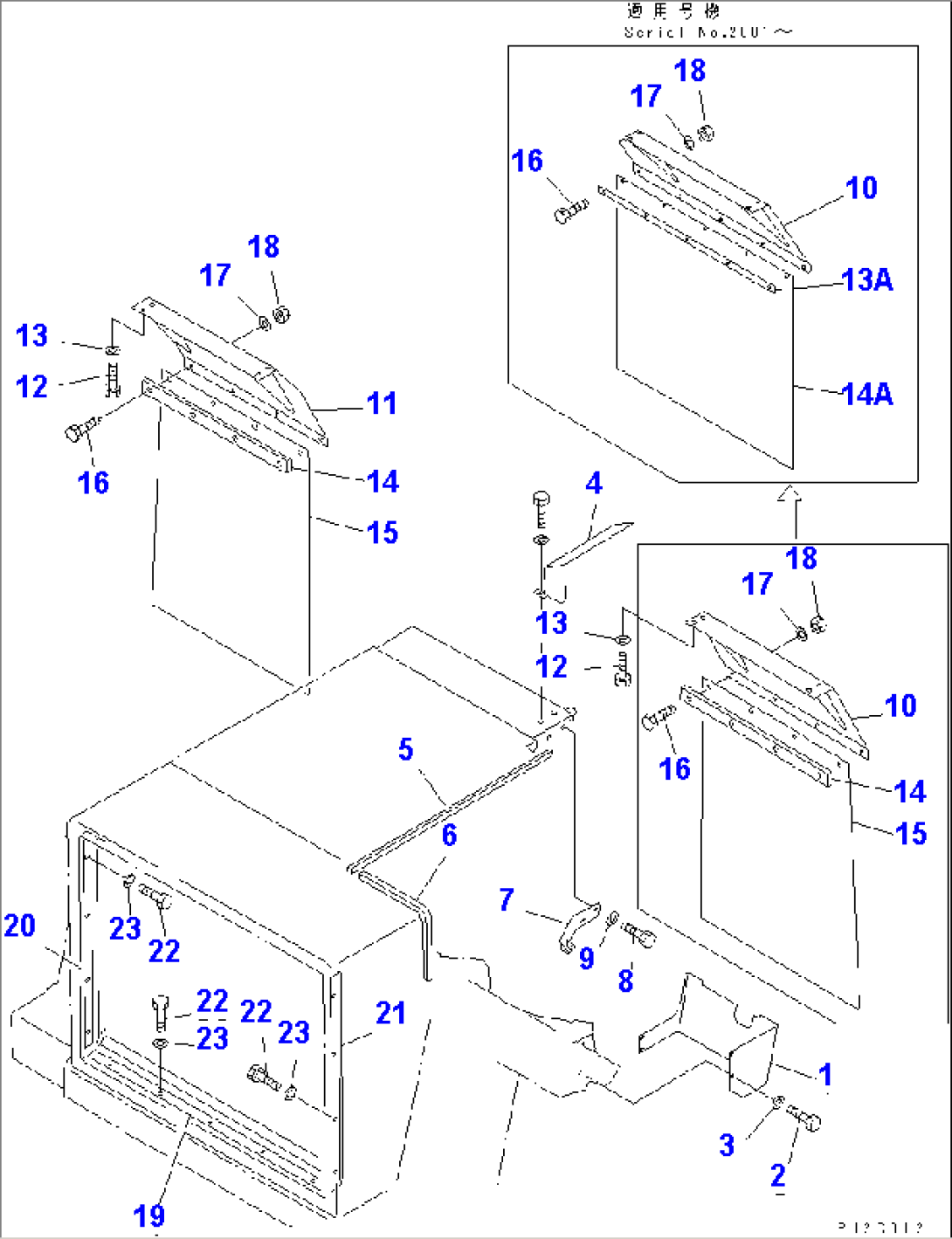

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-6A581 | COVER | 1001- | |
| 2 | 01010-81230 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 4 | 569-54-61290 | COVER | 1001- | |
| 5 | 561-54-61270 | SEAL | 1001- | |
| 6 | 566-54-6A280 | SEAL | 1001- | |
| 7 | 566-54-6A241 | BRACKET | 2001- | |
| 566-54-6A240 | BRACKET | 1001-1999 | ||
| 8 | 01010-81230 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 566-54-6A511 | FENDER | 2001- | |
| 566-54-6A510 | FENDER | 1001-1999 | ||
| 566-54-6A541 | FENDER | 2001- | ||
| 566-54-6A540 | FENDER,(FOR SIDE LAMP) | 1001-1999 | ||
| 11 | 566-54-6A520 | FENDER | 1001- | |
| 566-54-6A550 | FENDER,(FOR SIDE LAMP) (MUFFLERLESS) | 1001- | ||
| 566-84-6A110 | FENDER,(WITH MUFFLER) | 1001- | ||
| 12 | 01010-81230 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 13A | 566-54-41550 | PLATE | 2001- | |
| 14 | 566-54-41542 | PLATE | 2001- | |
| 566-54-41542 | PLATE | 1001-1999 | ||
| 14A | 566-54-6A571 | GUARD | 2123- | |
| \0\566-54-6A570 | GUARD | 2001-2122 | ||
| 15 | 566-54-6A531 | GUARD | 2123- | |
| \0\566-54-6A530 | GUARD | 2001-2122 | ||
| 566-54-6A530 | GUARD | 1001-1999 | ||
| 16 | 01010-81230 | BOLT | 2001- | |
| 01010-81230 | BOLT | 1001-1999 | ||
| 17 | 01643-31232 | WASHER | 2001- | |
| 01643-31232 | WASHER | 1001-1999 | ||
| 18 | 01580-11210 | NUT | 2001- | |
| 01580-11210 | NUT | 1001-1999 | ||
| 19 | 566-54-6A810 | BAFFLE | 1001- | |
| 20 | 566-54-6A820 | BAFFLE | 1001- | |
| 21 | 566-54-6A830 | BAFFLE | 1001- | |
| 22 | 01010-81230 | BOLT | 1001- | |
| 23 | 01643-31232 | WASHER | 1001- |
