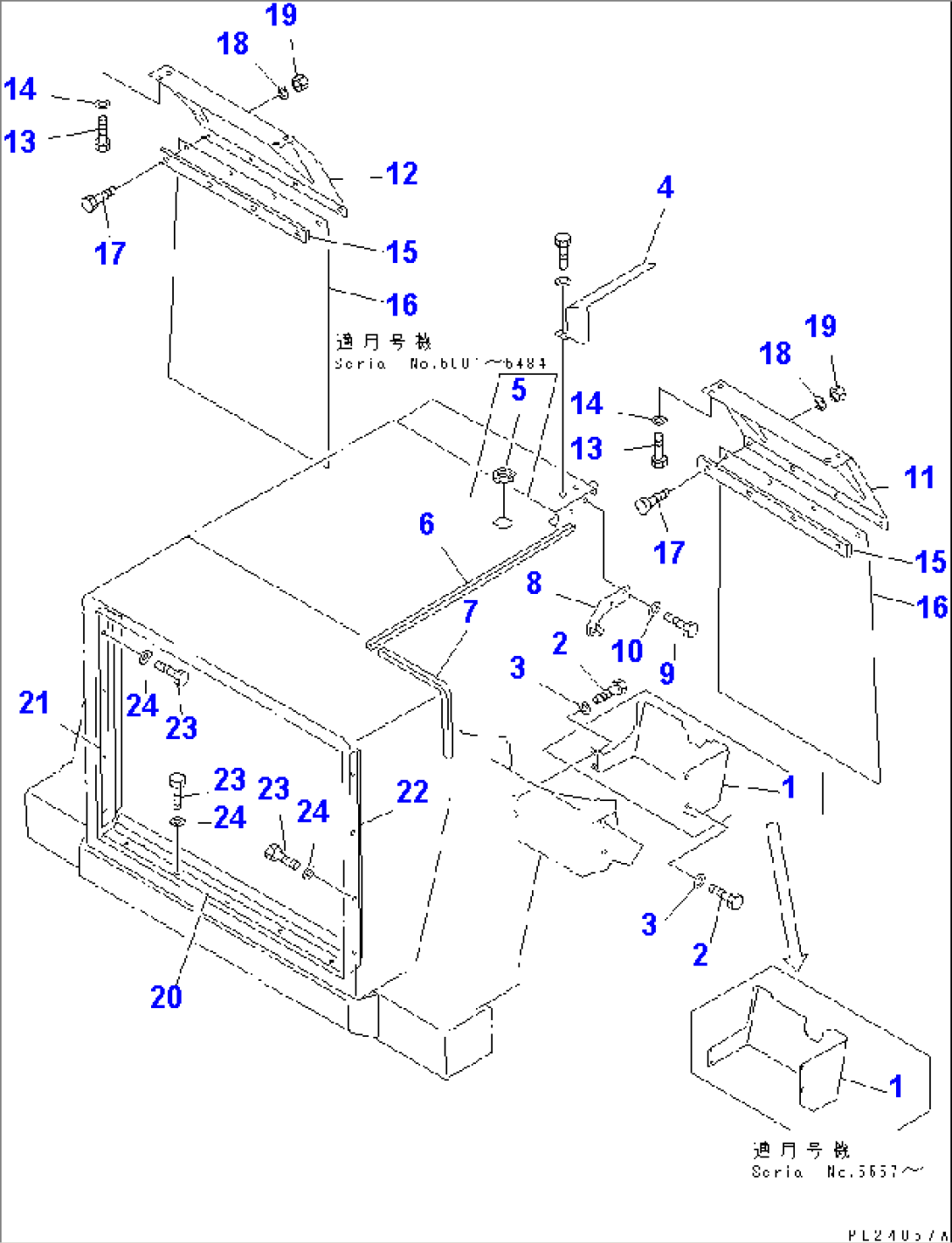

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-6A581 | COVER | 5557- | |
| 566-54-6A580 | COVER | 5001-5484 | ||
| 2 | 01010-81230 | BOLT | 5001- | |
| 3 | 01643-31232 | WASHER | 5001- | |
| 4 | 569-54-61290 | COVER | 5001- | |
| 5 | 391-40-13240 | GROMMET | 5001-5484 | |
| 6 | 561-54-61270 | SEAL | 5001- | |
| 7 | 566-54-6A280 | SEAL | 5001- | |
| 8 | 566-54-6A240 | BRACKET | 5001- | |
| 9 | 01010-81230 | BOLT | 5001- | |
| 10 | 01643-31232 | WASHER | 5001- | |
| 11 | 566-54-6A510 | FENDER | 5001- | |
| 566-54-6A540 | FENDER,(FOR SIDE LAMP) | 5001- | ||
| 12 | 566-54-6A520 | FENDER | 5001- | |
| 566-54-6A550 | FENDER,(FOR SIDE LAMP) (MUFFLERLESS) | 5001- | ||
| 13 | 01010-81230 | BOLT | 5001- | |
| 14 | 01643-31232 | WASHER | 5001- | |
| 15 | 566-54-41542 | PLATE | 5001- | |
| 16 | 566-54-6A530 | GUARD | 5001- | |
| 17 | 01010-81230 | BOLT | 5001- | |
| 18 | 01643-31232 | WASHER | 5001- | |
| 19 | 01580-11210 | NUT | 5001- | |
| 20 | 566-54-6A810 | BAFFLE | 5001- | |
| 21 | 566-54-6A820 | BAFFLE | 5001- | |
| 566-88-6C930 | BAFFLE,(FOR 4WD) | 5001- | ||
| 22 | 566-54-6A830 | BAFFLE | 5001- | |
| 566-88-6C920 | BAFFLE,(FOR 4WD) | 5001- | ||
| 23 | 01010-81230 | BOLT | 5001- | |
| 24 | 01643-31232 | WASHER | 5001- |
