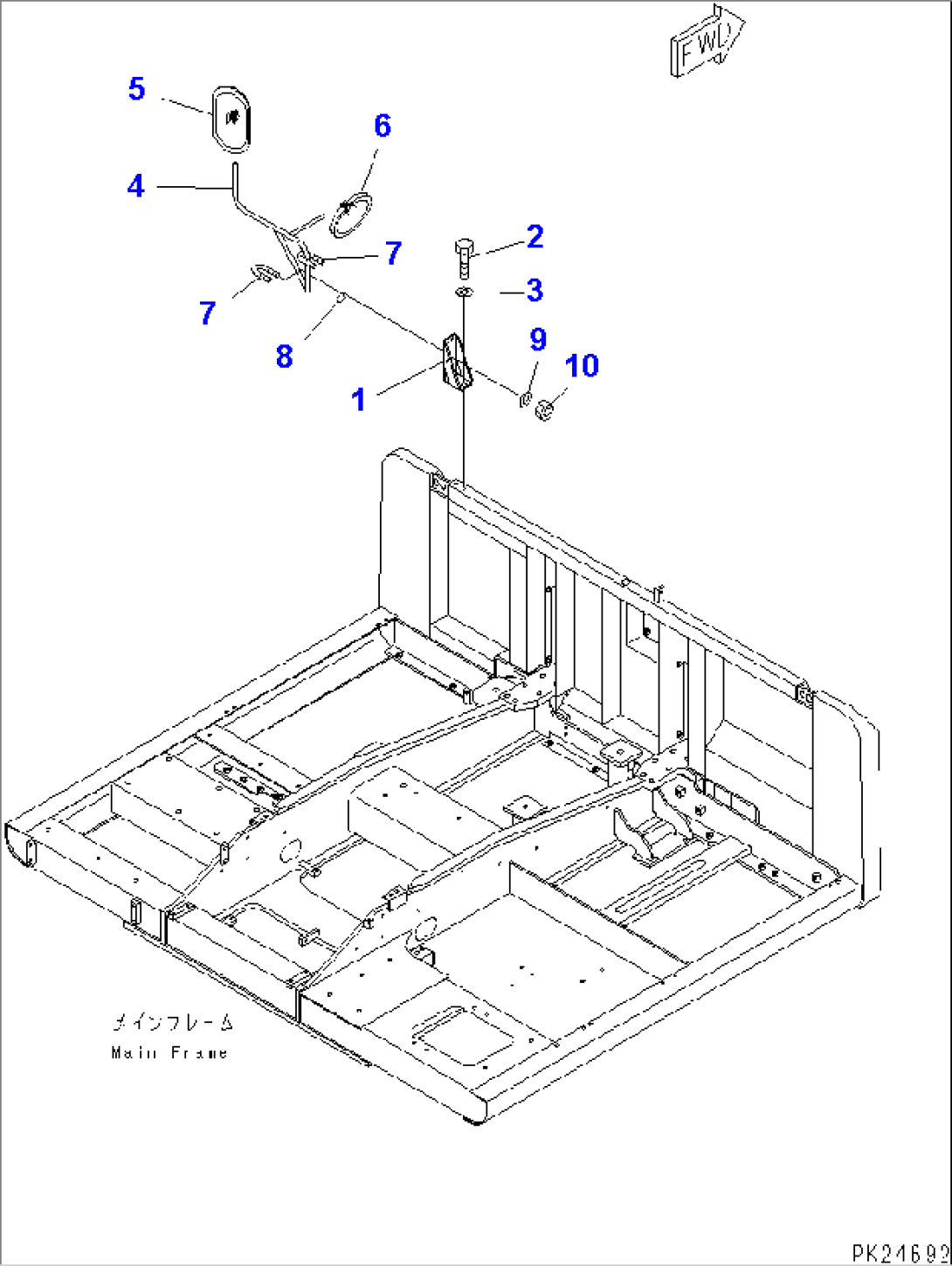

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8221-54-1541 | BRACKET | 1509- | |
| 8221-54-1540 | PLATE | 1005-1508 | ||
| 2 | 01010-81020 | BOLT | 1005- | |
| 3 | 01643-31032 | WASHER | 1005- | |
| 4 | 8221-54-1550 | STAY | 1005- | |
| 5 | 566-54-24370 | MIRROR | 1005- | |
| 6 | 568-06-15910 | MIRROR | 1005- | |
| 7 | 07283-32236 | CLIP | 1005- | |
| 8 | 07283-52232 | SEAT | 1005- | |
| 9 | 01643-31032 | WASHER | 1005- | |
| 10 | 01599-01011 | NUT | 1005- |
