| Item | Part No. | Part Name | Qty | Serial No. |

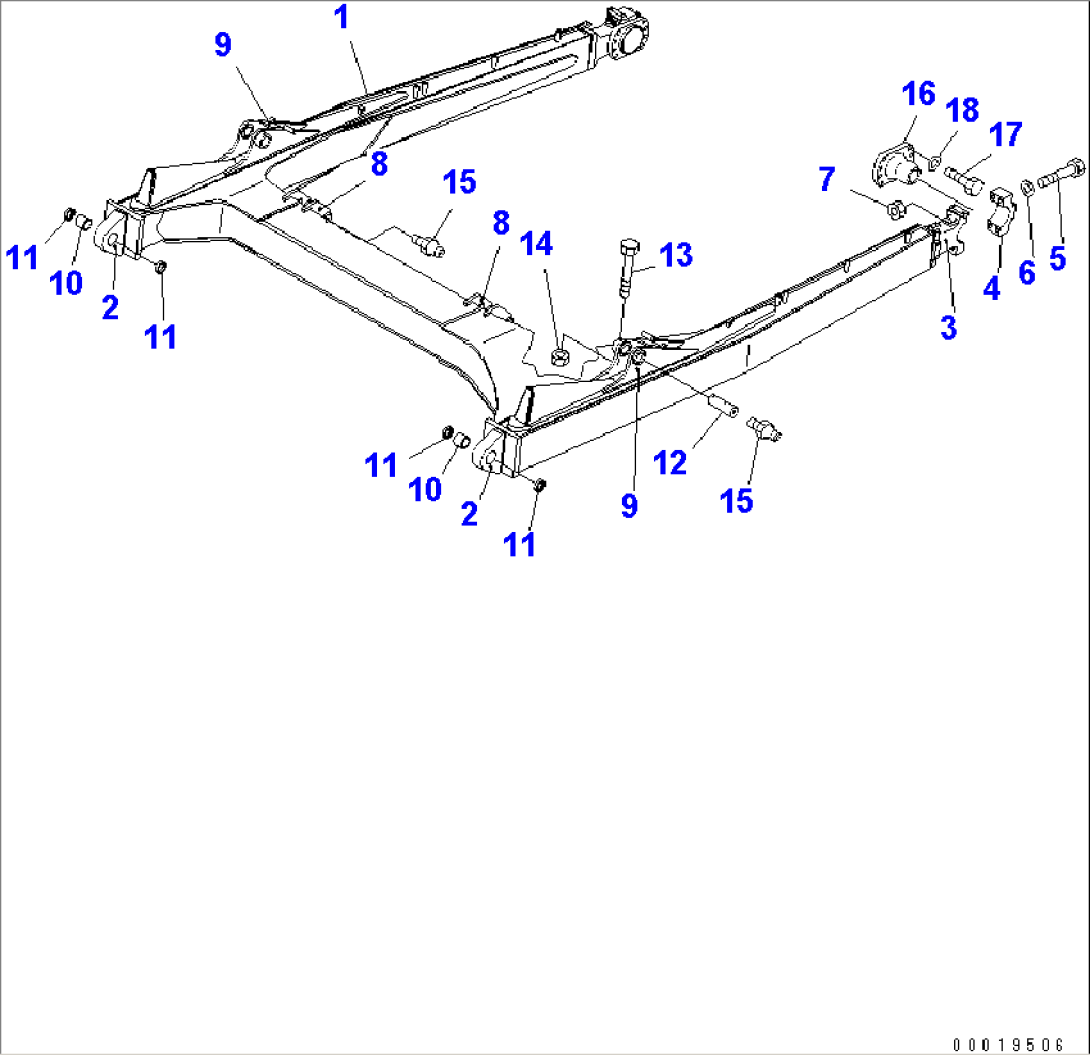

| 1 | \6\ | FRAME | 69001-69141 | |
| 2 | 14X-916-1A61 | PLATE | 69001-@ | |
| 14X-916-0010 | PIVOT ASS'Y | 69001-@ | ||
| 3 | \6\ | BEARING (KIT) | 69001-@ | |
| 4 | 14X-916-1170 | BEARING (KIT) | 69001-@ | |
| 5 | 01011-82465 | BOLT (KIT) | 69001-@ | |
| 6 | 01643-22460 | WASHER (KIT) | 69001-@ | |
| 7 | 130-70-13241 | NUT (KIT) | 69001-@ | |
| 8 | 14X-916-1130 | BRACKET,L.H. (WELDED) | 69001-@ | |
| 8 | 14X-916-1140 | BRACKET,R.H. (WELDED) | 69001-@ | |
| 9 | 14X-916-1151 | BRACKET,L.H. (WELDED) | 69001-69141 | |
| 9 | 14X-916-1161 | BRACKET,R.H. (WELDED) | 69001-69141 | |
| 10 | 07143-10606 | BUSHING | 69001-@ | |
| 11 | 07145-00060 | SEAL,DUST | 69001-@ | |
| 12 | 12F-954-1260 | PIN | 69001-@ | |
| 13 | 01011-81000 | BOLT | 69001-@ | |
| 14 | 01598-01011 | NUT | 69001-@ | |
| 15 | 07020-00000 | FITTING,GREASE | 69001-@ | |
| 16 | 14Z-71-33212 | TRUNNION | 69001-@ | |
| 17 | 01010-82065 | BOLT | 69001-@ | |
| 18 | 01643-32060 | WASHER | 69001-@ | |
| SERVICE KIT | ||||
| 3 | 14X-916-0010 | PIVOT ASS'Y | 69001-@ | |
| 3 | \6\ | BEARING | 69001-@ | |
| 4 | 14X-916-1170 | BEARING | 69001-@ | |
| 5 | 01011-82465 | BOLT | 69001-@ | |
| 6 | 01643-22460 | WASHER | 69001-@ | |
| 7 | 130-70-13241 | NUT | 69001-@ |
