| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-61-11110 | TUBE | A11001-- | |
| 2 | 07000-F2075 | O-RING | A11001-- | |
| 3 | 01010-81245 | BOLT | A11001-- | |
| 4 | 01643-31232 | WASHER | A11001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 2 s/n a11001 up
- Hydraulic system
- H0110 04a0 hydraulic tank suction line
Поиск по каталогу

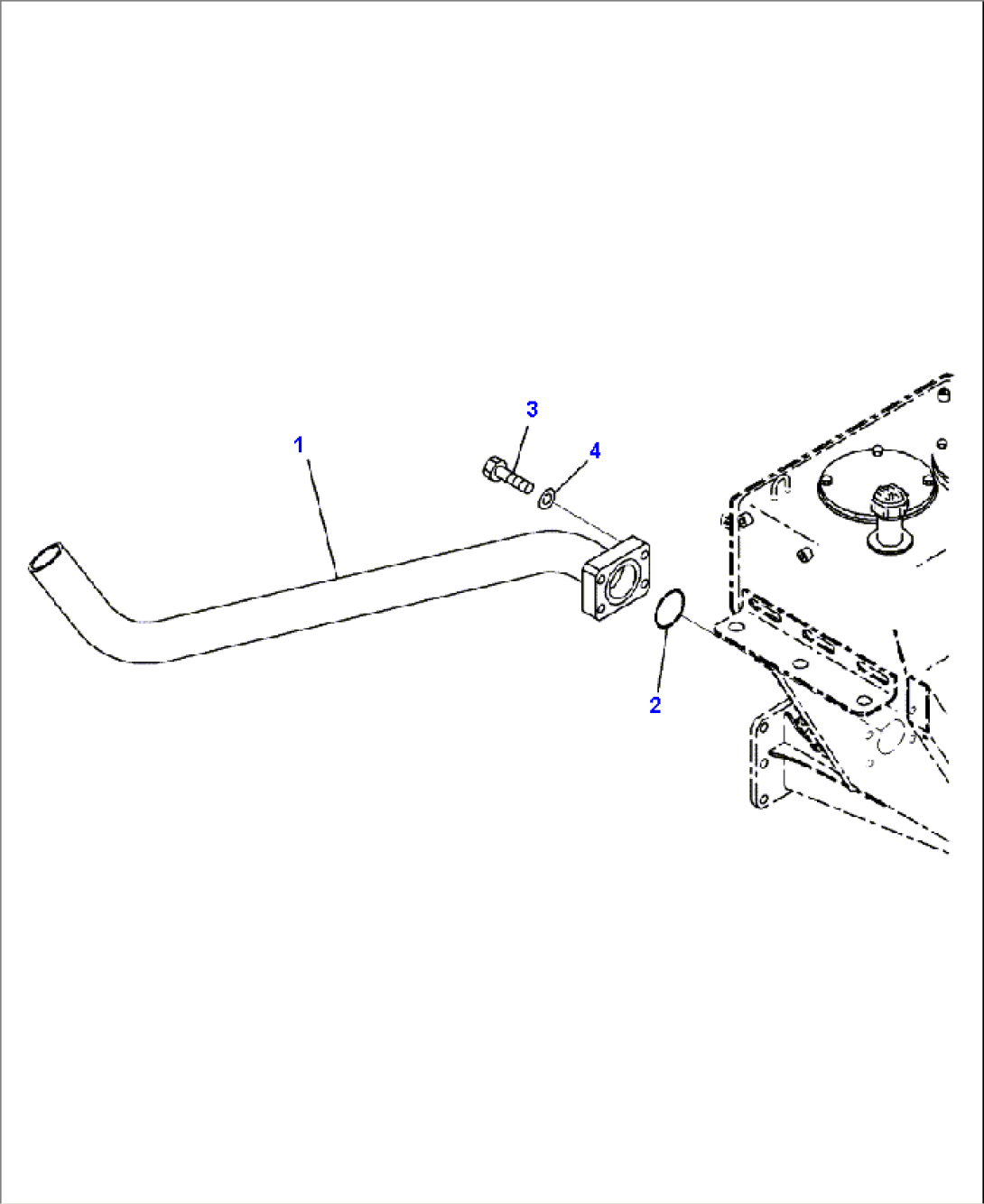

H0110-04A0 HYDRAULIC TANK SUCTION LINE
