| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81645 | BOLT | A47001-- | |
| 2 | 01643-31645 | WASHER | A47001-- | |
| 3 | 08034-40521 | BAND | A47001-- | |
| 4 | 423-60-35520 | TUBE | A47001-- | |
| 5 | 07000-13032 | O-RING | A47001-- | |
| 6 | 01010-81040 | BOLT | A47001-- | |
| 7 | 01643-31032 | WASHER | A47001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a47001 up
- Hydraulic system
- H0110 04a1 hydraulic tank breather tube mounting emergency steering
Поиск по каталогу

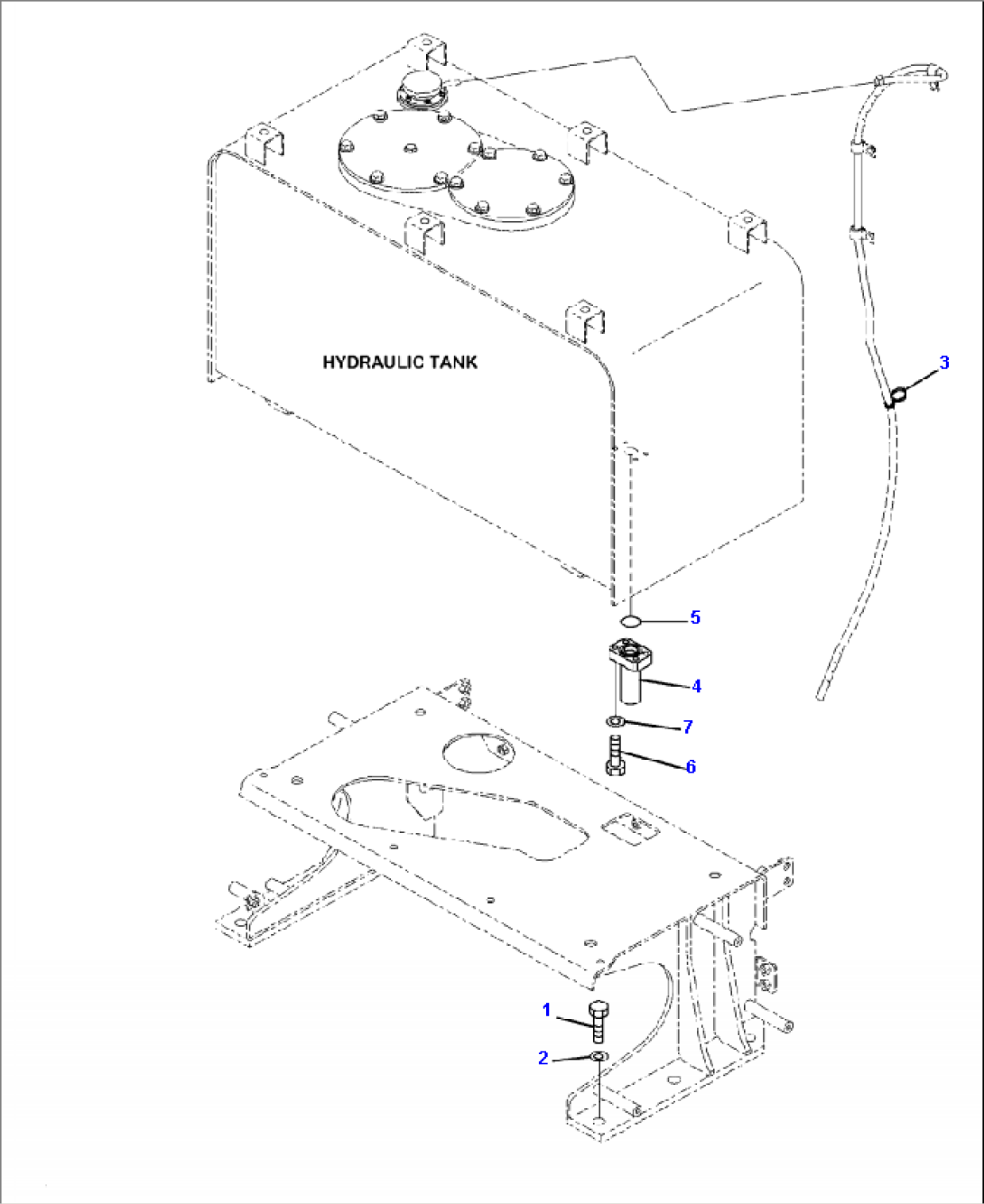

H0110-04A1 HYDRAULIC TANK BREATHER TUBE MOUNTING - EMERGENCY STEERING
