| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-21-55620 | PLUG, ROUND | A10677-- | |
| OR | ||||
| 2 | 708-8H-11530 | PLUG, HEX | A10001-A10676- | |
| 2 | 07002-11423 | O-RING | ||
| 3 | 723-90-66900 | VALVE, RELIEF | ||
| 4 | 700-80-64220 | RING, BACK-UP | ||
| 5 | 700-22-11410 | O-RING | ||
| 6 | 709-25-11390 | O-RING |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc210lc 10 s/n a10001 up
- Hydraulic system
- H0120 001011 main control valve 1 service valve, inner parts (11/20)
Поиск по каталогу

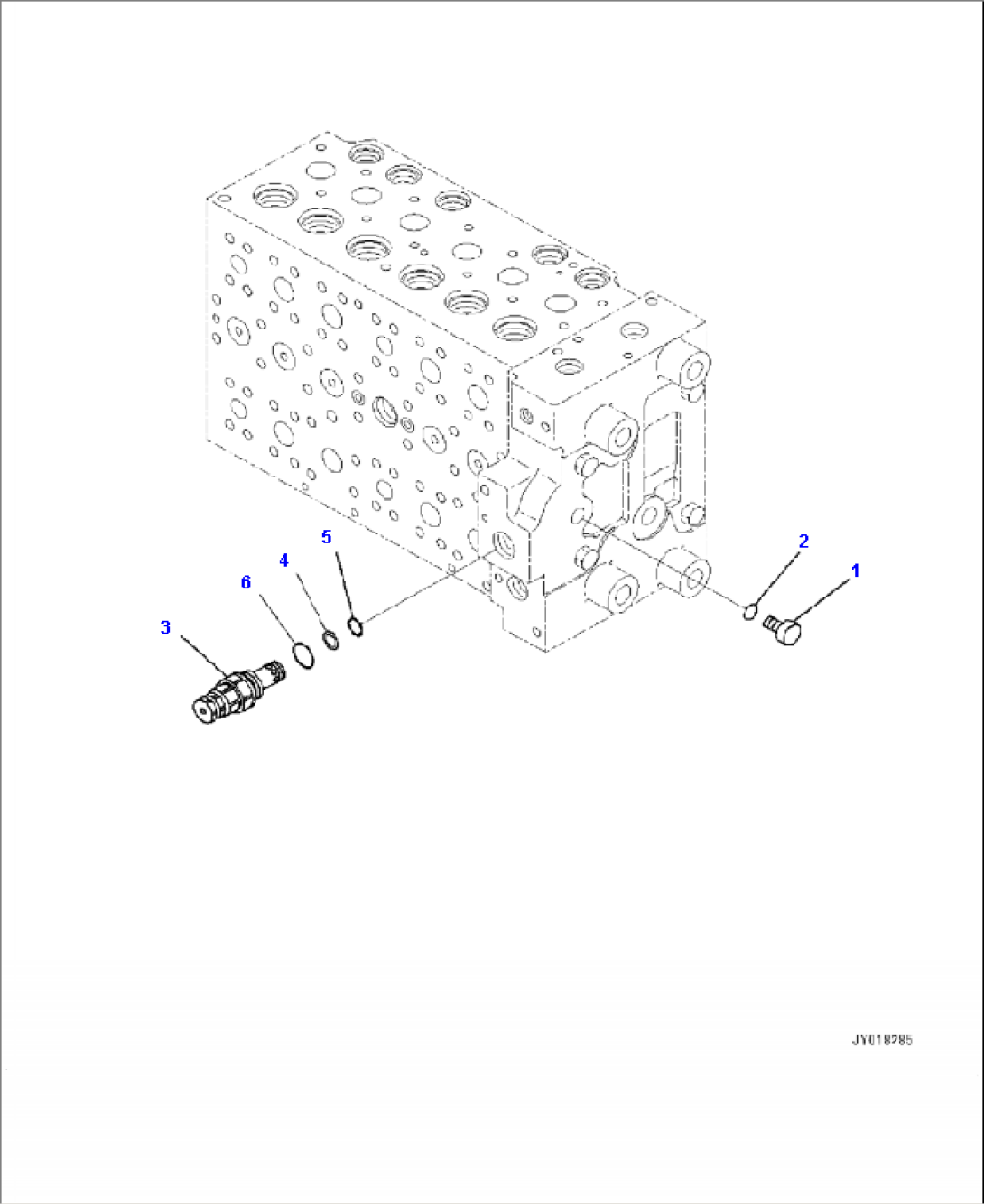

H0120-001011 MAIN CONTROL VALVE 1-SERVICE VALVE, INNER PARTS (11/20)
