| Item | Part No. | Part Name | Qty | Serial No. |
| (NSS) | BODY SUBASSEMBLY | |||
| 1 | 723-46-45700 | VALVE ASSEMBLY | ||
| 2 | 700-93-11320 | O-RING | ||
| 3 | 723-46-41950 | RING, BACK-UP | ||
| 4 | 07002-13634 | O-RING | ||
| 5 | 01252-60845 | BOLT, HEXAGON SOCKET HEAD | ||
| 6 | 01643-50823 | WASHER |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc210ll 10 s/n a52001 up
- Hydraulic system
- H0120 001018 main control valve 1 service valve (18/20)
Поиск по каталогу

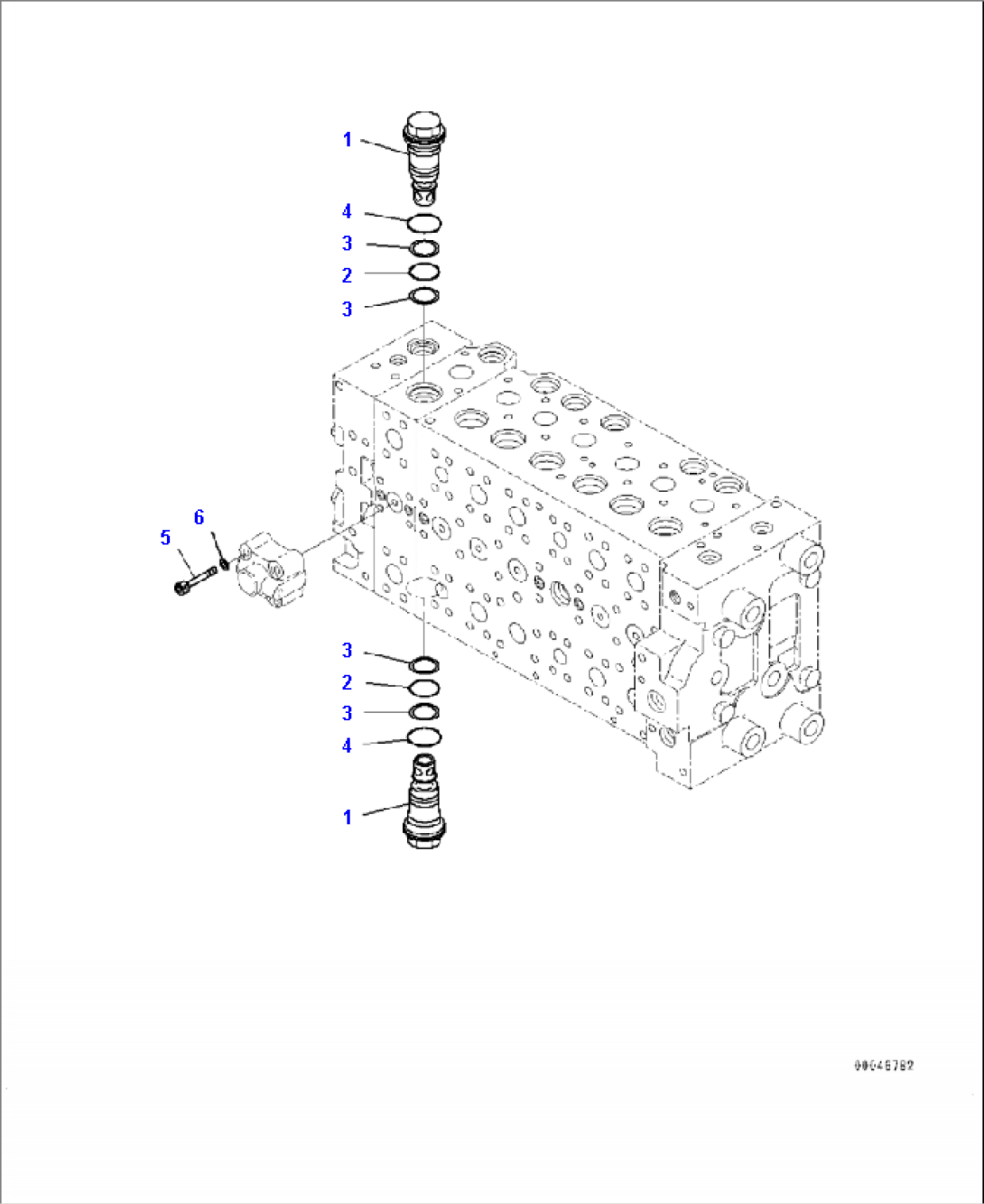

H0120-001018 MAIN CONTROL VALVE 1-SERVICE VALVE (18/20)
