| Item | Part No. | Part Name | Qty | Serial No. |

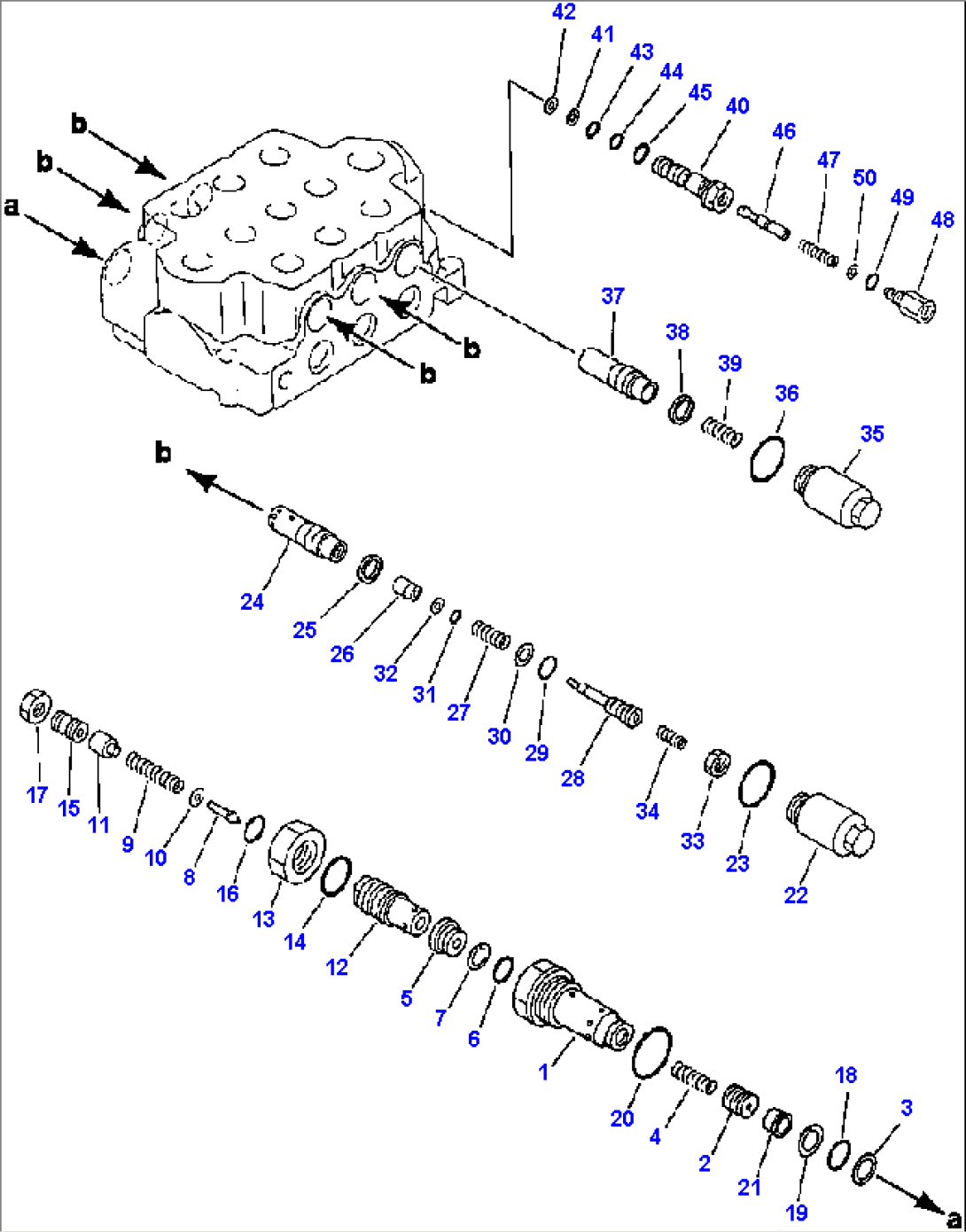

| VALVE ASSEMBLY (SEE FIG. H0120-01A6 ) | A70001 -- | |||
| 709-10-51301 | VALVE ASSEMBLY, RELIEF | A70001 -- | ||
| 1 | (NSS) | SLEEVE | A70001 -- | |
| 2 | (NSS) | VALVE | A70001 -- | |
| 3 | 709-10-51180 | RING, SNAP | A70001 -- | |
| 4 | 709-10-51140 | SPRING | A70001 -- | |
| 5 | 709-10-51150 | SEAT | A70001 -- | |
| 6 | 07000-13022 | O-RING | A70001 -- | |
| 7 | 07001-03022 | RING, BACK-UP | A70001 -- | |
| 8 | 700-80-61190 | POPPET | A70001 -- | |
| 9 | 700-90-51160 | SPRING | A70001 -- | |
| 10 | 700-80-51240 | SPACER | A70001 -- | |
| 11 | 709-10-51170 | RETAINER | A70001 -- | |
| 12 | 709-10-51160 | HOLDER | A70001 -- | |
| 13 | 01583-13621 | NUT | A70001 -- | |
| 14 | 07002-03634 | O-RING | A70001 -- | |
| 15 | 700-20-63141 | SCREW | A70001 -- | |
| 16 | 07000-02015 | O-RING | A70001 -- | |
| 17 | 01583-11811 | NUT | A70001 -- | |
| 18 | 07000-13032 | O-RING | A70001 -- | |
| 19 | 07001-03032 | RING | A70001 -- | |
| 20 | 07002-05234 | O-RING | A70001 -- | |
| 21 | 709-10-51240 | RETAINER | A70001 -- | |
| 709-10-62101 | VALVE ASSEMBLY, SUCTION AND SAFETY | A70001 -- | ||
| 22 | 700-90-61211 | SLEEVE | A70001 -- | |
| 23 | 07002-03634 | O-RING | A70001 -- | |
| 24 | (NSS) | VALVE | A70001 -- | |
| 25 | (NSS) | SEAL | A70001 -- | |
| 26 | (NSS) | POPPET | A70001 -- | |
| 27 | (NSS) | SPRING | A70001 -- | |
| 28 | (NSS) | PISTON | A70001 -- | |
| 29 | (NSS) | O-RING | A70001 -- | |
| 30 | (NSS) | RING, BACK-UP | A70001 -- | |
| 31 | (NSS) | O-RING | A70001 -- | |
| 32 | (NSS) | SEAL | A70001 -- | |
| 33 | (NSS) | NUT | A70001 -- | |
| 34 | 700-90-61170 | SPRING | A70001 -- | |
| 700-90-74001 | VALVE ASSEMBLY, SUCTION | A70001 -- | ||
| 35 | 700-90-61211 | SLEEVE | A70001 -- | |
| 36 | 07002-03634 | O-RING | A70001 -- | |
| 37 | (NSS) | VALVE | A70001 -- | |
| 38 | (NSS) | SEAL | A70001 -- | |
| 39 | 700-90-61170 | SPRING | A70001 -- | |
| 709-10-68401 | VALVE ASSEMBLY, FLOAT SELECTOR | A70001 -- | ||
| 40 | (NSS) | SLEEVE | A70001 -- | |
| 41 | 709-10-68121 | WASHER | A70001 -- | |
| 42 | 700-20-51240 | RING | A70001 -- | |
| 43 | 700-22-11410 | O-RING | A70001 -- | |
| 44 | 07000-12016 | O-RING | A70001 -- | |
| 45 | 07002-12434 | O-RING | A70001 -- | |
| 46 | (NSS) | PISTON | A70001 -- | |
| 47 | 709-12-12520 | SPRING | A70001 -- | |
| 48 | 709-10-68170 | NIPPLE | A70001 -- | |
| 49 | 07000-02011 | O-RING | A70001 -- | |
| 50 | 709-10-68180 | SHIM, 0.2 MM | A70001 -- |
