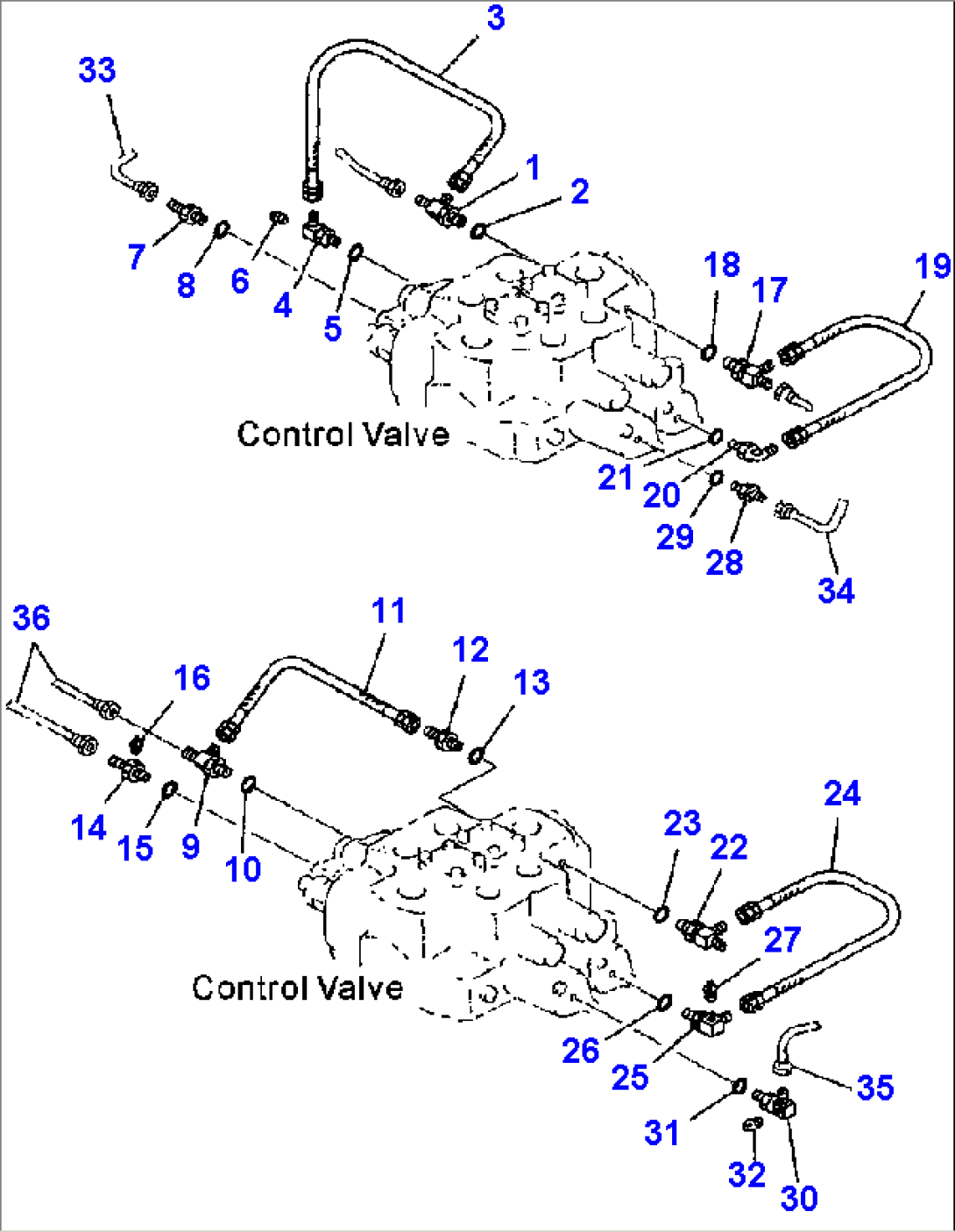

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 709-12-12740 | TEE | A50001-- | |
| 2 | 07002-21423 | O-RING | A50001-- | |
| 3 | 07102-20305 | HOSE | A50001-- | |
| 4 | 709-12-12750 | ELBOW | A50001-- | |
| 5 | 07002-22034 | O-RING | A50001-- | |
| 6 | 07042-20108 | PLUG | A50001-- | |
| 7 | 07230-20315 | UNION | A50001-- | |
| 8 | 07002-22034 | O-RING | A50001-- | |
| 9 | 427-62-11830 | TEE | A50001-- | |
| 10 | 07002-22034 | O-RING | A50001-- | |
| 11 | 07102-20203 | HOSE | A50001-- | |
| 12 | 07230-20210 | UNION | A50001-- | |
| 13 | 07002-21423 | O-RING | A50001-- | |
| 14 | 427-62-11840 | UNION | A50001-- | |
| 15 | 07002-22034 | O-RING | A50001-- | |
| 16 | 07042-20108 | PLUG | A50001-- | |
| 17 | 709-12-12740 | TEE | A50001-- | |
| 18 | 07002-21423 | O-RING | A50001-- | |
| 19 | 07102-20304 | HOSE | A50001-- | |
| 20 | 07235-10315 | ELBOW | A50001-- | |
| 21 | 07002-22034 | O-RING | A50001-- | |
| 22 | 709-12-12740 | TEE | A50001-- | |
| 23 | 07002-21423 | O-RING | A50001-- | |
| 24 | 07102-20304 | HOSE | A50001-- | |
| 25 | 07235-50315 | ELBOW | A50001-- | |
| 26 | 07002-22034 | O-RING | A50001-- | |
| 27 | 07042-20108 | PLUG | A50001-- | |
| 28 | 07230-20315 | UNION | A50001-- | |
| 29 | 07002-22034 | O-RING | A50001-- | |
| 30 | 07235-50315 | ELBOW | A50001-- | |
| 31 | 07002-22034 | O-RING | A50001-- | |
| 32 | 07042-20108 | PLUG | A50001-- | |
| 33 | TUBE (SEE FIG. H4200-18A0 ) | A50001-- | ||
| 34 | TUBE (SEE FIG. H4200-19A0 ) | A50001-- | ||
| 35 | TUBE (SEE FIG. H4200-19A0 ) | A50001-- | ||
| 36 | TUBE (SEE FIG. H4200-18A0 ) | A50001-- |
