| Item | Part No. | Part Name | Qty | Serial No. |

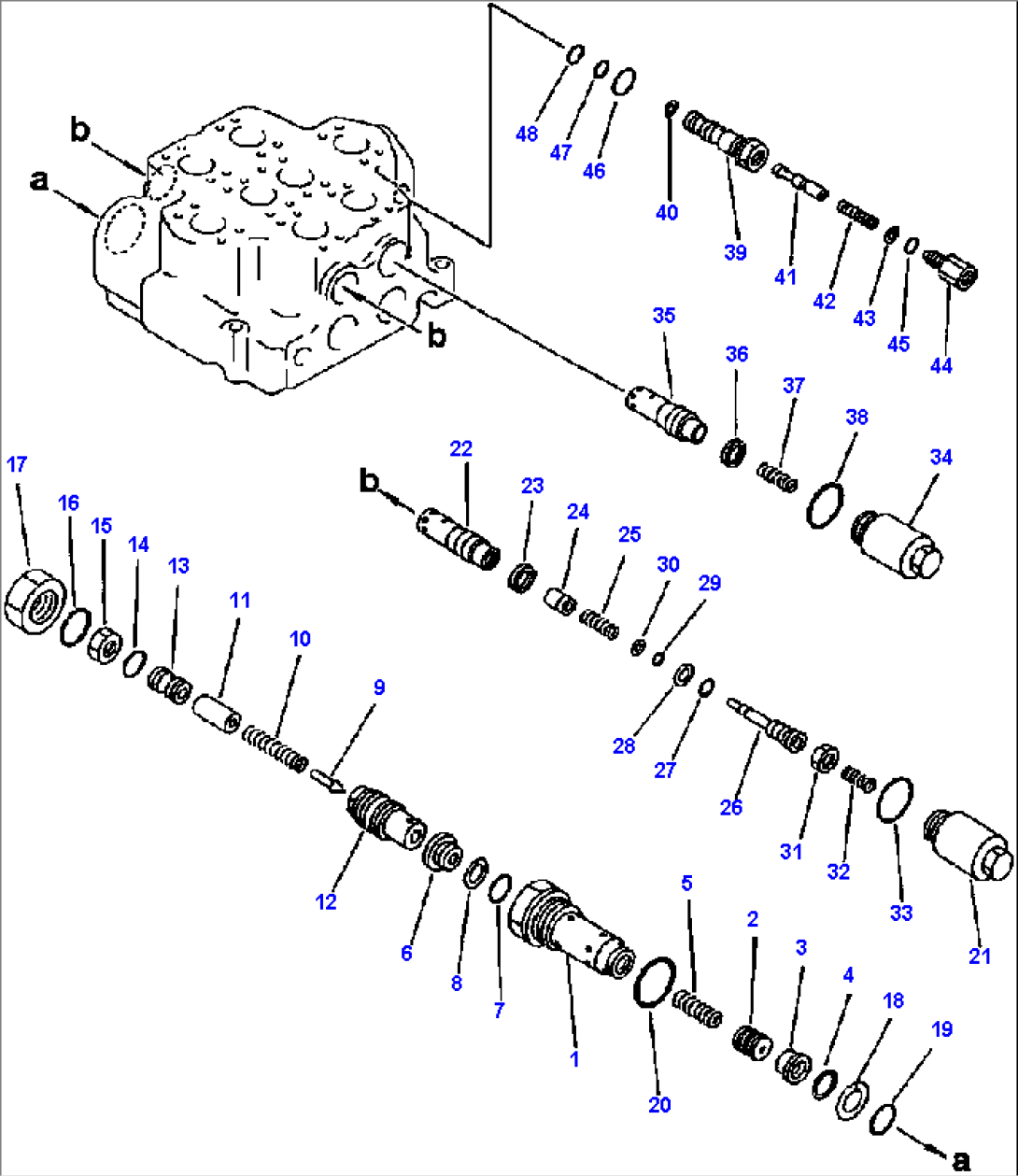

| VALVE ASSEMBLY (SEE FIG. H0120-03A0 ) | A50001-- | |||
| 709-10-55900 | VALVE ASSEMBLY, RELIEF | A50001-- | ||
| 709-10-54300 | VALVE ASSEMBLY, RELIEF | A50001-- | ||
| 1 | (NSS) | SLEEVE | A50001-- | |
| 2 | (NSS) | VALVE | A50001-- | |
| 3 | (NSS) | RETAINER | A50001-- | |
| 4 | (NSS) | RING, SNAP | A50001-- | |
| 5 | (NSS) | SPRING | A50001-- | |
| 6 | (NSS) | SEAT | A50001-- | |
| 7 | (NSS) | O-RING | A50001-- | |
| 8 | (NSS) | RING, BACK-UP | A50001-- | |
| 9 | (NSS) | POPPET | A50001-- | |
| 10 | (NSS) | SPRING | A50001-- | |
| 11 | (NSS) | RETAINER | A50001-- | |
| 12 | (NSS) | HOLDER | A50001-- | |
| 13 | (NSS) | SCREW | A50001-- | |
| 14 | (NSS) | O-RING | A50001-- | |
| 15 | (NSS) | NUT | A50001-- | |
| 16 | (NSS) | O-RING | A50001-- | |
| 17 | (NSS) | NUT | A50001-- | |
| 18 | 07001-03032 | RING, BACK-UP | A50001-- | |
| 19 | 07000-13032 | O-RING | A50001-- | |
| 20 | 07002-15234 | O-RING | A50001-- | |
| 709-10-62201 | VALVE ASSEMBLY, SUCTION AND SAFETY | A50001-- | ||
| 21 | (NSS) | SLEEVE | A50001-- | |
| 22 | (NSS) | VALVE | A50001-- | |
| 23 | (NSS) | SEAL | A50001-- | |
| 24 | (NSS) | POPPET | A50001-- | |
| 25 | (NSS) | SPRING | A50001-- | |
| 26 | (NSS) | PISTON | A50001-- | |
| 27 | (NSS) | O-RING | A50001-- | |
| 28 | (NSS) | RING, BACK-UP | A50001-- | |
| 29 | (NSS) | O-RING | A50001-- | |
| 30 | (NSS) | SEAL | A50001-- | |
| 31 | (NSS) | NUT | A50001-- | |
| 32 | (NSS) | SPRING | A50001-- | |
| 33 | 07002-03634 | O-RING | A50001-- | |
| 700-90-74001 | SUCTION VALVE ASSEMBLY | A50001-- | ||
| 34 | 700-90-61211 | SLEEVE | A50001-- | |
| 35 | (NSS) | VALVE | A50001-- | |
| 36 | (NSS) | SEAL | A50001-- | |
| 37 | 700-90-61170 | SPRING | A50001-- | |
| 38 | 07002-03634 | O-RING | A50001-- | |
| 709-10-68401 | VALVE ASSEMBLY, FLOAT SELECTOR | A50001-- | ||
| 39 | (NSS) | SLEEVE | A50001-- | |
| 40 | 709-10-68121 | SEAT | A50001-- | |
| 41 | (NSS) | PISTON | A50001-- | |
| 42 | 709-12-12520 | SPRING | A50001-- | |
| 43 | 709-10-68180 | SHIM, 0.2 MM | A50001-- | |
| 44 | 709-10-68170 | NIPPLE | A50001-- | |
| 45 | 07000-02011 | O-RING | A50001-- | |
| 46 | 07002-12434 | O-RING | A50001-- | |
| 47 | 07000-12016 | O-RING | A50001-- | |
| 48 | 700-22-11410 | O-RING | A50001-- |
