| Item | Part No. | Part Name | Qty | Serial No. |
| VALVE ASSEMBLY (SEE FIG. H0120-01A0) | A47001-- | |||
| 1 | 723-40-91200 | VALVE ASSEMBLY | A47001-- | |
| 2 | 709-25-11390 | O-RING | A47001-- | |
| 3 | 723-90-65400 | VALVE ASSEMBLY | A47001-- | |
| 4 | 07000-13024 | O-RING | A47001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a47001 up
- Hydraulic system
- H0120 05a0 control valve 2 spool valve (5/8)
Поиск по каталогу

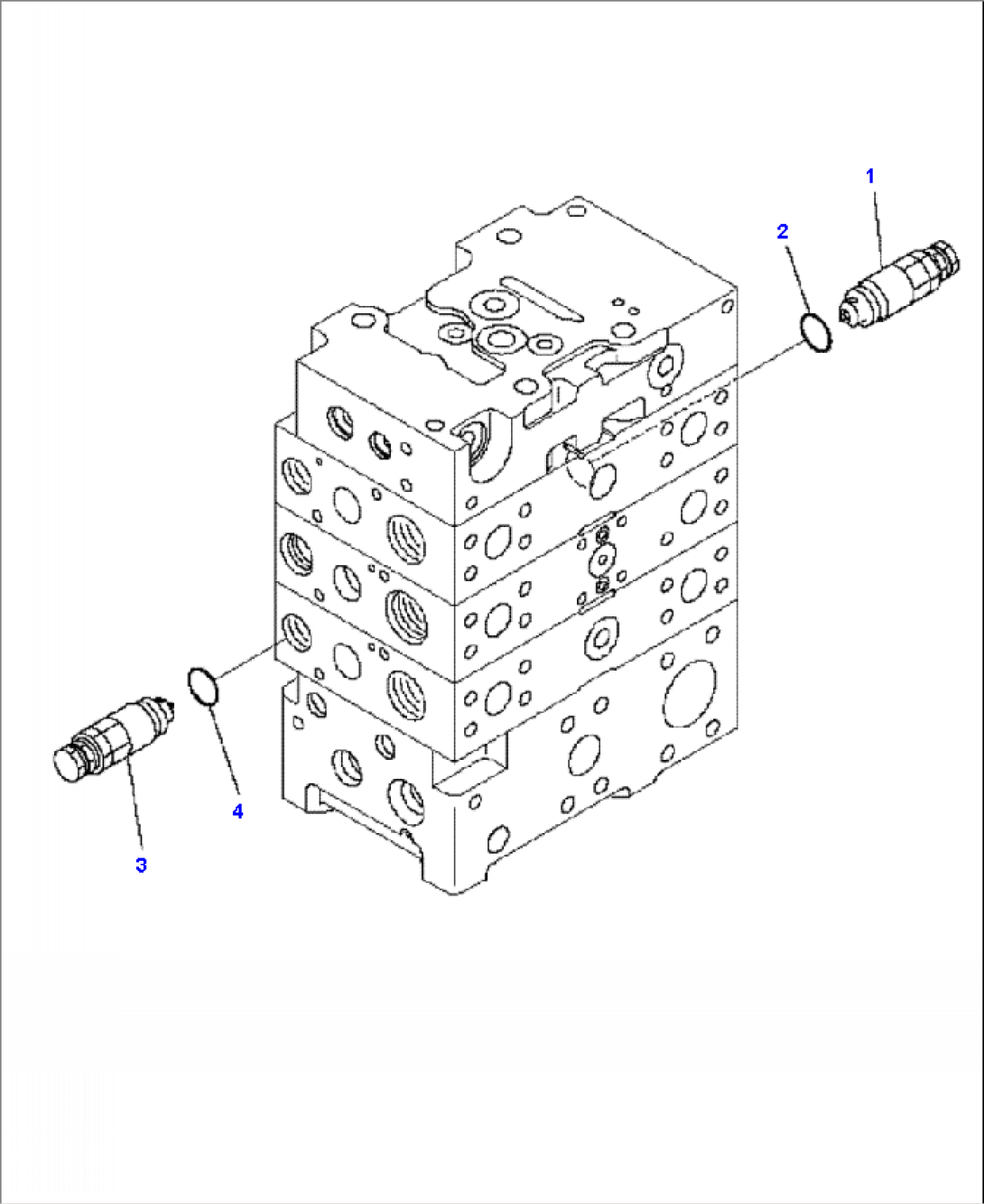

H0120-05A0 CONTROL VALVE 2-SPOOL VALVE (5/8)
