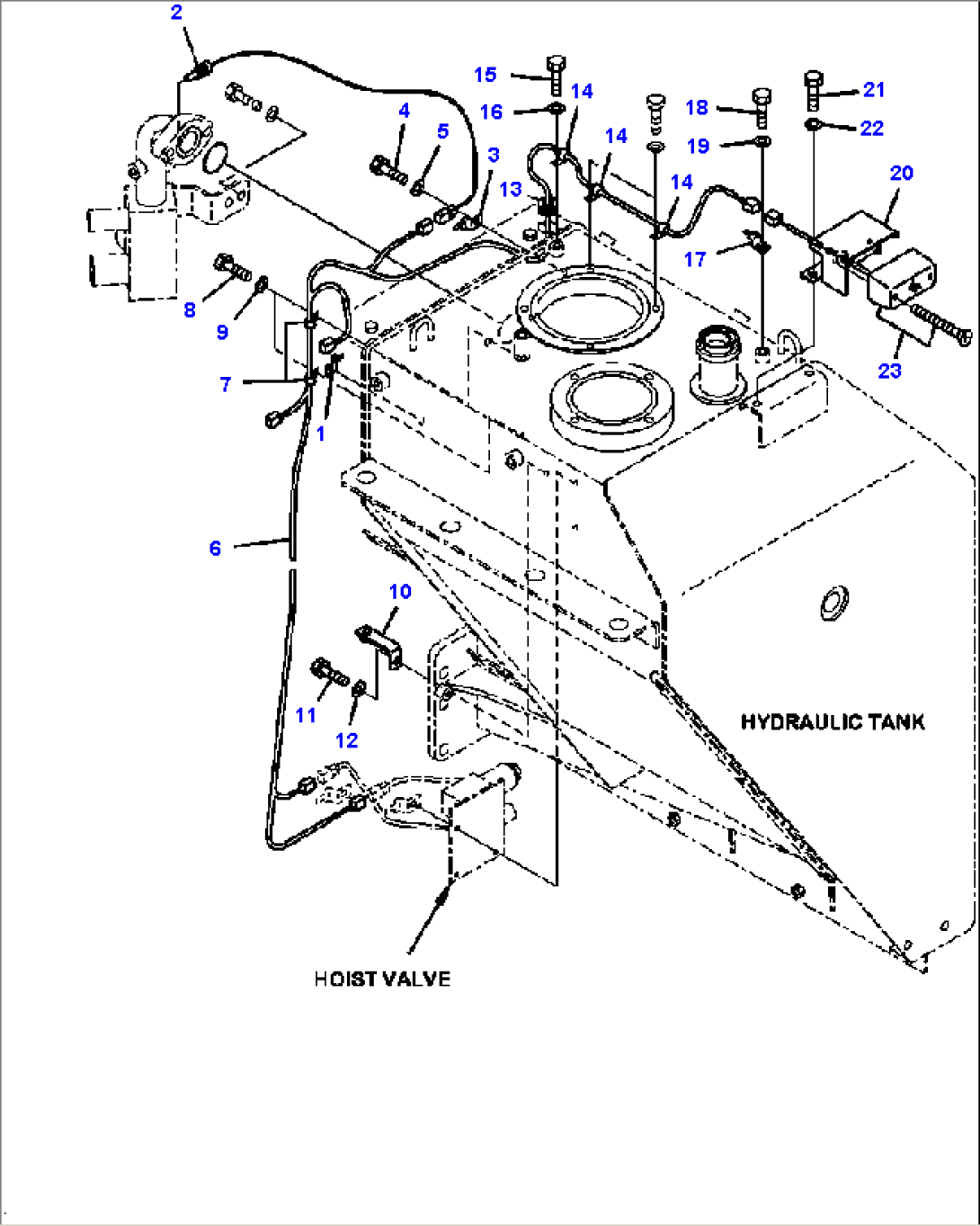

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08193-21012 | CLIP | A11001-- | |
| 2 | 7861-93-3320 | SENSOR | A11001-- | |
| 3 | 08193-21012 | CLIP | A11001-- | |
| 4 | 01010-81020 | BOLT | A11001-- | |
| 5 | 01643-31032 | WASHER | A11001-- | |
| 6 | 56B-06-27151 | WIRING HARNESS | A11001-- | |
| 7 | 04434-51010 | CLIP | A11001-- | |
| 8 | 01010-81016 | BOLT | A11001-- | |
| 9 | 01643-31032 | WASHER | A11001-- | |
| 10 | 425-03-11420 | PLATE | A11001-- | |
| 11 | 01010-81020 | BOLT | A11001-- | |
| 12 | 01643-31032 | WASHER | A11001-- | |
| 13 | 08037-02512 | GROMMET | A11001-- | |
| 14 | 04434-51010 | CLIP | A11001-- | |
| 15 | 01010-81016 | BOLT | A11001-- | |
| 16 | 01643-31032 | WASHER | A11001-- | |
| 17 | 08193-21012 | CLIP | A11001-- | |
| 18 | 01010-81016 | BOLT | A11001-- | |
| 19 | 01643-31032 | WASHER | A11001-- | |
| 20 | 56D-06-21610 | BRACKET | A11001-- | |
| 21 | 01010-81025 | BOLT | A11001-- | |
| 22 | 01643-31032 | WASHER | A11001-- | |
| 23 | 56B-06-11641 | LAMP, TURN SIGNAL | A11001-- |
