| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81030 | BOLT | ||
| 2 | 01643-31032 | WASHER | ||
| 3 | 421-62-54350 | BRACKET | ||
| 4 | 01010-81635 | BOLT | ||
| 5 | 01643-31645 | WASHER |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa470 8 s/n a49001 up
- Hydraulic system
- H0210 002026 hydraulic pump (with auxiliary steering) bracket (1/2)
Поиск по каталогу

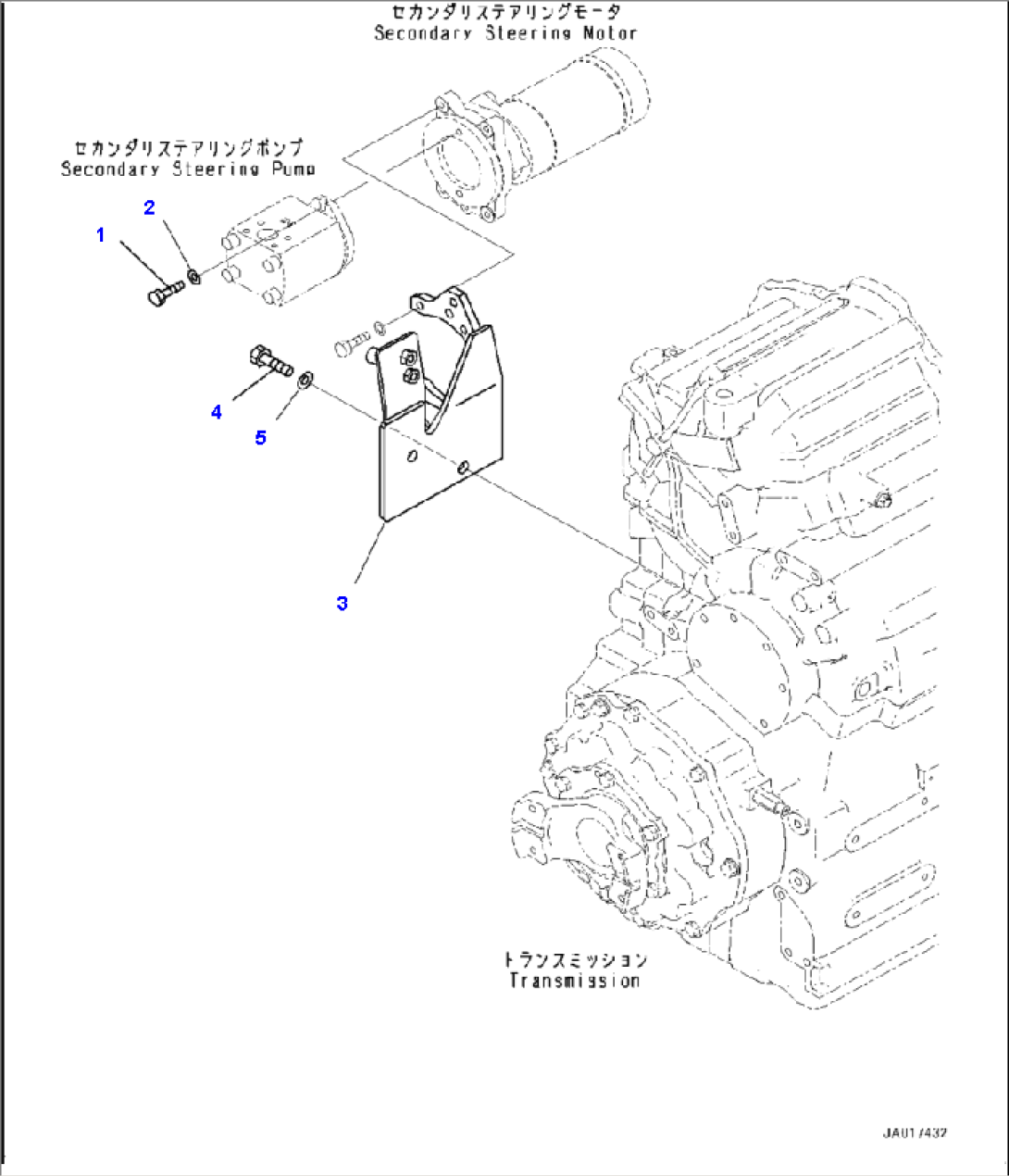

H0210-002026 HYDRAULIC PUMP (WITH AUXILIARY STEERING) BRACKET (1/2)
