| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-01-31141 | BOLT | A88001-- | |
| 2 | 07005-03016 | GASKET | A88001-- | |
| 3 | 207-01-31150 | GAUGE | A88001-- | |
| 4 | 208-01-75210 | TUBE | A88001-- | |
| 5 | 07040-11209 | PLUG | A88001-- | |
| 6 | 07002-11223 | O-RING | A88001-- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400lc 8 s/n a88001 up
- Hydraulic system
- H0210 01a0 main pump mounting
Поиск по каталогу

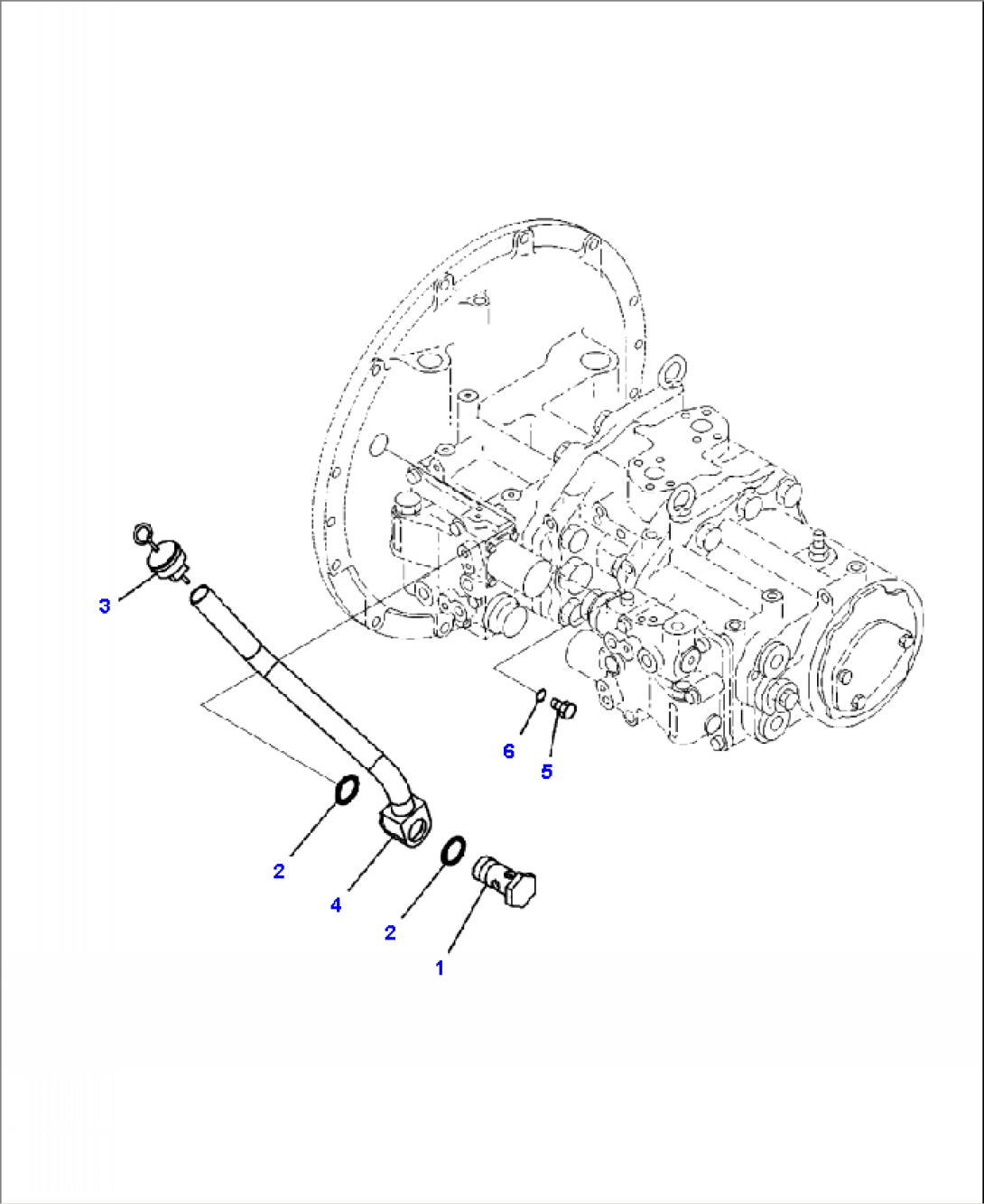

H0210-01A0 MAIN PUMP MOUNTING
