| Item | Part No. | Part Name | Qty | Serial No. |

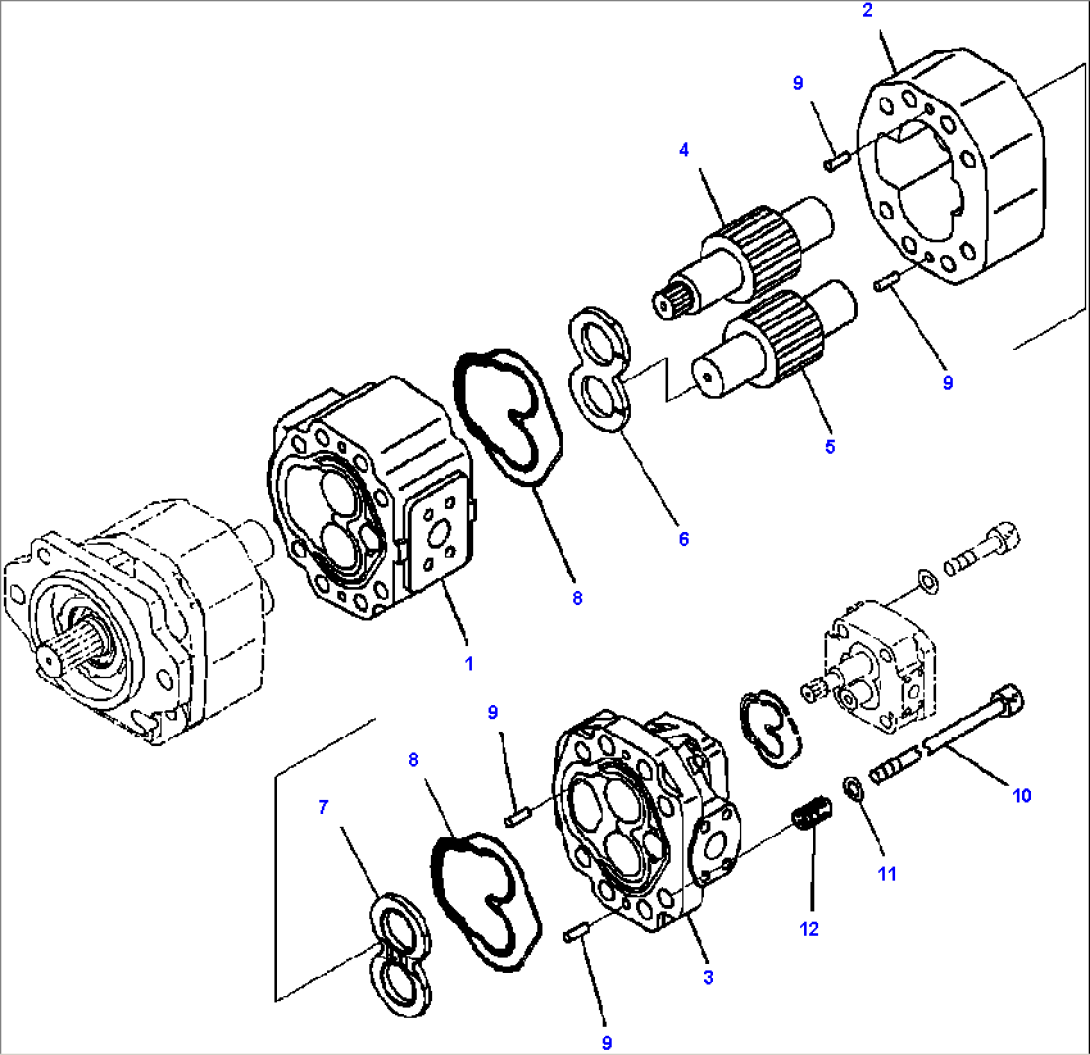

| PUMP ASSEMBLY (SEE FIG. H0210-01A1) | ||||
| (NSS) | CARRIER ASSEMBLY | |||
| 1 | 705-94-81220 | CARRIER | ||
| 705-94-80610 | BUSHING | |||
| 705-94-80620 | BUSHING | |||
| 2 | 705-94-40021 | CASE | ||
| 3 | 705-95-80330 | COVER ASSEMBLY | ||
| 705-94-80610 | BUSHING | |||
| 705-94-80620 | BUSHING | |||
| 4 | 705-94-40740 | GEAR, DRIVE | ||
| 5 | 705-94-40510 | GEAR, DRIVEN | ||
| 6 | 705-94-80711 | PLATE | ||
| 7 | 705-94-80721 | PLATE | ||
| 8 | 705-94-80770 | SEAL, RING | ||
| 9 | 04020-00820 | PIN, DOWEL | ||
| 10 | 705-94-84230 | BOLT | ||
| 11 | 01643-31445 | WASHER | ||
| 12 | 569-15-41310 | SLEEVE | ||
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY. |
