| Item | Part No. | Part Name | Qty | Serial No. |

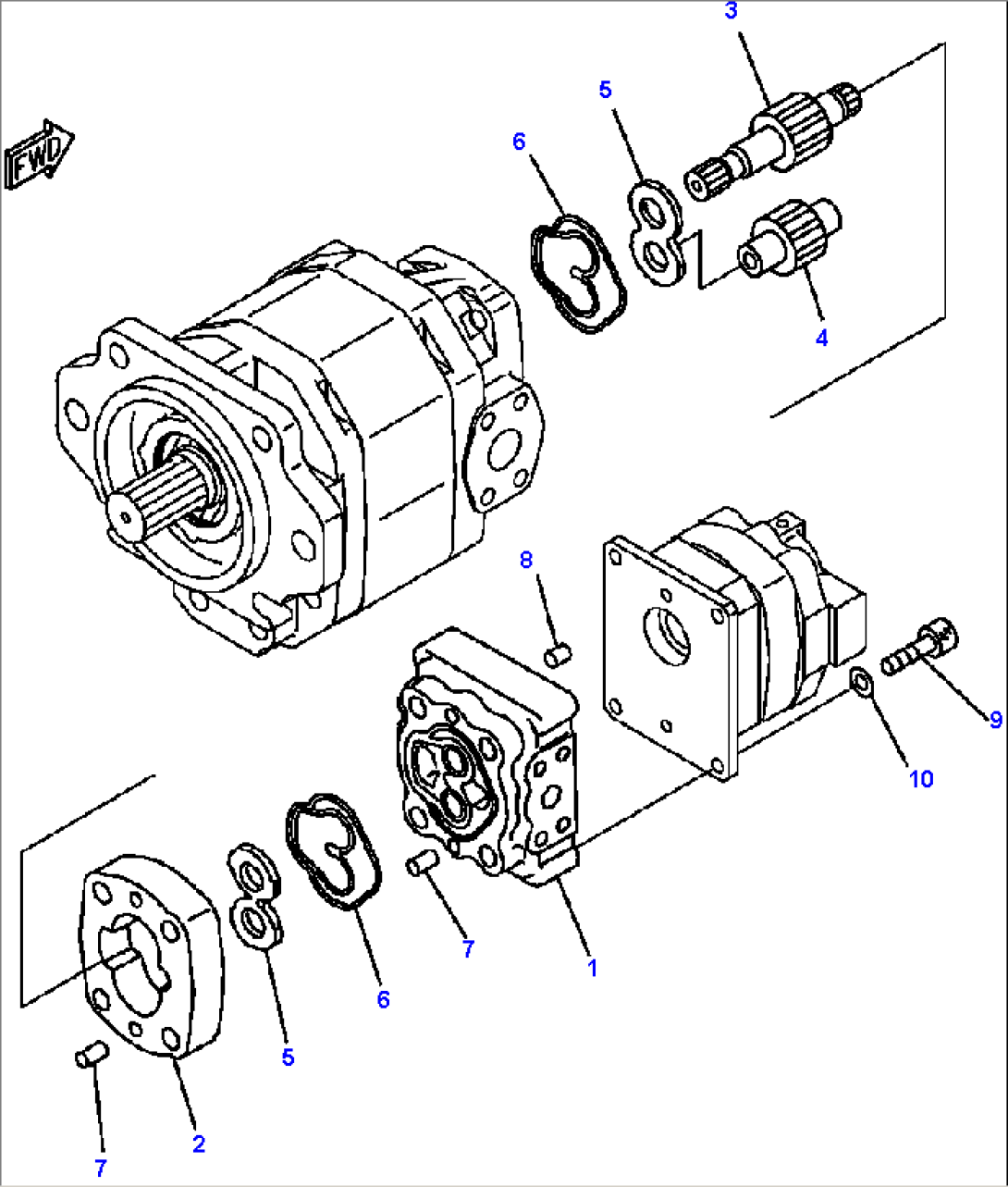

| PUMP ASSEMBLY (SEE FIG. H0210-01A4) | ||||
| 1 | 705-95-80311 | BRACKET ASSEMBLY | ||
| 705-94-80610 | BUSHING | |||
| 705-94-80620 | BUSHING | |||
| 2 | 705-40-24011 | CASE | ||
| 3 | 705-40-24840 | GEAR, DRIVE | ||
| 4 | 705-40-24511 | GEAR, DRIVEN | ||
| 5 | 705-40-83720 | PLATE | ||
| 6 | 705-94-80770 | SEAL, RING | ||
| 7 | 04020-00820 | PIN, DOWEL | ||
| 8 | 705-67-01230 | PIN, SNAP | ||
| 9 | 01252-70830 | BOLT | ||
| 10 | 01643-50823 | WASHER | ||
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY. |
