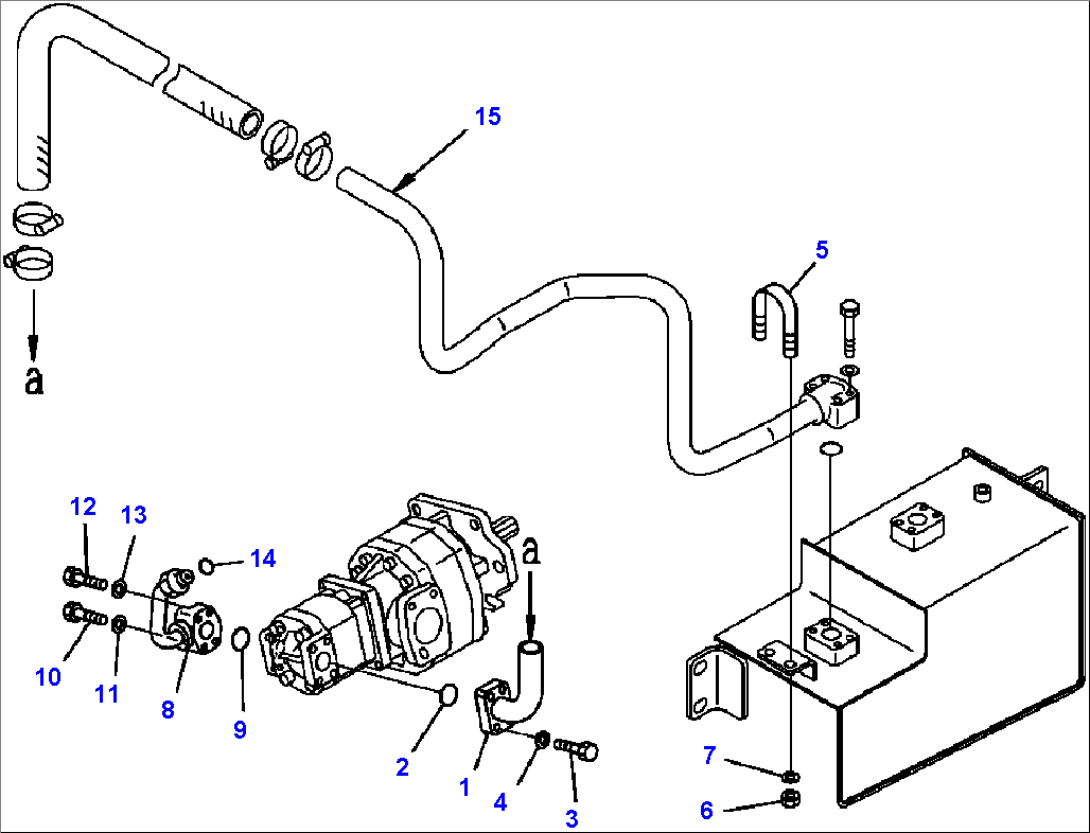

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-43-27520 | TUBE | A11001-- | |
| 2 | 07000-F3032 | O-RING | A11001-- | |
| 3 | 07372-21035 | BOLT | A11001-- | |
| 4 | 01643-51032 | WASHER | A11001-- | |
| 5 | 07283-33442 | CLIP, PIPE | A11001-- | |
| 6 | 01597-01009 | NUT | A11001-- | |
| 7 | 01643-31032 | WASHER | A11001-- | |
| 8 | 56B-61-22512 | TUBE | A11001-- | |
| 9 | 07000-F3030 | O-RING | A11001-- | |
| 10 | 01010-80855 | BOLT | A11001-- | |
| 11 | 01643-30823 | WASHER | A11001-- | |
| 12 | 01010-80845 | BOLT | A11001-- | |
| 13 | 01643-30823 | WASHER | A11001-- | |
| 14 | 02896-21015 | O-RING | A11001-- | |
| 15 | TUBE (SEE FIG. H3540-05A0 ) | A11001-- |
