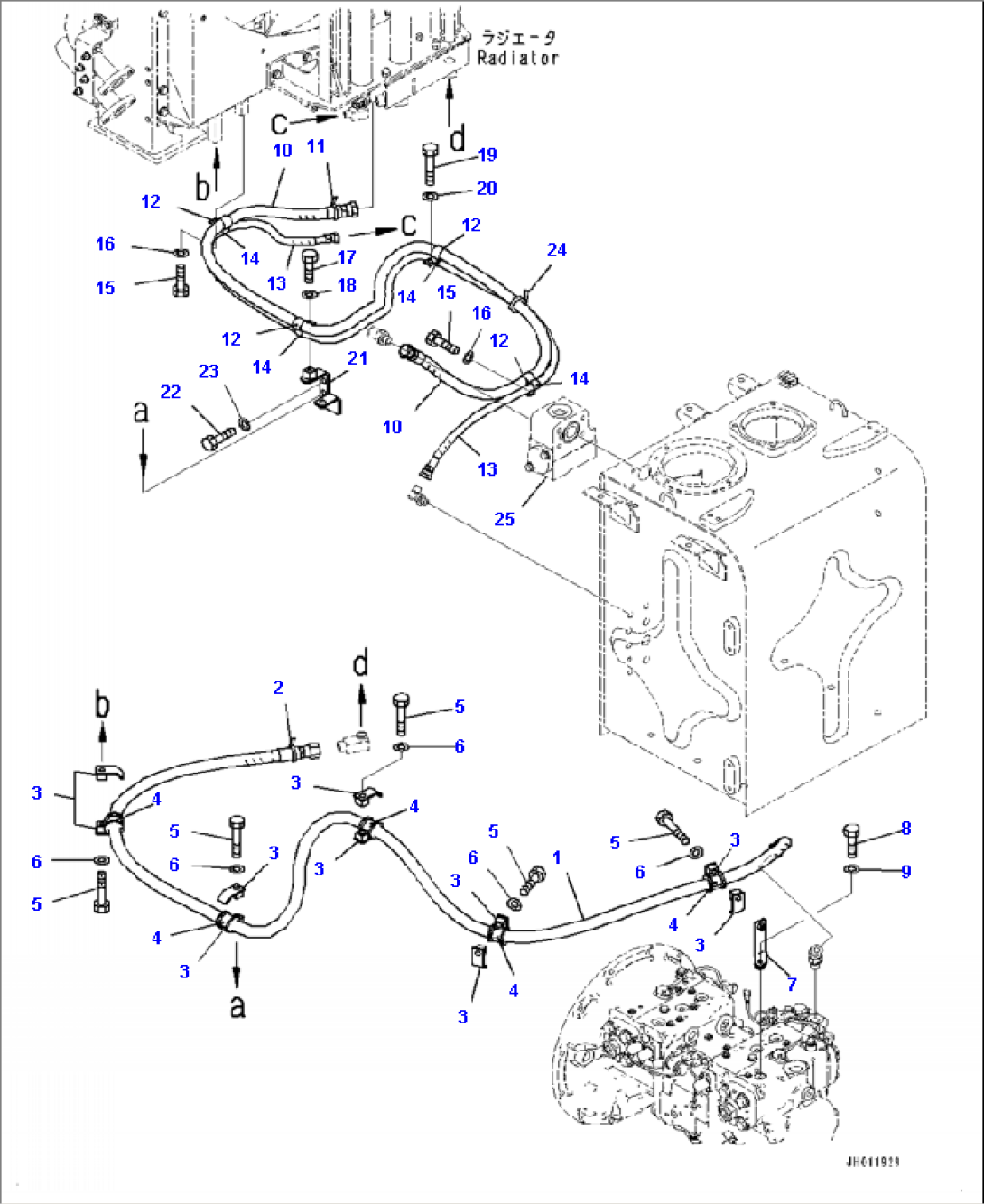

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-62-41172 | HOSE | ||
| 2 | 20Y-62-22790 | BAND, RED | ||
| 3 | 07094-10620 | CLAMP | ||
| 4 | 07095-00628 | CUSHION | ||
| 5 | 01010-81275 | BOLT | ||
| 6 | 01643-31232 | WASHER | ||
| 7 | 208-62-21590 | BRACKET | ||
| 8 | 01010-81235 | BOLT | ||
| 9 | 01643-31232 | WASHER | ||
| 10 | 208-62-21790 | HOSE | ||
| 11 | 20Y-62-22830 | BAND, WHITE | ||
| 12 | 04434-52712 | CLIP | ||
| 13 | 208-62-21840 | HOSE | ||
| 14 | 04434-52112 | CLIP | ||
| 15 | 01010-81225 | BOLT | ||
| 16 | 01643-31232 | WASHER | ||
| 17 | 01010-81225 | BOLT | ||
| 18 | 01643-31232 | WASHER | ||
| 19 | 01010-81290 | BOLT | ||
| 20 | 01643-31232 | WASHER | ||
| 21 | 208-62-41480 | BRACKET | ||
| 22 | 01010-81230 | BOLT | ||
| 23 | 01643-31232 | WASHER | ||
| 24 | 08034-20536 | BAND | ||
| 25 | BLOCK (SEE FIG. H0330-001001 ) |
