| Item | Part No. | Part Name | Qty | Serial No. |

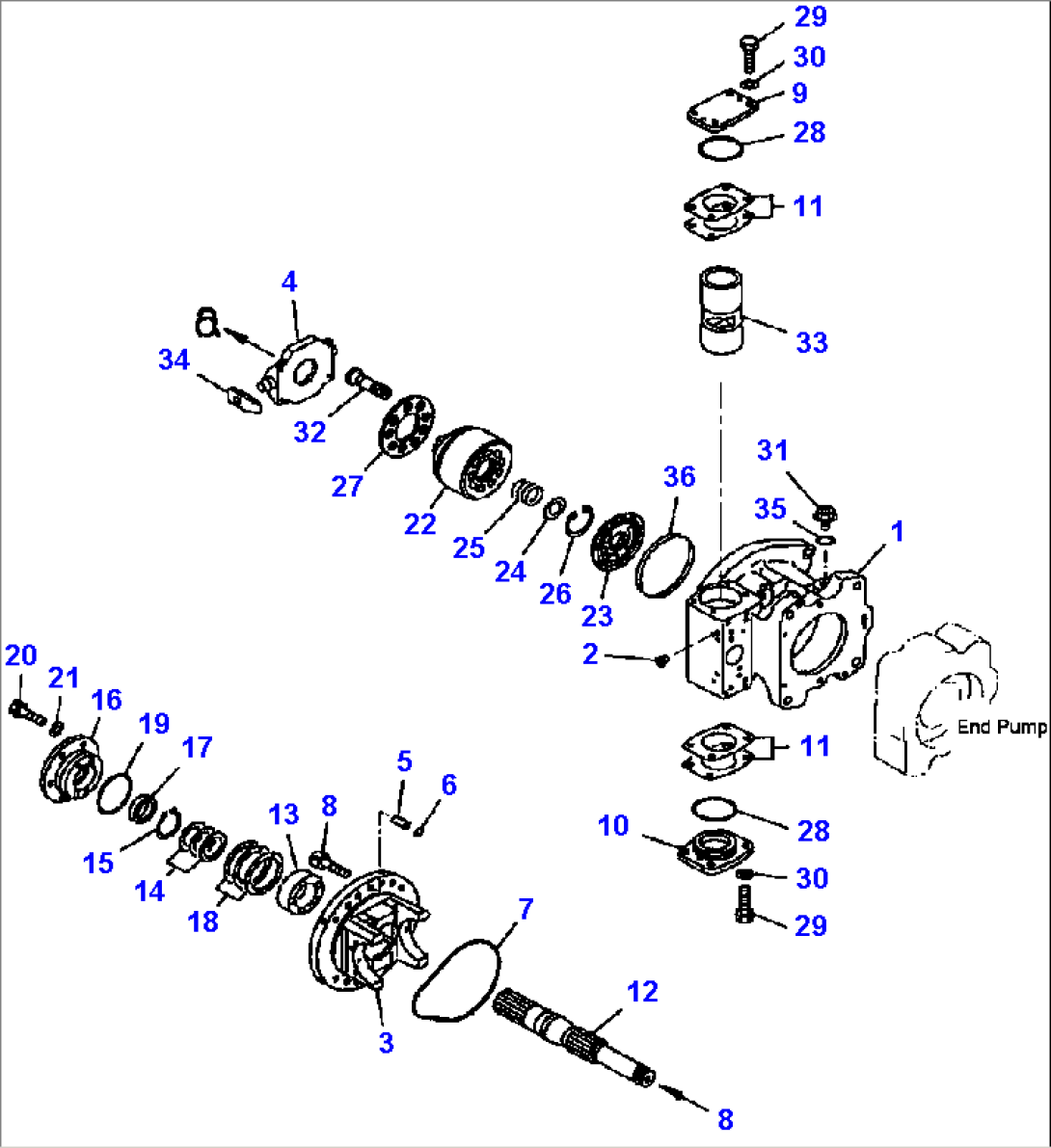

| PUMP ASSEMBLY (SEE FIG. H1601-01A1 ) | A50023-- | |||
| 708-4L-01930 | PUMP SUBASSEMBLY | A50023-- | ||
| 708-2L-05420 | CASE ASSEMBLY, FRONT | A50023-- | ||
| 1 | (NSS) | CASE, FRONT | A50023-- | |
| 2 | (NSS) | PLUG | A50023-- | |
| 3 | 708-2L-04380 | CRADLE, FRONT | A50023-- | |
| 4 | 708-2L-23460 | CAM, ROCKER | A50023-- | |
| 5 | 708-25-12330 | JOINT | A50023-- | |
| 6 | 07000-F2015 | O-RING | A50023-- | |
| 7 | 708-25-62361 | O-RING | A50023-- | |
| 8 | 708-25-12350 | BOLT | A50023-- | |
| 9 | 708-25-14140 | CAP | A50023-- | |
| 10 | 708-25-14150 | CAP | A50023-- | |
| 11 | 708-25-14160 | SHIM | A50023-- | |
| 708-25-14170 | SHIM | A50023-- | ||
| 708-25-14180 | SHIM | A50023-- | ||
| 708-25-14190 | SHIM | A50023-- | ||
| 12 | 708-2L-22411 | SHAFT, FRONT | A50023-- | |
| 13 | 708-2L-32150 | BEARING | A50023-- | |
| 14 | 708-2E-12160 | WASHER | A50023-- | |
| 14 | 708-2E-12170 | WASHER | A50023-- | |
| 14 | 708-2E-12180 | WASHER | A50023-- | |
| 14 | 708-2E-12190 | WASHER | A50023-- | |
| 15 | 708-25-12790 | RING, SNAP | A50023-- | |
| 16 | 708-25-12812 | HOUSING | A50023-- | |
| 17 | 708-25-52861 | SEAL, OIL | A50023-- | |
| 18 | 708-25-12940 | SHIM | A50023-- | |
| 18 | 708-25-12930 | SHIM | A50023-- | |
| 19 | 07000-E2080 | O-RING | A50023-- | |
| 20 | 01010-80820 | BOLT | A50023-- | |
| 21 | 01643-30823 | WASHER | A50023-- | |
| 708-2L-04141 | CYLINDER BLOCK ASSEMBLY | A50023-- | ||
| 22 | 708-2L-33110 | BLOCK, CYLINDER | A50023-- | |
| 23 | 708-2L-33211 | PLATE, VALVE | A50023-- | |
| 24 | 708-7L-13140 | WASHER | A50023-- | |
| 25 | 708-2L-33160 | SPRING | A50023-- | |
| 26 | 04065-04818 | RING, SNAP | A50023-- | |
| 27 | 708-2L-33340 | RETAINER, SHOE | A50023-- | |
| 28 | 07000-E2065 | O-RING | A50023-- | |
| 29 | 01016-51035 | BOLT | A50023-- | |
| 30 | 01643-31032 | WASHER | A50023-- | |
| 31 | 07044-12412 | PLUG | A50023-- | |
| 32 | 708-2L-33310 | PISTON SUBASSEMBLY | A50023-- | |
| 33 | 708-25-14112 | PISTON | A50023-- | |
| 34 | 708-2L-23351 | SLIDER | A50023-- | |
| 35 | 07002-22434 | O-RING | A50023-- | |
| 36 | 708-25-13630 | RING | A50023-- | |
| NI | 708-2L-23351 | GUIDE | A50023-- | |
| NI | 708-2L-23360 | PIN | A50023-- | |
| NI | 708-2L-23131 | SEAT | A50023-- | |
| F2 - VARIOUS THICKNESSES AVAILABLE TO PROPERLY POSITION BEARING | ||||
| F2 - VARIOUS THICKNESSES AVAILABLE TO PROPERLY POSITION BEARING |
