| Item | Part No. | Part Name | Qty | Serial No. |

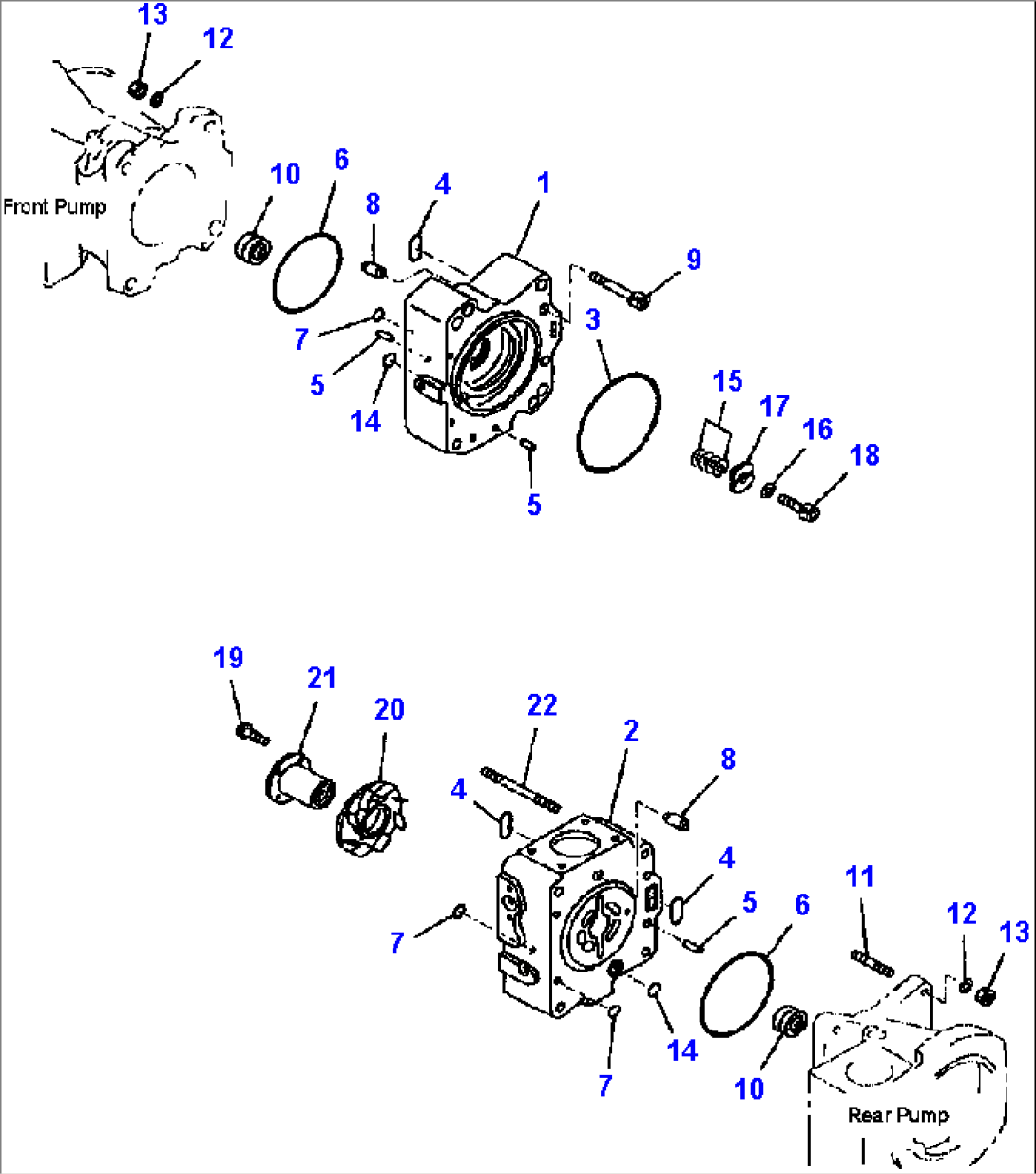

| PUMP ASSEMBLY (SEE FIG. H1602-01A1 ) | A50023-- | |||
| PUMP SUBASSEMBLY (SEE FIG. H1602-02A1 ) | A50023-- | |||
| 1 | (NSS) | CAP, END-FRONT | A50023-- | |
| 2 | (NSS) | CAP, END-REAR | A50023-- | |
| 3 | 07000-35165 | O-RING | A50023-- | |
| 4 | 07000-33032 | O-RING | A50023-- | |
| 5 | 720-68-19610 | PIN | A50023-- | |
| 6 | 07000-32135 | O-RING | A50023-- | |
| 7 | 07000-21009 | O-RING | A50023-- | |
| 8 | 6130-21-1910 | PIN, DOWEL | A50023-- | |
| 9 | 708-25-12530 | BOLT | A50023-- | |
| 10 | 708-2E-12260 | BEARING | A50023-- | |
| 11 | 01140-81645 | STUD | A50023-- | |
| 12 | 01643-31645 | WASHER | A50023-- | |
| 13 | 01582-01613 | NUT | A50023-- | |
| 14 | 07000-22015 | O-RING | A50023-- | |
| 15 | 708-25-12840 | SHIM | A50023-- | |
| 708-25-12850 | SHIM | A50023-- | ||
| 708-25-12860 | SHIM | A50023-- | ||
| 708-25-12870 | SHIM | A50023-- | ||
| 16 | 01643-31032 | WASHER | A50023-- | |
| 17 | 708-25-12950 | PLATE | A50023-- | |
| 18 | 706-74-40320 | BOLT | A50023-- | |
| 19 | 706-73-42270 | SCREW | A50023-- | |
| 20 | 708-25-12542 | IMPELLER | A50023-- | |
| 21 | 708-25-52550 | COUPLING | A50023-- | |
| 22 | 01141-81620 | STUD | A50023-- | |
| F1 - THICKNESSES AVAILABLE TO PROPERLY POSI TION THE IMPELLER |
