| Item | Part No. | Part Name | Qty | Serial No. |

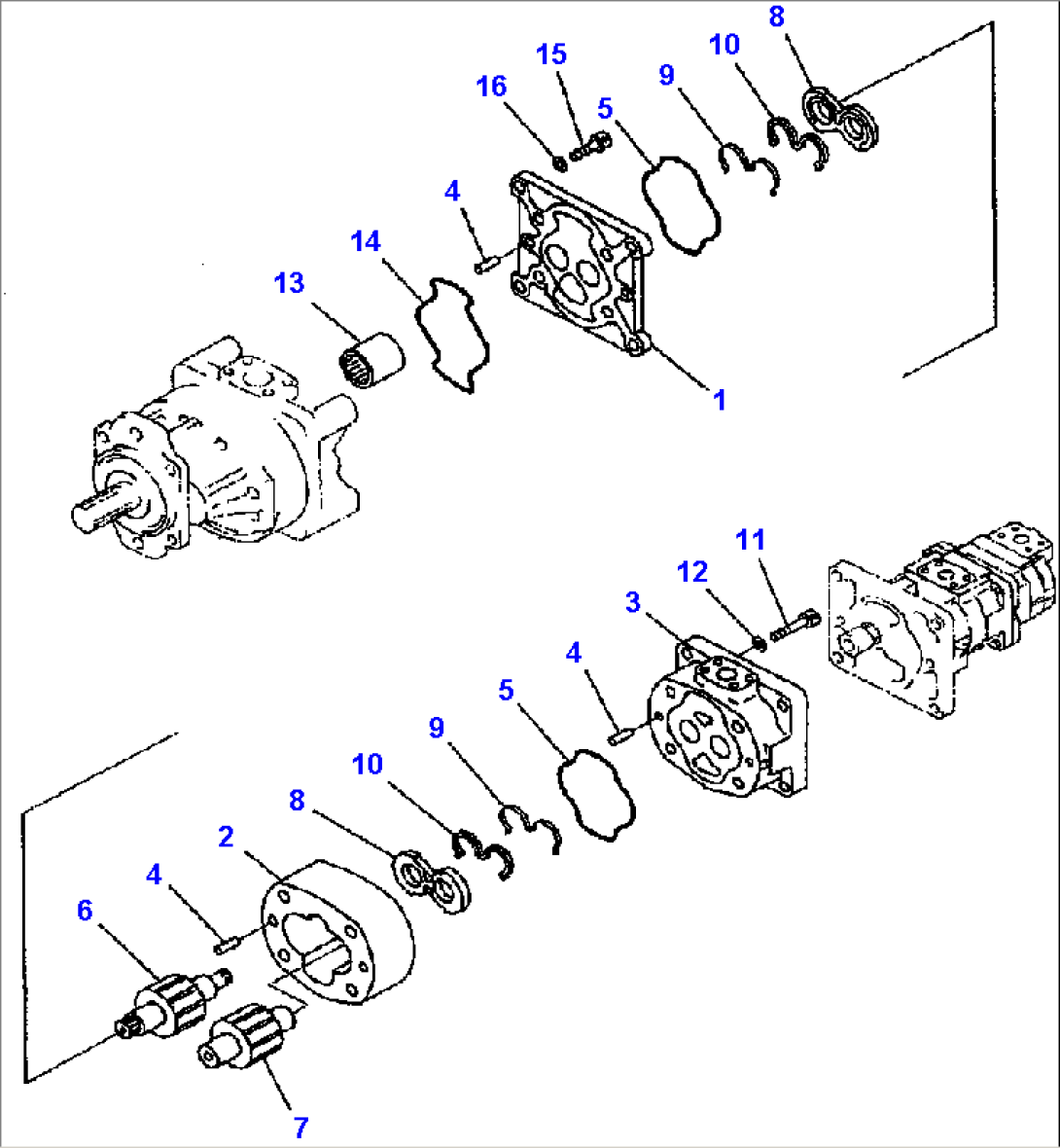

| PUMP ASSEMBLY (SEE FIG. H1610-01A0 ) | A50001-- | |||
| 705-32-40350 | PUMP ASSEMBLY, (SAR100) | A50001-- | ||
| 1 | 705-29-03620 | BRACKET | A50001-- | |
| 705-18-03350 | BUSHING, PLANE | A50001-- | ||
| 2 | 705-17-40010 | CASE, GEAR | A50001-- | |
| 3 | 705-18-03240 | CARRIER | A50001-- | |
| 705-18-03350 | BUSHING, PLANE | A50001-- | ||
| 4 | 04020-01228 | PIN, DOWEL | A50001-- | |
| 5 | 705-17-03380 | O-RING | A50001-- | |
| 6 | 705-29-40760 | GEAR, DRIVE | A50001-- | |
| 7 | 705-17-40810 | GEAR, DRIVEN | A50001-- | |
| 8 | 705-17-03610 | PLATE | A50001-- | |
| 9 | 705-17-03440 | RING, BACK-UP | A50001-- | |
| 10 | 705-17-03470 | SEAL, RING | A50001-- | |
| 11 | 705-17-03770 | BOLT | A50001-- | |
| 12 | 01643-51645 | WASHER | A50001-- | |
| 13 | 705-17-03330 | COUPLING | A50001-- | |
| 14 | 705-19-03480 | O-RING | A50001-- | |
| 15 | 705-19-03470 | BOLT | A50001-- | |
| 16 | 705-17-04980 | WASHER | A50001-- |
