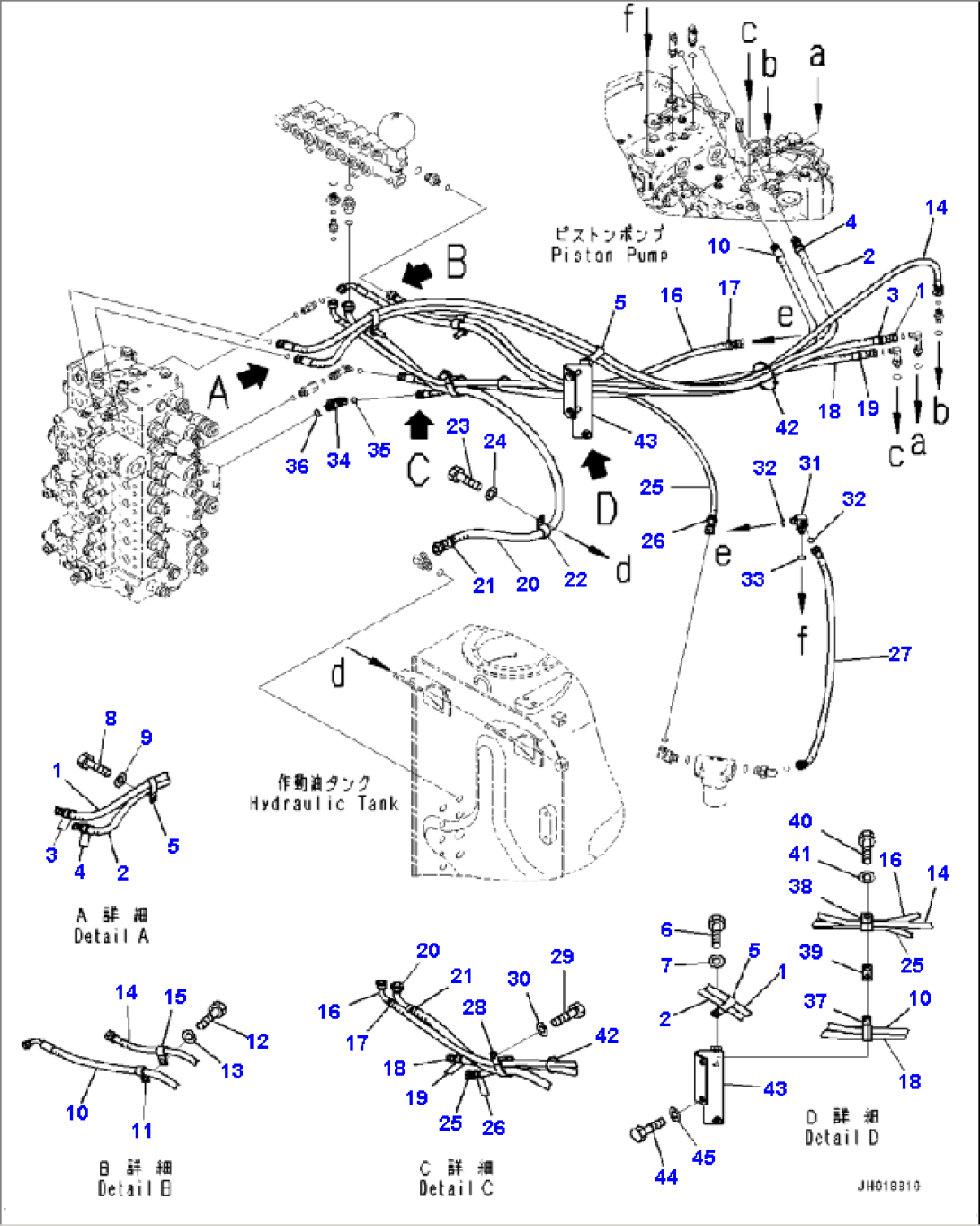

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-62-27650 | HOSE | ||
| 2 | 208-62-21121 | HOSE | ||
| 3 | 20Y-62-22790 | BAND, RED | ||
| 4 | 20Y-62-22850 | BAND, GREEN | ||
| 5 | 04435-51812 | CLIP | ||
| 6 | 01010-81225 | BOLT | ||
| 7 | 01643-31232 | WASHER | ||
| 8 | 01010-81235 | BOLT | ||
| 9 | 01643-31232 | WASHER | ||
| 10 | 208-62-27570 | HOSE ASSEMBLY | ||
| 11 | 04434-51812 | CLIP | ||
| 12 | 01010-81235 | BOLT | ||
| 13 | 01643-31232 | WASHER | ||
| 14 | 208-62-27610 | HOSE ASSEMBLY | ||
| 15 | 04434-51812 | CLIP | ||
| 16 | 208-62-27710 | HOSE | ||
| 17 | 20Y-62-22810 | BAND, YELLOW | ||
| 18 | 208-62-27690 | HOSE | ||
| 19 | 20Y-62-22830 | BAND, WHITE | ||
| 20 | 208-62-27720 | HOSE | ||
| 21 | 20Y-62-22820 | BAND, BLUE | ||
| 22 | 04434-52312 | CLIP | ||
| 23 | 01010-81225 | BOLT | ||
| 24 | 01643-31232 | WASHER | ||
| 25 | 208-62-27730 | HOSE | ||
| 26 | 20Y-62-22840 | BAND, BLACK | ||
| 27 | 02774-003A7 | HOSE | ||
| 28 | 20Y-62-17930 | CLIP | ||
| 29 | 01010-81225 | BOLT | ||
| 30 | 01643-31232 | WASHER | ||
| 31 | 21W-62-45140 | ELBOW | ||
| 32 | 02896-11009 | O-RING | ||
| 33 | 07002-11423 | O-RING | ||
| 34 | 02782-10313 | ELBOW | ||
| 35 | 02896-11009 | O-RING | ||
| 36 | 07002-11823 | O-RING | ||
| 37 | 04435-51812 | CLIP | ||
| 38 | 113-899-7950 | CLIP | ||
| 39 | 20Y-62-13450 | PLATE | ||
| 40 | 01010-81235 | BOLT | ||
| 41 | 01643-31232 | WASHER | ||
| 42 | 08034-20536 | BAND | ||
| 43 | 208-62-21250 | BRACKET | ||
| 44 | 01010-81235 | BOLT | ||
| 45 | 01643-31232 | WASHER |
