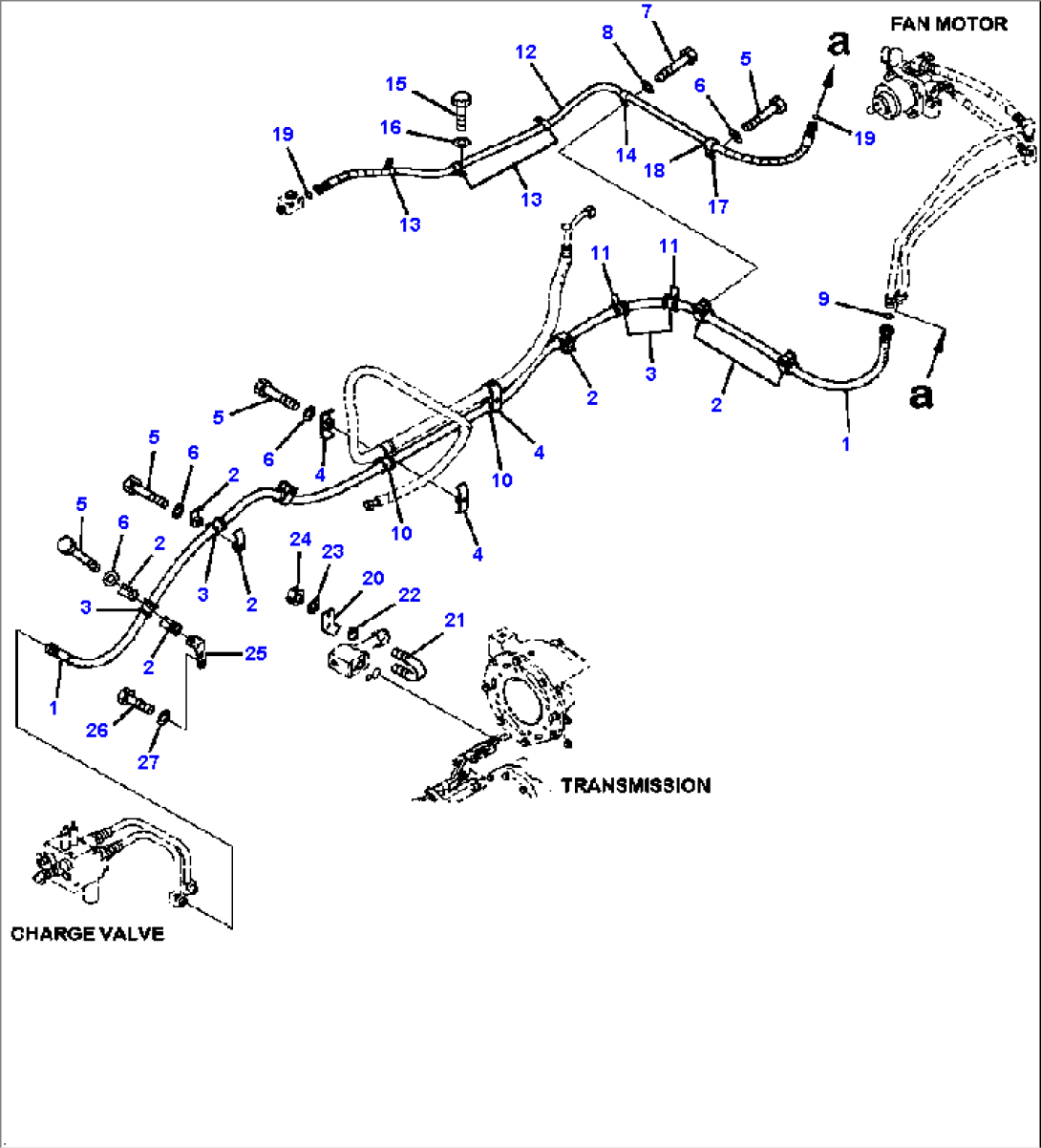

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-45810 | HOSE, 3850 MM | A45001-- | |
| 2 | 22P-62-13520 | CLAMP | A45001-- | |
| 3 | 07095-00524 | CUSHION | A45001-- | |
| 4 | 22P-62-13550 | CLAMP | A45001-- | |
| 5 | 01010-81265 | BOLT | A45001-- | |
| 6 | 01643-31232 | WASHER | A45001-- | |
| 7 | 01010-81270 | BOLT | A45001-- | |
| 8 | 01643-31232 | WASHER | A45001-- | |
| 9 | 02896-11015 | O-RING | A45001-- | |
| 10 | 07095-00524 | CUSHION | A45001-- | |
| 11 | 306 132 C1 | STRAP | A45001-- | |
| 12 | 421-62-41520 | HOSE, 2180 MM | A45001-- | |
| 13 | 04434-51912 | CLIP | A45001-- | |
| 14 | 04434-51912 | CLIP | A45001-- | |
| 15 | 01010-81020 | BOLT | A45001-- | |
| 16 | 01643-31032 | WASHER | A45001-- | |
| 17 | 04434-52712 | CLIP | A45001-- | |
| 18 | 07095-20419 | CUSHION | A45001-- | |
| 19 | 02896-11012 | O-RING | A45001-- | |
| 20 | 421-62-45680 | PLATE | A45001-- | |
| 21 | 07283-33450 | CLIP | A45001-- | |
| 22 | 07283-53444 | SEAT | A45001-- | |
| 23 | 01643-31032 | WASHER | A45001-- | |
| 24 | 01597-01009 | NUT | A45001-- | |
| 25 | 421-62-45690 | BRACKET | A45001-- | |
| 26 | 01010-81230 | BOLT | A45001-- | |
| 27 | 01643-31232 | WASHER | A45001-- |
