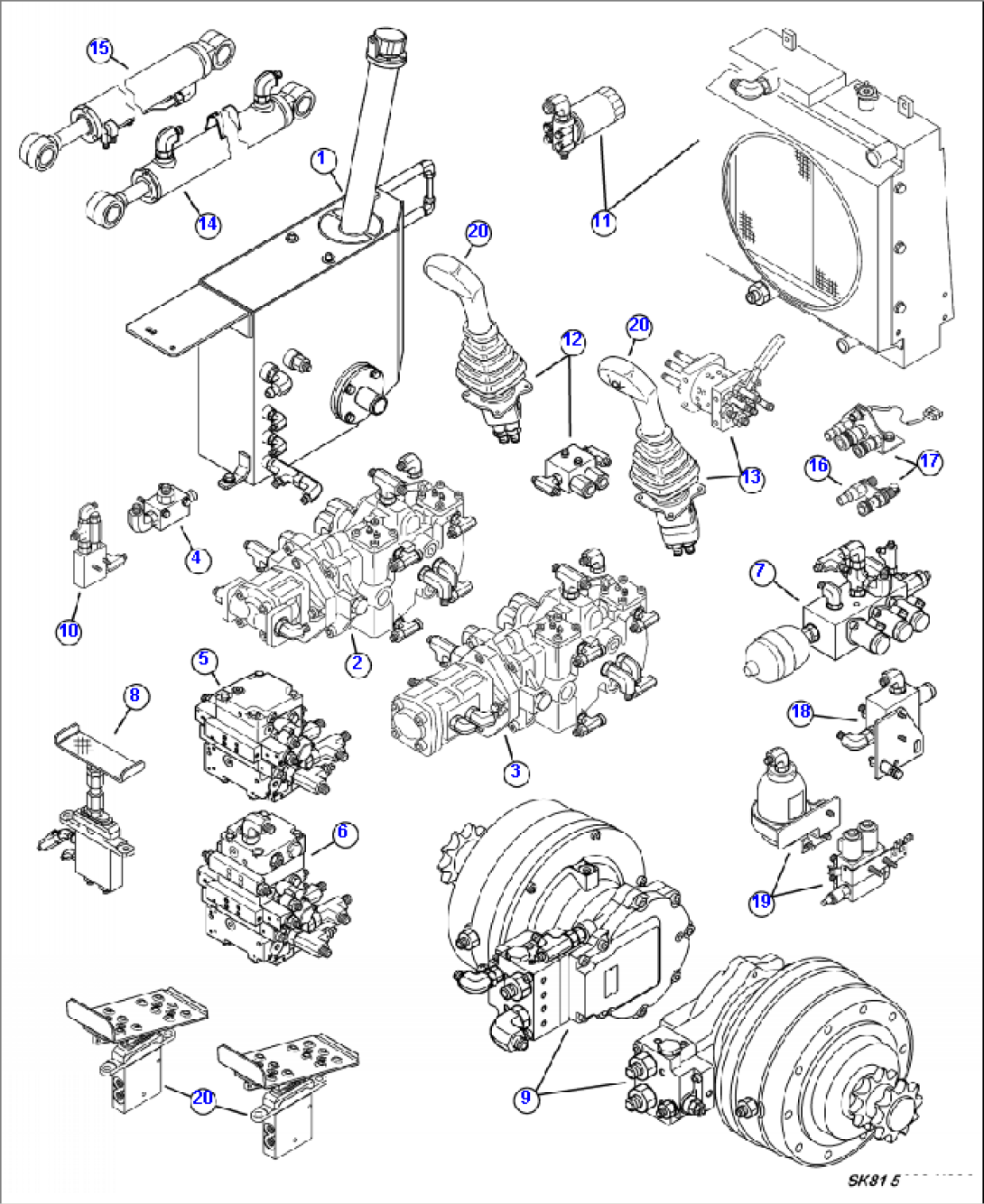

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | | TANK, OIL (SEE FIG. H3005-01A1) | | A80001-A80531- |
| 2 | | PUMP, STANDARD (SEE FIG. H3005-01A2 ) | | A80001-A80531- |
| 3 | | PUMP, SUPER FLOW (SEE FIG. H3005-01A3 ) | | A80001-A80531- |
| 4 | | BLOCK, SUCTION (SEE FIG. H3005-01A4) | | A80001-A80531- |
| 5 | | MAIN VALVE ST (SEE FIG. H3005-01A5 ) | | A80001-A80531- |
| 6 | | MAIN VALVE SF (SEE FIG. H3005-01A6 ) | | A80001-A80531- |
| 7 | | VALVE SOLENOID (SEE FIG. H3005-01A7) | | A80001-A80531- |
| 8 | | VALVE, FOOT (SEE FIG. H3005-01A8 ) | | A80001-A80531- |
| 9 | | FINAL DRIVE (SEE FIG. H3005-01A9 ) | | A80001-A80531- |
| 10 | | VALVE, BYPASS (SEE FIG. H3005-01A10) | | A80001-A80531- |
| 11 | | COOLER AND FILTER (SEE FIG. H3005-01A11) | | A80001-A80531- |
| 12 | | PPC VALVE (SEE FIG. H3005-01A12 ) | | A80001-A80531- |
| 13 | | PPC VALVE W/PC (SEE FIG. H3005-01A13 ) | | A80001-A80531- |
| 14 | | BOOM LINES (SEE FIG. H3005-01A14 ) | | A80001-A80531- |
| 15 | | BUCKET LINES (SEE FIG. H3005-01A15 ) | | A80001-A80531- |
| 16 | | QUICK CONNECT ST (SEE FIG. H3005-01A16) | | A80001-A80531- |
| 17 | | QUICK CONNECT SF (SEE FIG. H3005-01A17) | | A80001-A80531- |
| 18 | | SWITCH OVERRIDE (SEE FIG. H3005-01A18) | | A80001-A80531- |
| 19 | | LSS (SEE FIG. H3005-01A19) | | A80001-A80531- |
| 20 | | HAND AND FOOT (SEE FIG. H3005-01A20 ) | | A80001-A80531- |
