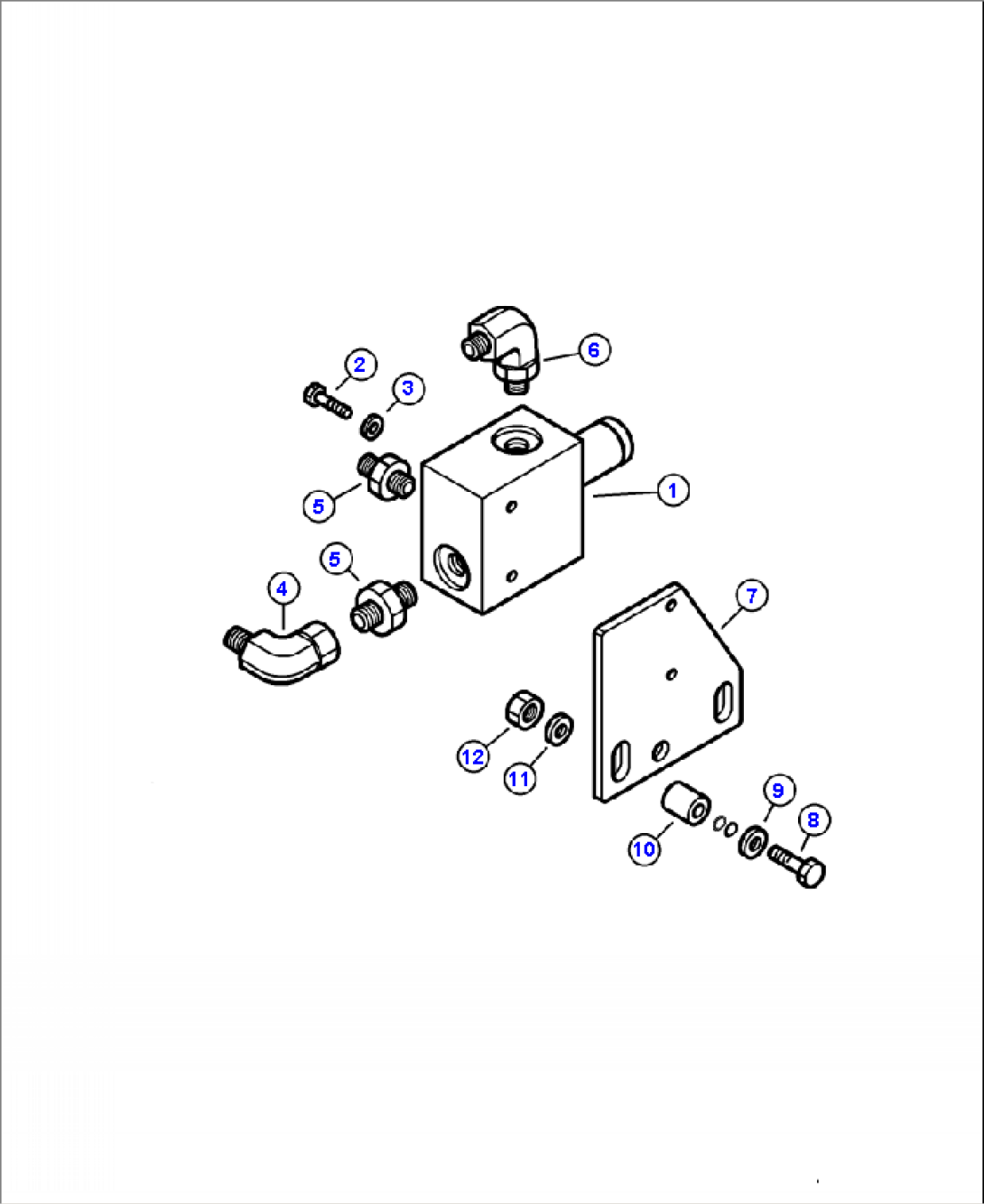

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SOLENOID VALVE (SEE FIG. H3031-01A01) | A60001-A60028- | ||
| 2 | 01010-80655 | BOLT | A60001-A60028- | |
| 3 | 01643-10623 | WASHER | A60001-A60028- | |
| 4 | 21D-09-55620 | ELBOW | A60001-A60028- | |
| 5 | 21D-09-51180 | UNION | A60001-A60028- | |
| 21D-09-69960 | O-RING | A60001-A60028- | ||
| 6 | 21D-09-51180 | UNION | A60001-A60028- | |
| 21D-09-69960 | O-RING | A60001-A60028- | ||
| 7 | 37A-970-1451 | BRACKET | A60001-A60028- | |
| 8 | 01016-50840 | BOLT | A60001-A60028- | |
| 9 | 01643-10823 | WASHER | A60001-A60028- | |
| 10 | 37A-54-11360 | SPACER | A60001-A60028- | |
| 11 | 37A-09-4A009 | WASHER | A60001-A60028- | |
| 12 | 21D-09-24180 | NUT | A60001-A60028- |
