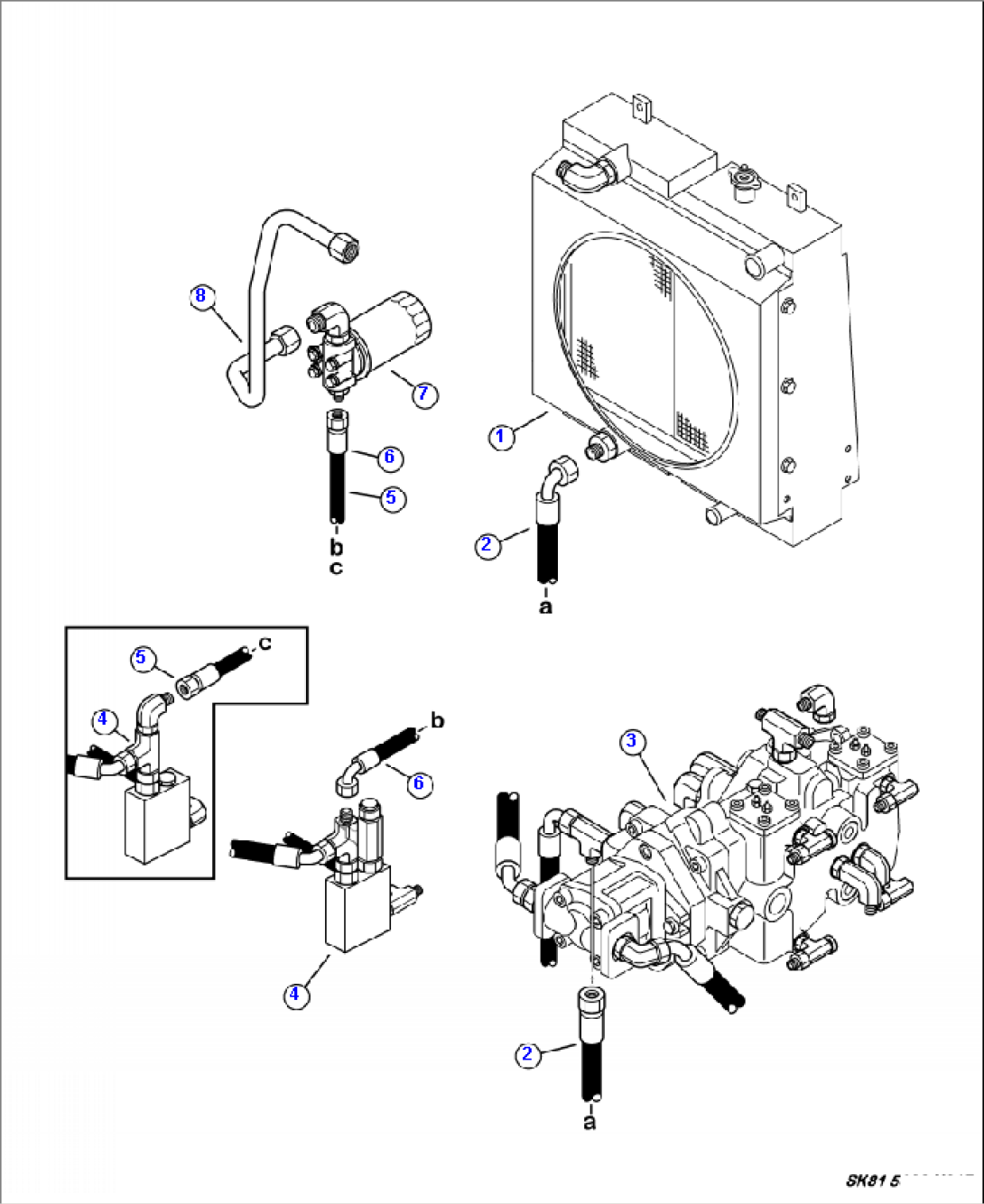

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | OIL COOLER (SEE FIG. H3005-1A11 ) | A40001-A40242- | ||
| 2 | 37A-62-12122 | HOSE, COOLER TO PUMP | A40001-A40242- | |
| 3 | PUMP, STANDARD (SEE FIG. H3005-1A02 ) | A40001-A40242- | ||
| 4 | VALVE, BY PASS (SEE FIG. H3005-1A10 ) | A40001-A40242- | ||
| 5 | 37A-62-13124 | HOSE, VALVE TO FILTER | ||
| 6 | 37A-62-13125 | HOSE, VALVE TO FILTER | ||
| 7 | OIL FILTER (SEE FIG. H3005-1A11 ) | A40001-A40242- | ||
| 8 | 37A-62-13190 | TUBE, FILTER TO COOLER | A40001-A40242- | |
| F1 - A40001-A40012, A40014-A40069 | ||||
| F2 - A40013, A40070-A40242 |
