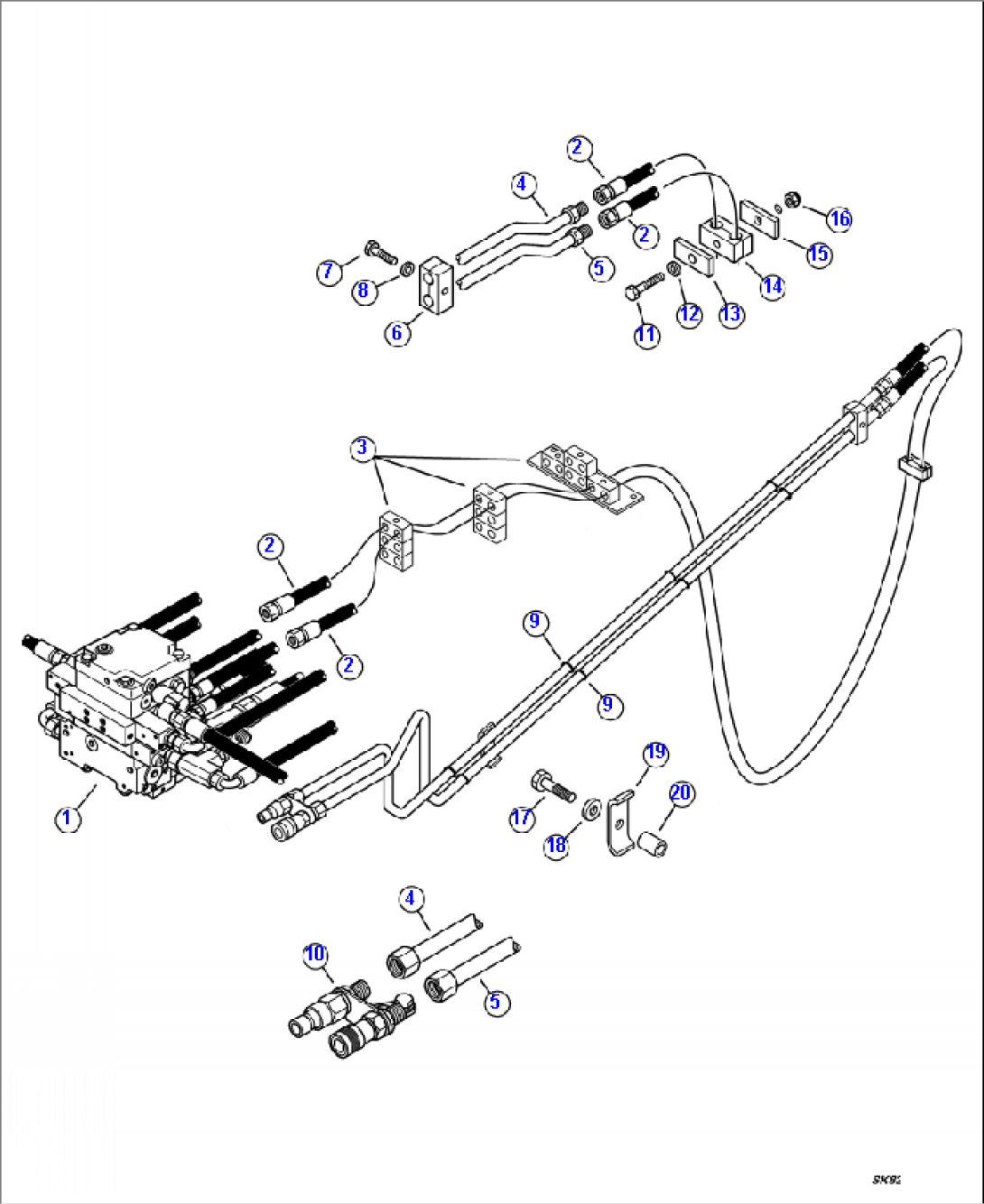

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VALVE, STANDARD (SEE FIG. H3005-1A02 ) | A40001-A40242- | ||
| 2 | 37B-62-15210 | HOSE, TO BOOM | A40001-A40242- | |
| 3 | CLAMPAGE (SEE FIG. H3029-1A00) | A40001-A40242- | ||
| 4 | 37B-970-1241 | TUBE, INNER QD | A40001-A40242- | |
| 02896-11012 | O-RING | A40001-A40242- | ||
| 5 | 37B-970-1251 | TUBE, OUTER QD | A40001-A40242- | |
| 02896-11012 | O-RING | A40001-A40242- | ||
| 6 | 37B-70-17330 | CLAMP, HOSE | A40001-A40242- | |
| 7 | 01010-80845 | BOLT | A40001-A40242- | |
| 8 | 01643-10823 | WASHER | A40001-A40242- | |
| 9 | 37A-70-11410 | SEAL | A40001-A40242- | |
| 10 | LEFT DISCONNECT (SEE FIG. H3029-1A00) | A40001-A40242- | ||
| 11 | 01010-80875 | BOLT | A40001-A40242- | |
| 12 | 01643-10823 | WASHER | A40001-A40242- | |
| 13 | 42N-62-16950 | PLATE, CLAMP | A40001-A40242- | |
| 14 | 21W-09-R1380 | CLAMP, HALF | A40001-A40242- | |
| 15 | 37B-70-17340 | PLATE, CLAMP | A40001-A40242- | |
| 16 | 21D-09-24180 | NUT | A40001-A40242- | |
| 17 | 01010-80840 | BOLT | A40001-A40242- | |
| 18 | 01643-10823 | WASHER | A40001-A40242- | |
| 19 | 500-15-3465 | CLAMP, TUBE | A40001-A40242- | |
| 20 | 37A-70-11290 | SPACER | A40001-A40242- |
