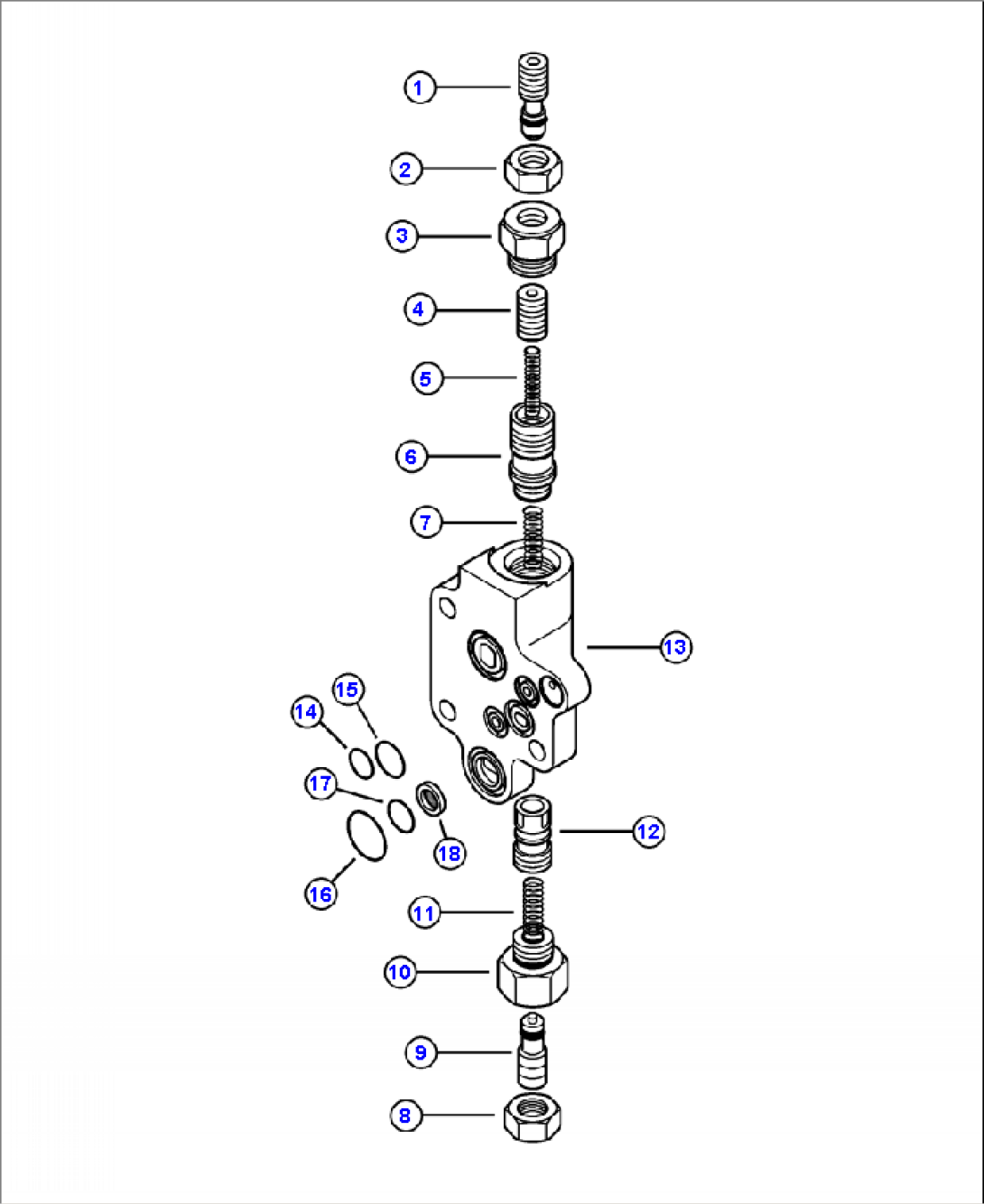

| Item | Part No. | Part Name | Qty | Serial No. |
| MAIN PUMP (SEE FIG. H3015-01A00A) | A60001-A60027- | |||
| MAIN PUMP (SEE FIG. H3015-01A00B) | A60028- | |||
| 720-2T-03420 | VALVE, MAIN | A60001-A60028- | ||
| 1 | 720-2T-16081 | STUD, ADJUSTMENT | A60001-A60028- | |
| 07000-11008 | O-RING | A60001-A60028- | ||
| 2 | 01583-11408 | NUT | A60001-A60028- | |
| 3 | 720-2T-16070 | PLUG, STUD | A60001-A60028- | |
| 07002-12434 | O-RING | A60001-A60028- | ||
| 4 | 720-2T-16040 | PISTON | A60001-A60028- | |
| 5 | 887-0073-652 | SPRING | A60001-A60027- | |
| 5 | 720-2T-16140 | SPRING | A60028- | |
| 6 | 720-2T-16031 | SPOOL | A60001-A60028- | |
| 7 | 720-2T-16121 | SPRING | A60001-A60028- | |
| 8 | 01583-11408 | NUT | A60001-A60028- | |
| 9 | 720-2T-16050 | STUD, ADJUSTMENT | A60001-A60028- | |
| 07000-11008 | O-RING | A60001-A60028- | ||
| 10 | 720-2T-16060 | PLUG, STUD | A60001-A60028- | |
| 07002-12034 | O-RING | A60001-A60028- | ||
| 11 | 720-2T-16111 | SPRING | A60001-A60028- | |
| 12 | 720-2T-16021 | SPOOL | A60001-A60028- | |
| 13 | 720-2T-16013 | HOUSING | A60001-A60028- | |
| 14 | 07000-12012 | O-RING | A60001-A60028- | |
| 15 | 07000-12016 | O-RING | A60001-A60028- | |
| 16 | 07000-12022 | O-RING | A60001-A60028- | |
| 17 | 702-2T-53680 | O-RING | A60001-A60028- | |
| 18 | 702-2T-53120 | FILTER, IN LINE RETURN | A60001-A60028- | |
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY. |
